Nema 23 Non-captive 56mm Stack 2A Lead 2mm(0.07874") Length 300mm

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 23N22S2004AJ2-300RS
Gross Weight: 2.50kg
Certificated: ISO, CE, RoHS

Sold: 95

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

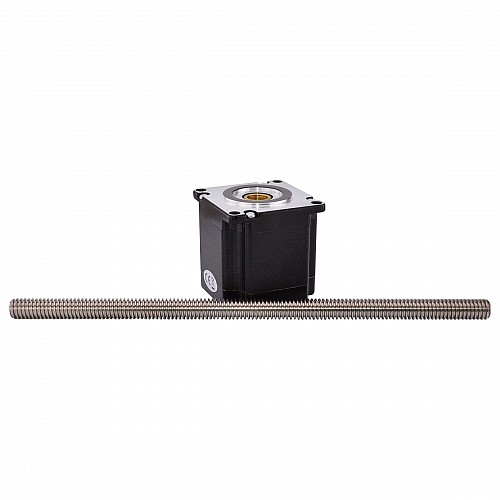

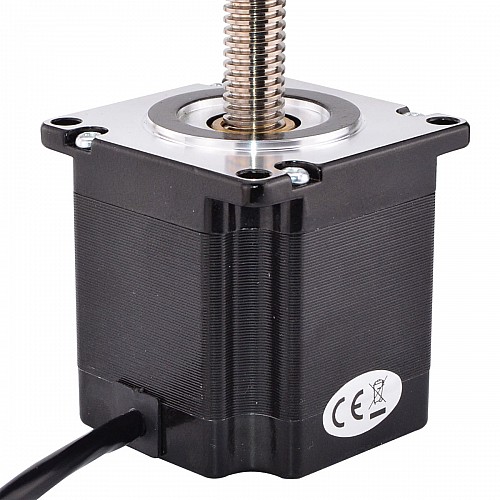

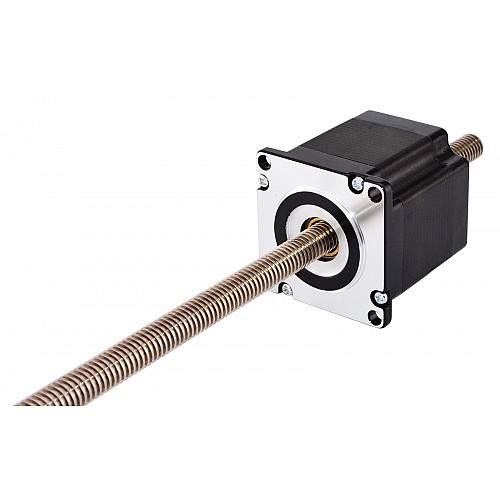

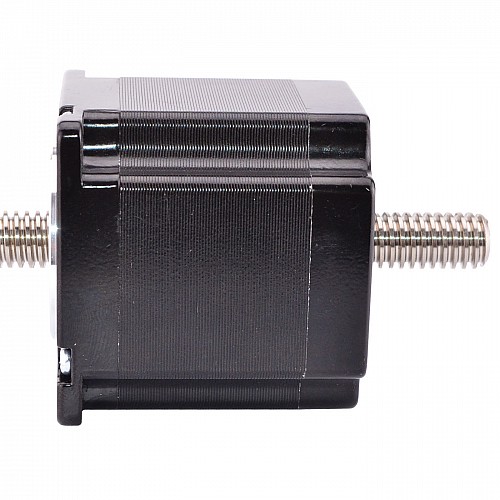

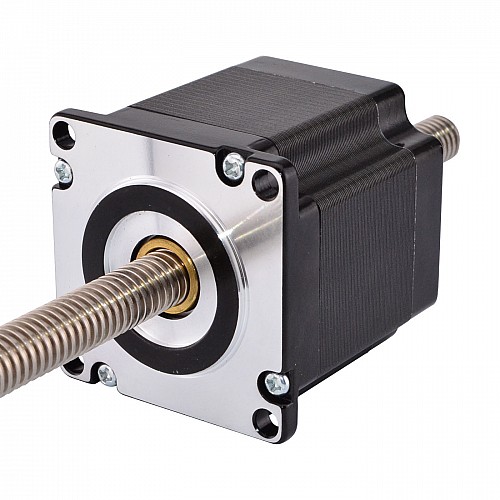

This model is economy linear stepper motor which named Nema 23 non captive linear actuator, it was composed of 56mm 2A Nema 23 stepper motor and 300mm length Tr11x2 linear screw.

Electrical Specification

Manufacturer Part Number: 23N22S2004AJ2-300RS(23N22S2004AJ-300RS)
Motor Type: Non Captive Linear Stepper
Holding Torque: 1.2Nm(169.93oz.in)Rated Current/phase: 2.0A
Phase Resistance: 3.6ohms
Voltage: 7.2V
Inductance: 12mH ± 20%(1KHz)

Physical Specification

Frame Size: 57 x 57mm
Motor Length: 56mm
Lead Screw Length: 300mm(11.811")
Lead Screw Diameter: Φ11mm(0.433")
Lead/Step: 0.01mm(0.0003937")
Lead/Revolution: 2mm(0.0787")
Number of Leads: 4
Cable Length: 500mm
Weight: 650g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 23N22S2004AJ4-300RS.

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	120
Inductance(mH)	12
Phase Resistance(ohms)	3.6
Rated Current(A)	2.0
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	56
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
Lead Screw Diameter(mm)	11
Lead Screw Length(mm)	300
Lead Travel/Revolution(mm)	2
Lead Travel/Step(mm)	0.01
Linear Motor Type	Non-Captive
No. of Lead	4
