Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874") Length 250mm

Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline CA
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline CA
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline CA
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline CA
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline CA
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline CA
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline CA
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline CA
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline CA
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline CA
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline CA
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874) Length 250mm - 23N22S2004AJ4-250RS | StepperOnline CA
23N22S2004AJ4-250RS
Rated Current(A)2.0
Phase Resistance(ohms)3.6
Lead Travel/Revolution(mm)2
Lead Travel/Step(mm)0.01
Question

Downloads

23N22S2004AJ4-250RS_Full_Datasheet.pdfPDF · 52.04KB
Same series
ModelRated Current(A)Phase Resistance(ohms)Lead Travel/Revolution(mm)Lead Travel/Step(mm)PriceStock
11N13S0424ED5-150RS0.4211.90.6350.003175C$53.45In stock
11N13S0424HD3-150RS-SALE0.4211.45.080.0254C$82.10In stock
11N13S0754AA4-100RS0.753.220.01C$35.00In stock
11N13S0754QE2-100RS0.753.24.8770.024384C$46.11In stock
11N13S0754QE4-150RS0.753.24.8770.024384C$47.37In stock
11N13S1004FD5-200RS1.02.11.270.00635C$50.47In stock
11N13S1004GD5-200RS1.02.12.540.0127C$50.47In stock
11N13S1004HD5-200RS1.02.15.080.0254C$50.47In stock
11N18S0754FD3-250RS0.756.71.270.00635C$125.90In stock
11N18S0754GD3-250RS0.756.72.540.0127C$125.90In stock
11N18S0754HD3-250RS0.756.75.080.0254C$125.90In stock
11N18S1004ED5-250RS1.03.70.6350.003175C$56.42In stock
11N18S1004FD5-200RS1.03.71.270.00635C$53.45Backorder
11N18S1004GD5-200RS1.03.72.540.0127C$53.45In stock
11N18S1004HD5-200RS1.03.75.080.0254C$53.45Backorder
11N18S1004ND5-200RS1.03.710.160.0508C$53.45Backorder
14N13S1504GF5-200RS1.50.952.540.0127C$47.50In stock
14N17S0914LF3-250RS0.915.50.7940.00396875C$125.90Backorder
14N17S0914QE3-250RS-SALE0.915.54.8770.024384C$98.41In stock
14N19S1504FF5-200RS1.51.51.270.00635C$50.47In stock
14N19S1504GF5-200RS1.51.52.540.0127C$50.47In stock
14N19S1504RF5-200RS-SALE1.51.56.350.03175C$45.31In stock
14N19S1504WF5-200RS-SALE1.51.512.70.0635C$45.31In stock
17N13S0404AF4-100RS0.43020.01C$40.92In stock
17N13S0404AF4-150RS0.43020.01C$44.33In stock
17N13S0404MB4-320RS0.43080.04C$33.77In stock
17N13S0704JE2-150RS0.77.22.43840.012192C$97.53In stock
17N13S0844AF4-200RS0.845.7520.01C$44.33In stock
17N13S1504FF5-200RS1.51.71.270.00635C$46.02In stock
17N13S1504GF5-200RS1.51.72.540.0127C$46.02Backorder
View all in category
Nema 23 Non-captive 56mm Stack 2.0A Lead 2mm(0.07874") Length 250mm
This model is an economy linear stepper motor named Nema 23 non captive linear actuator, which consi... Read More
0 reviews • Write a review
from
C$57.67
5 + C$55.29
10 + C$53.10
50 + C$51.07
100 + C$49.20

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

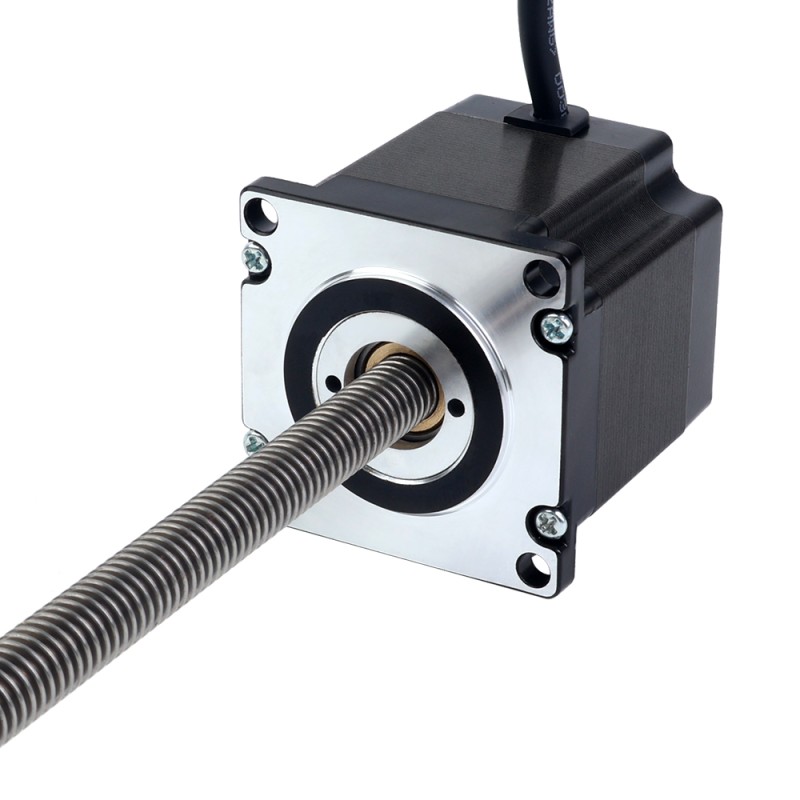

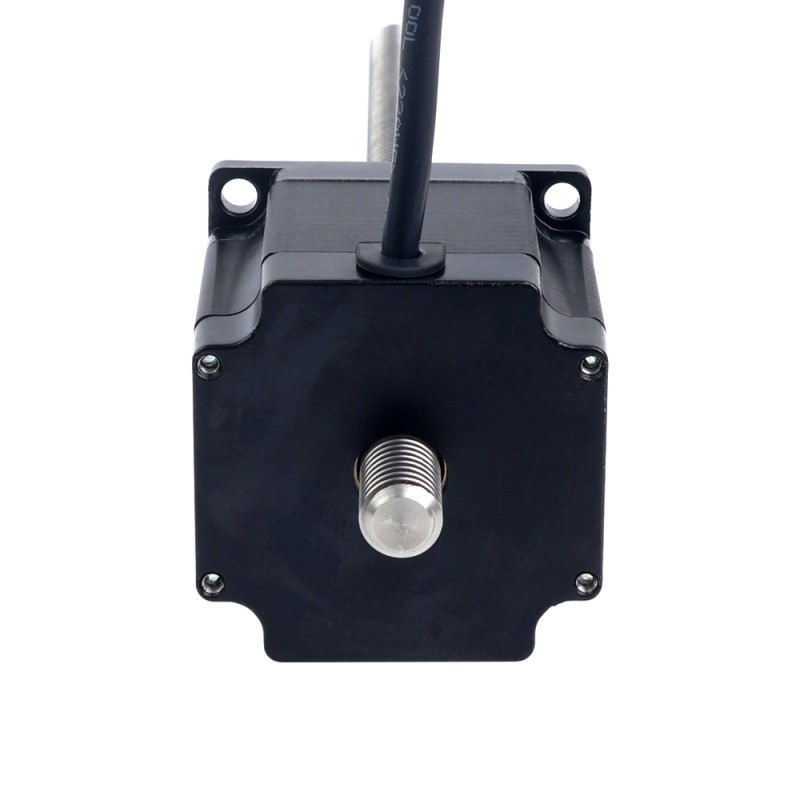

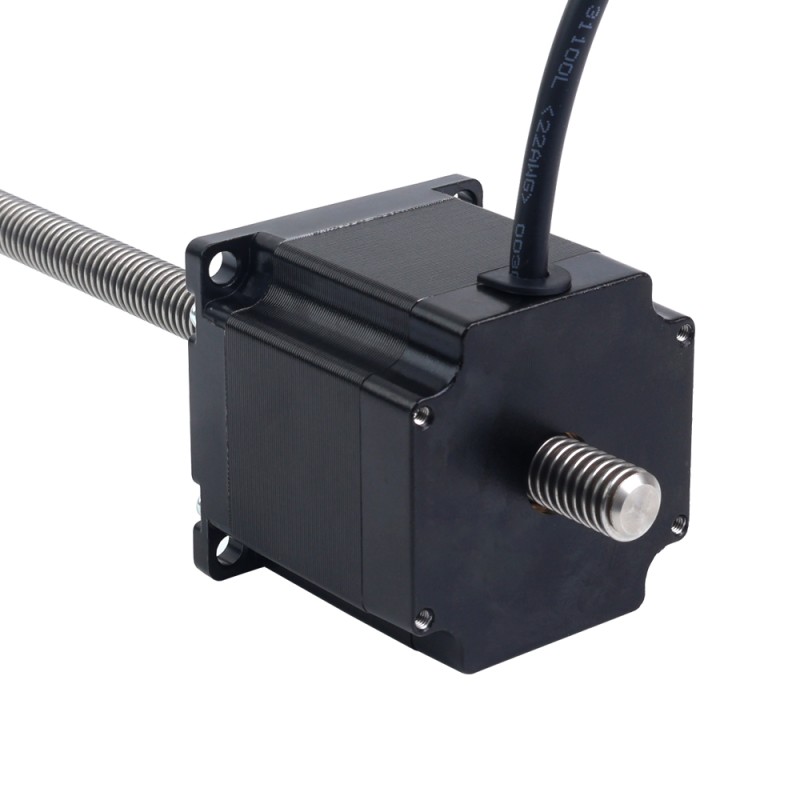

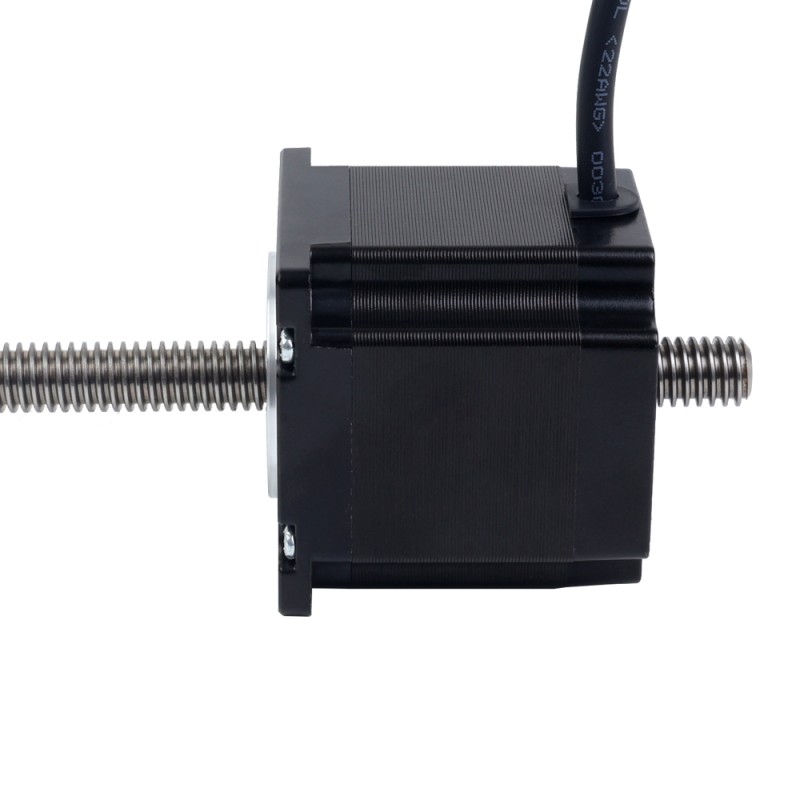

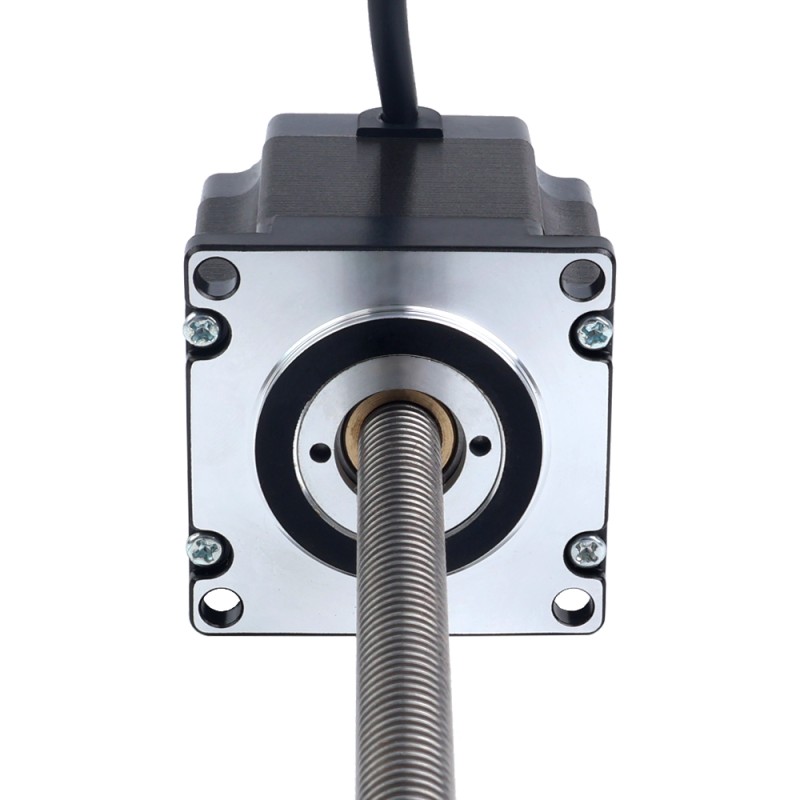

This model is an economy linear stepper motor named Nema 23 non captive linear actuator, which consists of a 56mm 2.0A Nema 23 stepper motor and a 250mm length Tr11x2 linear screw.

Electrical Specification

  • Manufacturer Part Number: 23N22S2004AJ4-250RS
  • Motor Type: Non Captive Linear Stepper
  • Holding Torque: 1.2Nm(169.93oz.in)
  • Rated Current/phase: 2.0A
  • Phase Resistance: 3.60ohms±10%
  • Inductance: 12mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Motor Length: 56mm

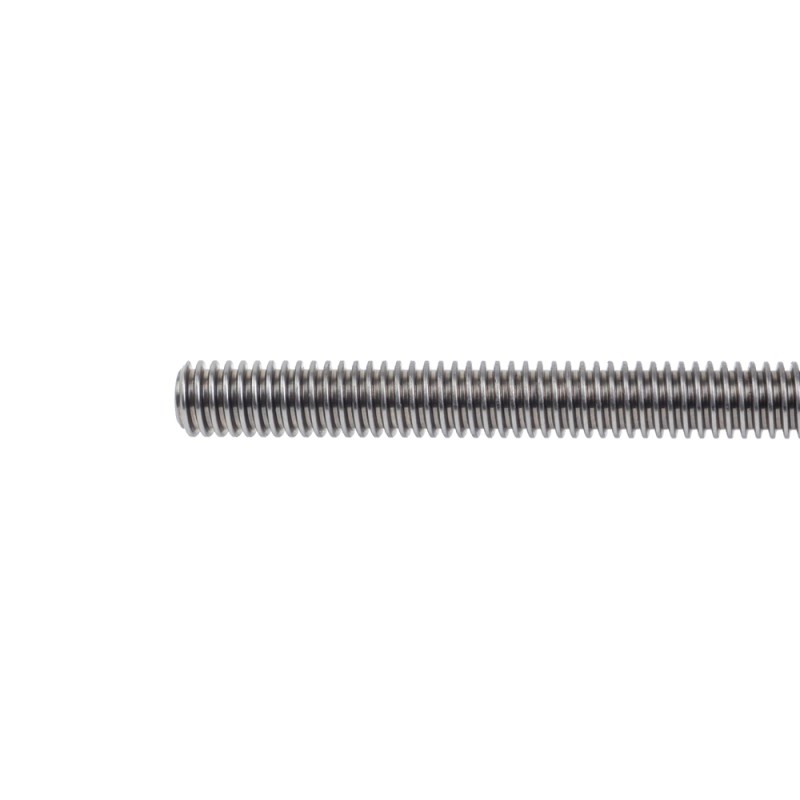

  • Lead Screw Length: 250mm(9.8425")
  • Lead Screw Diameter: Φ11mm(0.433")
  • Lead/Step: 0.01mm(0.0003937")
  • Lead/Revolution: 2mm(0.0787")
  • Number of Leads: 4
  • Cable Length: 500mm
  • Weight: 824g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? No
Holding Torque(Ncm) 120
Inductance(mH) 12
Phase Resistance(ohms) 3.6
Rated Current(A) 2.0
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 56
Frame Size(mm) Nema 23 (57 x 57)
IP Rating 40
Lead Length(mm) 500
Lead Screw Diameter(mm) 11
Lead Screw Length(mm) 250
Lead Travel/Revolution(mm) 2
Lead Travel/Step(mm) 0.01
Linear Motor Type Non-Captive
No. of Lead 4
