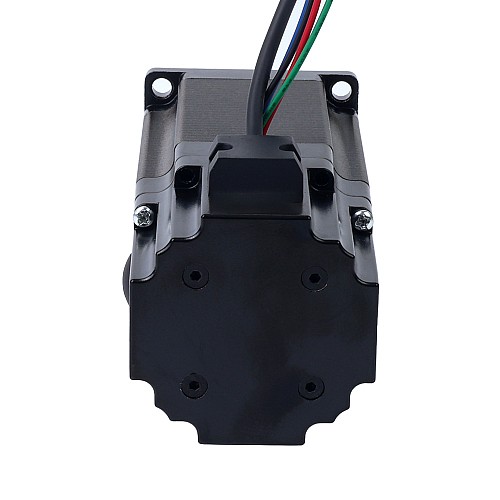

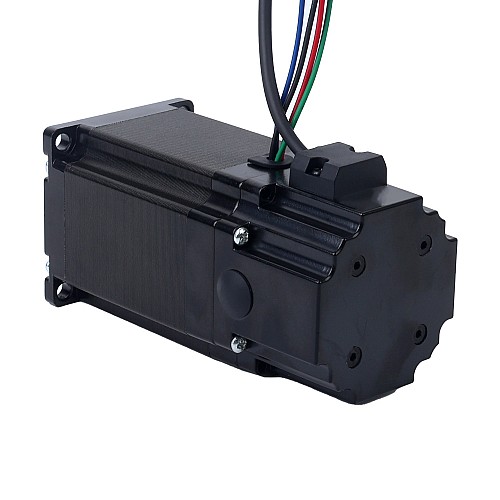

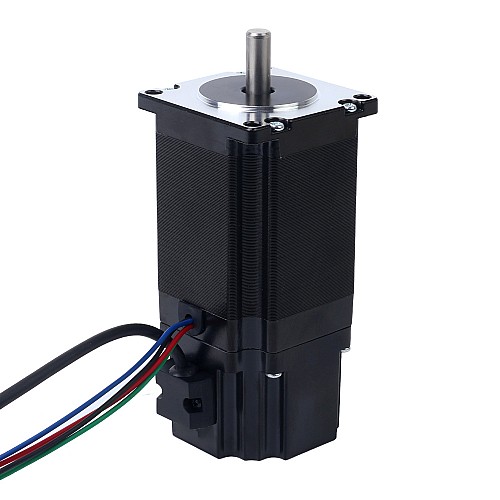

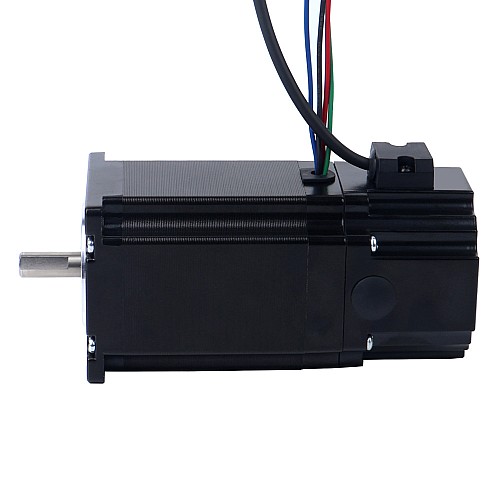

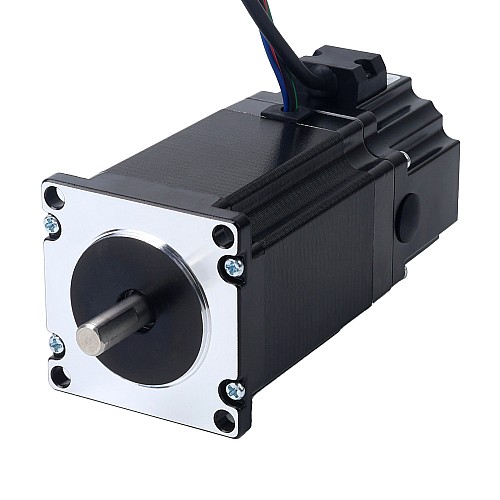

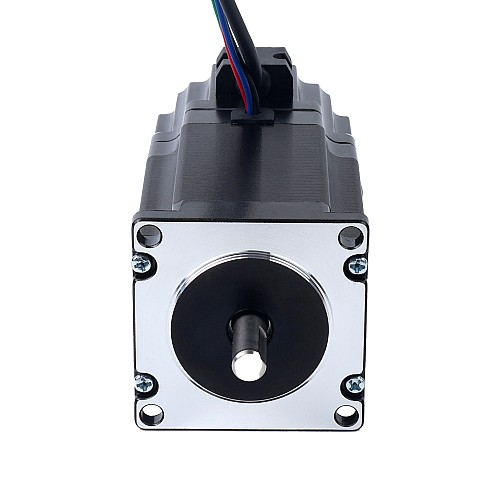

Nema 23 Stepper Motor 2.0Nm(283.22oz.in) with 24V 4.5W Electromagnetic Brake

0 reviews - Write a review

C$60.53

5 + C$58.05

10 + C$55.74

50 + C$53.62

100 + C$51.65

In Stock: 10000
Model: 23HS30-5004D-B280
Gross Weight: 1.59kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a Nema 23 stepper motor with a 24V 4.5W electromagnetic brake. The motor comes with a holding torque of 2.0Nm(283.22oz.in), rated current of 5.0A and 116.5mm body length.
The built-in electromagnetic brake realizes the function of frequently starting and stopping a stepper motor to ensure that the motor is powered on or locked when it is powered off.
With its unique advantages like affordable price, energy saving, environmental protection, long life, and easy maintenance, etc., it is widely used in automated equipment such as dispensing machines, elevators, CNC machine tools, tapering machines, and packaging machines.

Electrical Specification

Manufacturer Part Number: 23HS30-5004D-B280
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 2.0Nm(283.22oz.in)
Rated Current/phase: 5.0A
Phase Resistance: 0.42ohms±10%
Inductance: 1.70mH±20%(1KHz)
Insulation Class: B 130°C[266°F]
Brake Rated Voltage: 24V
Brake Torque: 2.8Nm(396.51oz.in)
Brake Power: 4.5W

Physical Specification

Frame Size: 57 x 57mm
Body Length: 116.5mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-Cut Length: 15mm
Motor Cable Length: 500mm
Brake Cable Length: 180mm

Connection

A+	A-	B+	B-	Brake DC+	Brake DC-
Black	Green	Red	Blue	Red	Black

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Holding Torque(Ncm)	200
Holding Torque(oz.in)	283.22
Phase Resistance(ohms)	0.42
Rated Current(A)	5.0
Stepper Motor with	Brake
Brake Specification
Brake Power(W)	4.5
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	280
Brake Torque(oz.in)	396.51
Brake Type	Power Off Brake
Physical Specification
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	21
