Nema 23 Stepper Motor Bipolar L=78mm w/ Gear Ratio 10:1 Spur Gearbox

1 reviews - Write a review

C$83.01

5 + C$79.11

10 + C$75.55

50 + C$72.31

100 + C$69.32

In Stock: Pre-order
Model: 23HS30-2804S-SG10
Gross Weight: 1.41kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 605

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

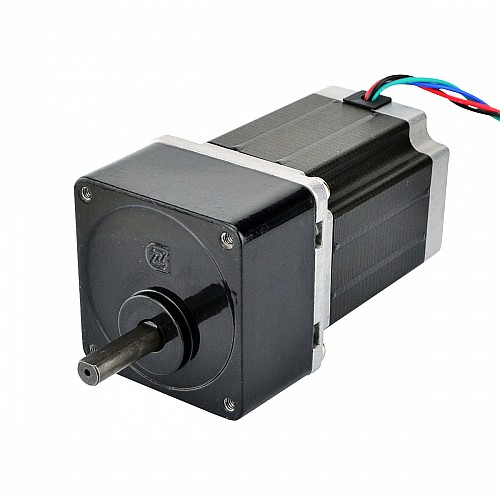

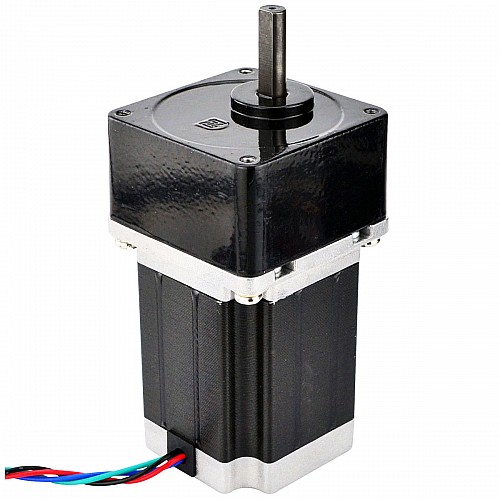

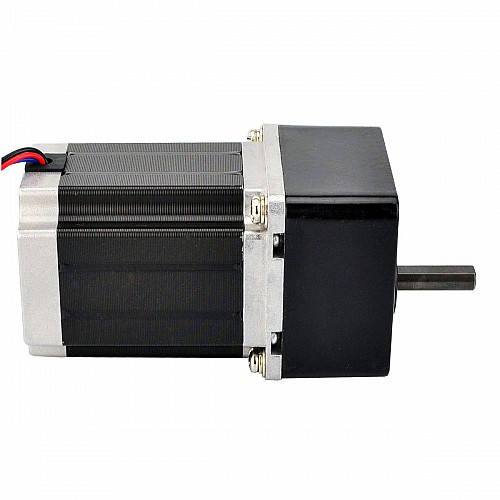

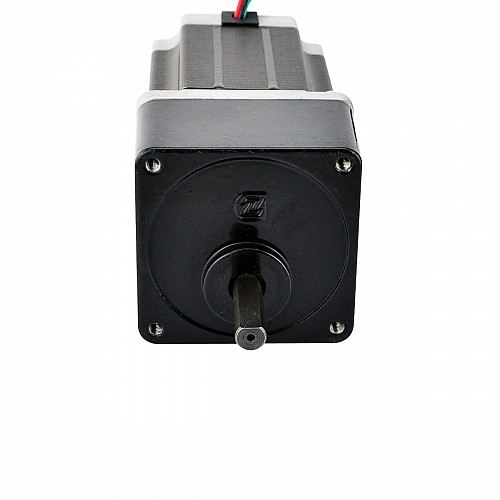

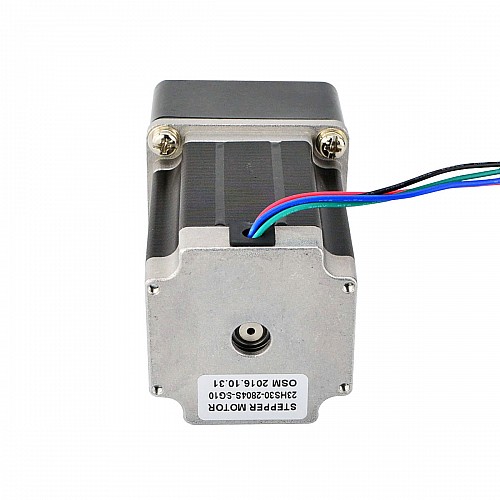

This Nema 23 stepper motor with 78mm body and 2.8A rated current, integrated a 60mm square spur gearbox of 10:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 23HS30-2804S-SG10
Motor Type: Bipolar Stepper
Step Angle: 0.18deg
Holding Torque without Gearbox: 1.89Nm(267.65oz.in)
Rated Current/phase: 2.8A
Phase Resistance: 1.13ohms
Voltage: 3.2V
Inductance: 5.4mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur
Gear Ratio: 10:1
Efficiency: 80%
Backlash at No-load: <=3deg
Max.Permissible Torque: 5Nm

Physical Specifications

Frame Size: 60 x 60mm
Motor Length: 78mm
Gearbox Length: 32mm
Shaft Diameter: Φ8mm
Shaft Length: 28mm
D-cut Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 1.31kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	2.8
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	1.89
Inductance(mH)	5.4
Phase Resistance(ohms)	1.13
Physical Specification
Backlash at No-load	<=3deg
Body Length(mm)	110
Frame Size(mm)	Nema 23 (57 x 57)
Gear Ratio(xx:1)	10
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	28
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	1500

File	Size
23HS30-2804S-SG10_Full_Datasheet.pdf	149.33KB	Download
23HS30-2804S-SG10.STEP	2.15MB	Download
23HS30-2804S-SG10_Torque_Curve.pdf	166.84KB	Download
23HS30-2804S_Torque_curve.pdf	180.81KB	Download
