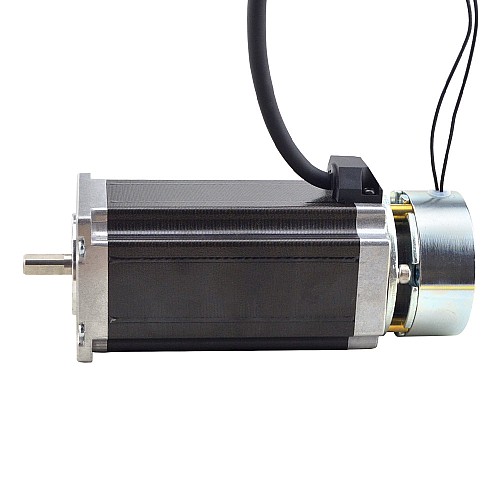

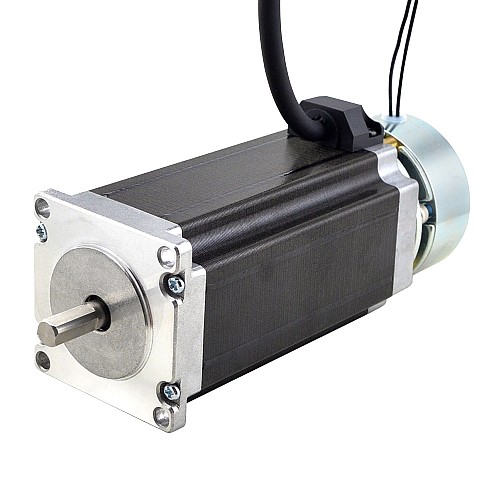

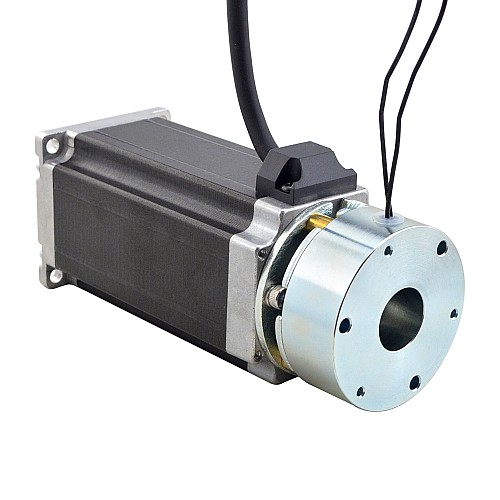

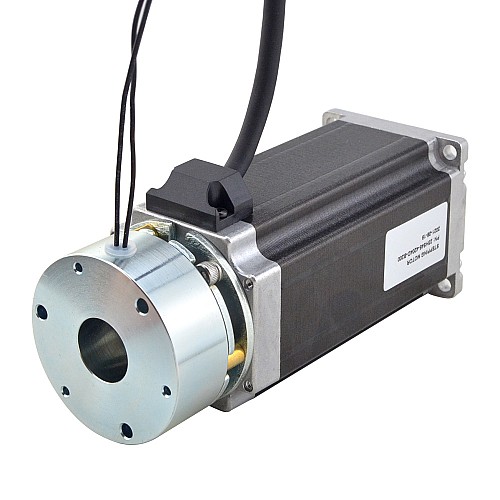

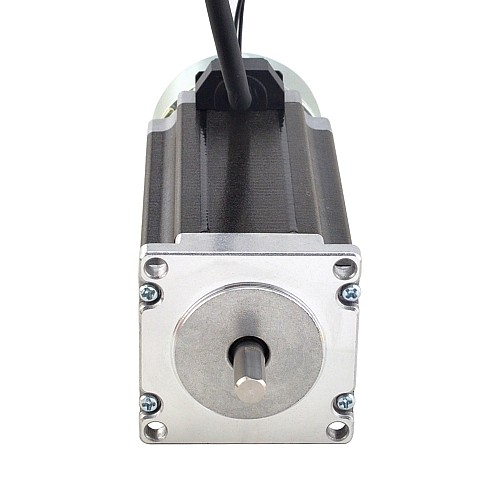

Nema 23 Stepper 3.0Nm(425oz.in) w/ Brake Friction Torque 2.0Nm(283oz.in)

1 reviews - Write a review

C$75.67

5 + C$72.55

10 + C$69.68

50 + C$67.03

100 + C$64.56

In Stock: Pre-order
Model: 23HS45-4204D-B200
Gross Weight: 2.28kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Motor Specification

Manufacturer Part Number: 23HS45-4204D-B200
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 3.0Nm(425oz.in)
Rated Current/phase: 4.2A
Voltage: 3.78V
Phase Resistance: 0.95ohms
Inductance: 4.1mH±20%(1KHz)
Insulation Class: B 130°C[266°F]
Frame Size: 57 x 57mm
Body Length: 113mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Weight: 1.6kg

Brake Specification

Brake Type: Non-excited
Static Friction Torque: 2Nm(283.22oz.in)
Moment of Inertia : 3.8x10^-6kg.cm²
Voltage: 24V
Power: 11.5W
Heat-resistance Class: F
Max. Speed : 5000rpm
Weight : 0.4kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Holding Torque(Ncm)	300
Holding Torque(oz.in)	425
Phase Resistance(ohms)	0.95
Rated Current(A)	4.2
Stepper Motor with	Brake
Brake Specification
Brake Power(W)	11.5
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	200
Brake Torque(oz.in)	283.22
Brake Type	Power Off Brake
Physical Specification
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
Shaft Diameter(mm)	8
Shaft Length(mm)	21
