Nema 23 Stepper Motor Bipolar L=78mm w/ Gear Ratio 30:1 Spur Gearbox

0 reviews - Write a review

C$87.85

5 + C$83.71

10 + C$79.95

50 + C$76.52

100 + C$73.36

In Stock: 10000
Model: 23HS30-2804S-SG30
Gross Weight: 1.70kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 74

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

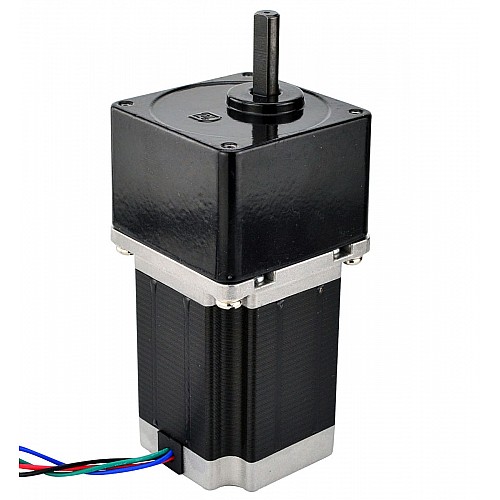

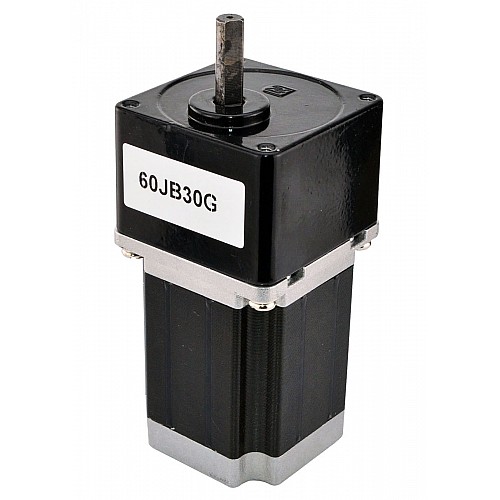

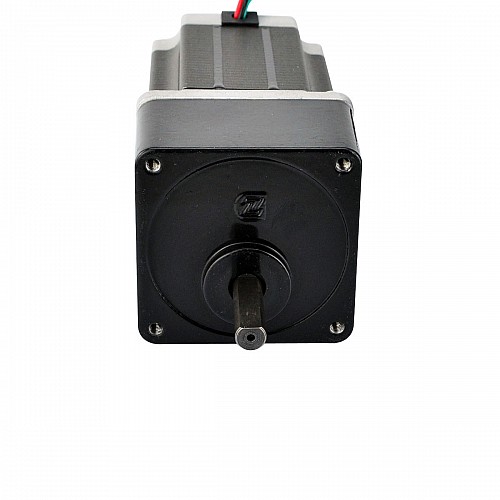

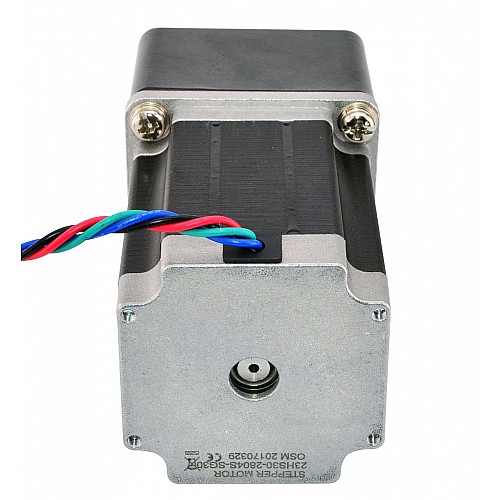

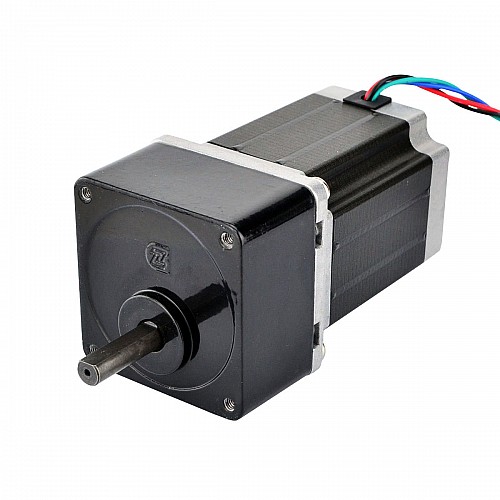

This Nema 23 stepper motor with 78mm body and 2.8A rated current, integrated a 60mm square spur gearbox of 30:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 23HS30-2804S-SG30
Motor Type: Bipolar Stepper
Step Angle: 0.06deg
Holding Torque without Gearbox: 1.89Nm(267.65oz.in)
Rated Current/phase: 2.8A
Phase Resistance: 1.13ohms
Voltage: 3.2V
Inductance: 5.4mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur
Gear Ratio: 30:1
Efficiency: 70%
Backlash at No-load: <=3deg
Max.Permissible Torque: 5Nm

Physical Specifications

Frame Size: 60 x 60mm
Motor Length: 78mm
Gearbox Length: 40mm
Shaft Diameter: Φ8mm
Shaft Length: 28mm
D-cut Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 1.6kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	2.8
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	1.89
Inductance(mH)	5.4
Phase Resistance(ohms)	1.13
Physical Specification
Backlash at No-load	<=3deg
Body Length(mm)	118
Frame Size(mm)	Nema 23 (57 x 57)
Gear Ratio(xx:1)	30
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	28
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	1600
