1 Axis Stepper CNC Kit 1.85Nm(262.03oz.in) Nema 23 Stepper Motor 8mm Dual Shaft

Discontinued

1 Axis Stepper CNC Kit 1.85Nm(262.03oz.in) Nema 23 Stepper Motor 8mm Dual Shaft

1 reviews - Write a review

C$0.00

In Stock: 1
Model: 23KIT-20D
Gross Weight: 1.55kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 8

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

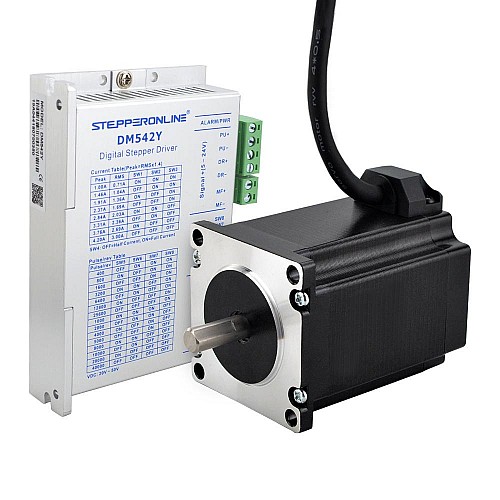

This CNC kit includes:

1 x Y Series Digital Stepper Driver 1.0-4.2A DC20V-50V for Nema 17, 23, 24 Stepper Motor
1 x Nema 23 Stepper Motor 8mm Dual Shaft

Motor Specification

Manufacturer Part Number: 23HS30-2694D
Number Of Phase: 2
Holding Torque: 1.85Nm(262.03oz.in)
Rated Current/phase: 2.8A
Phase Resistance: 1.1ohms± 10%
Inductance: 5.4mH±20%(1KHz)
Frame Size: 57 x 57mm
Body Length: 76mm
Shaft Diameter: Φ8mm
Front Shaft Length: 21mm
Front D-CUT Shaft Length: 15mm
Rear Shaft Length:16mm
Rear D-CUT Shaft Length: 14mm
Number of Leads: 4
Lead Length: 500mm

Connection

A+	A-	B+	B-
BLK	GRN	WHT	BLU

Driver Specification

Output Peak Current: 1.0 - 4.2A(0.71~3.0RMS）
Input Voltage: DC20V~50V
Logic Signal Current: 7 - 15mA(Typical 10mA)
Pulse Input Frequency: 0 - 200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ
Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Ambient Temperature: 0 － 65℃
Humidity: 40% － 90%RH
Operating Temperature: 50℃ MAX
Vibration: 10-50Hz/0.15mm
Storage Temperature: -20 － 65℃

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is KIT07.

Product Type
Product Type	Open Loop Stepper Kit
Electrical Specification
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	185
Holding Torque(oz.in)	262.03
Input Voltage Reference(V)	24 - 48DC
No. of Phase	2
Number of Axes	1
Physical Specification
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
No. of Lead	4
Output Shaft Type	D
Product Series	YS Series
Shaft Diameter(mm)	8
Shaft Length(mm)	21
Single Shaft/Dual Shaft	Dual Shaft

File	Size
23HS30-2694D.STEP	1.43MB	Download
23HS30-2694D_Full_Datasheet.pdf	122.83KB	Download
23HS30-2694D_Torque_Curve.pdf	173.97KB	Download
DM542Y.STP	4.35MB	Download
Y-series-open-loop-stepper-driver.pdf	581.41KB	Download
