Nema 34 Stepper Motor Kit 12Nm Key-way Single Shaft for Face Mask Machine & Respiratory Ventilators

Discontinued

Nema 34 Stepper Motor Kit 12Nm Key-way Single Shaft for Face Mask Machine & Respiratory Ventilators

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 34KIT-120S
Gross Weight: 6.50kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 9

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

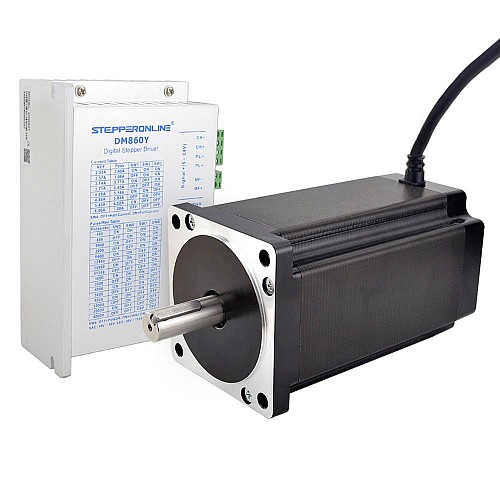

This CNC kit includes:

1 x Digital Stepper Driver 2.4-7.2A AC18V-80V / DC 36V-110V for Nema 34 Motor
1 x E Series Nema 34 Stepper Motor Bipolar 1.8deg 12.0Nm(1699.68oz.in) 6.0A 86x86x151.5mm 4 Wires

Motor Specification

Manufacturer Part Number: 34HE59-6004S
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 12.0Nm(1699.68oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.7ohms±10%
Inductance: 7.9mH±20%(1KHz)
Frame Size: 86 x 86mm
Body Length: 151.5mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Keyway Shaft Length: 25mm
Number of Leads: 4
Lead Length: 500mm

Connection

A+	A-	B+	B-
BLK	GRN	RED	BLU

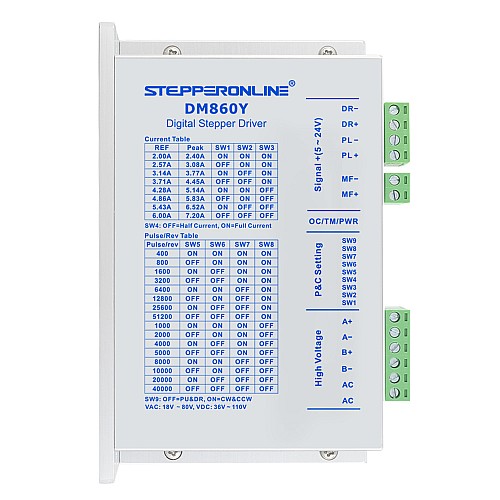

Driver Specification

Output Peak Current: 2.4 - 7.2 A(2.0~6.0RMS）
Input Voltage: AC18V~80V/DC 36V-110V
Logic Signal Current: 7 - 15mA(Typical 10mA)
Pulse Input Frequency: 0 - 200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ
Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Ambient Temperature: 0 － 65℃
Humidity: 40% － 90%RH
Operating Temperature: 50℃ MAX
Vibration: 10-50Hz/0.15mm
Storage Temperature: -20 － 65℃

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 1-DM860I-34HS59.

Product Type
Product Type	Open Loop Stepper Kit
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	1200
Holding Torque(oz.in)	1699.68
Input Voltage Reference(V)	24 - 80AC / 36 - 110DC
No. of Phase	2
Number of Axes	1
Step Angle(deg.)	1.8
Physical Specification
Frame Size(mm)	Nema 34 (86 x 86)
No. of Lead	4
Output Shaft Type	Keyway
Product Series	YE Series
Shaft Diameter(mm)	14
Shaft Length(mm)	37
