Nema 23 Stepper Motor L=55mm Gear Ratio 100:1 High Precision Planetary Gearbox

0 reviews - Write a review

C$135.92

5 + C$129.22

10 + C$123.14

50 + C$117.60

100 + C$112.54

In Stock: 10000
Model: 23HS22-2804S-HG100
Gross Weight: 1.78kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 592

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

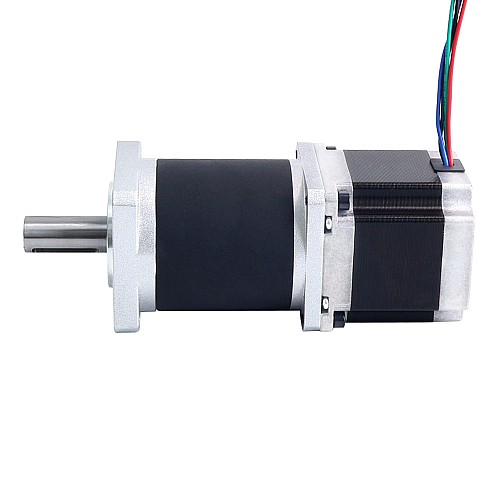

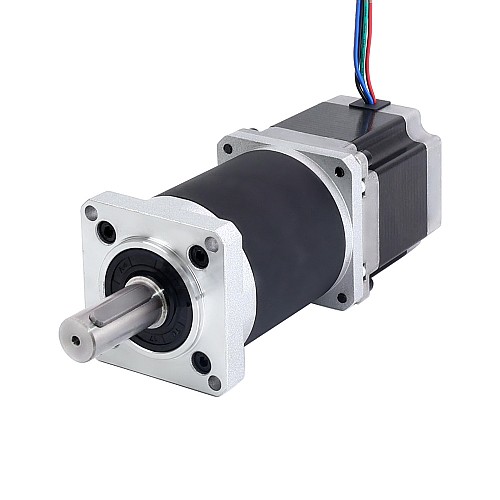

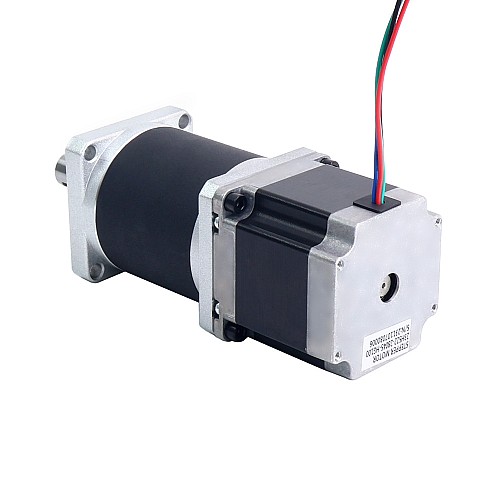

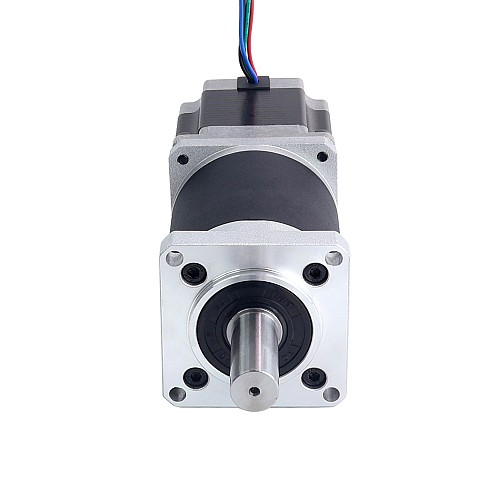

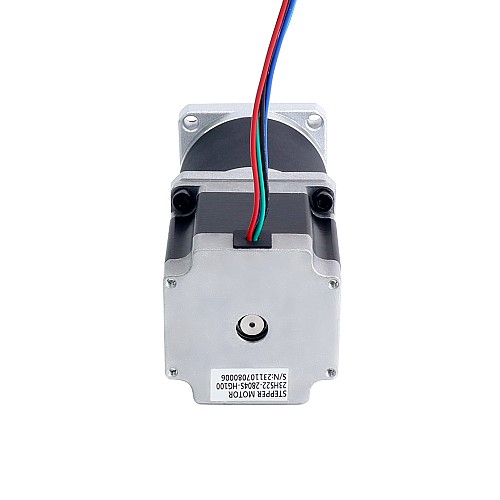

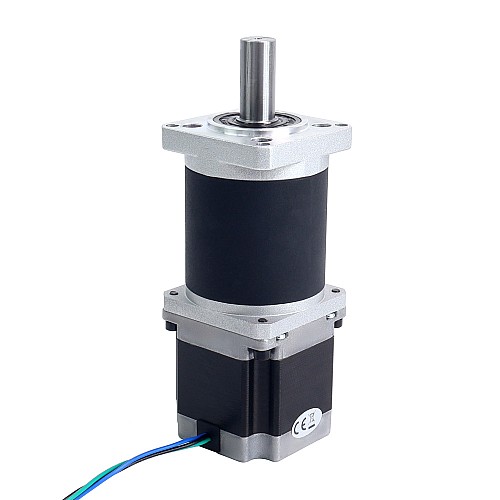

This Nema 23 stepper motor with 55mm body and 2.8A rated current, integrated with a 76mm Planetary gearbox of 100:1 gear ratio. It's a good solution to applications that with special space but need low speed and/or high torque.

Electrical Specification

Part Number: 23HS22-2804S-HG100
Motor Type: Bipolar Stepper
Step Angle: 0.018deg
Holding Torque without Gearbox: 105Ncm(148.69oz.in)
Rated Current/phase: 2.8A
Phase Resistance: 0.9ohms
Inductance: 2.8mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 100 :1
Efficiency: 75%
Backlash at No-load: <=70arcmin
Max. Permissible Torque: 25Nm(3540oz.in)
Moment Permissible Torque: 50Nm(7082oz.in)
Max. Radial Load: 250N
Ambient Temperature: -10 - 50℃
Temperature Rise: MAX.80℃

Physical Specifications

Frame Size: 57 x 57mm
Motor Length: 55mm
Gearbox Length: 76mm
Shaft Diameter: Φ14mm
Shaft Length: 34mm
Key-way Length: 25mm
Number of Leads: 4
Lead Length: 320mm
Weight: 1690g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Holding Torque w/o Gearbox(N.m)	1.05
Physical Specification
Backlash at No-load	<=70arcmin
Frame Size(mm)	Nema 23 (57 x 57)
Gear Material	Alloy Steel
Gear Ratio(xx:1)	100
Gearbox Type	Precision Planetary
Inventory Method	Dedicated Inventory
Output Shaft Type	Keyway
Shaft Diameter(mm)	14
Single Shaft/Dual Shaft	Single Shaft

File	Size
23HS22-2804S-HG100.STEP	3.64MB	Download
23HS22-2804S-HG100_Torque_Curve.pdf	177.54KB	Download
23HS22-2804S-HG100_Full_Datasheet.pdf	56.78KB	Download
23HS22-2804S_Torque_Curve.pdf	180.73KB	Download
