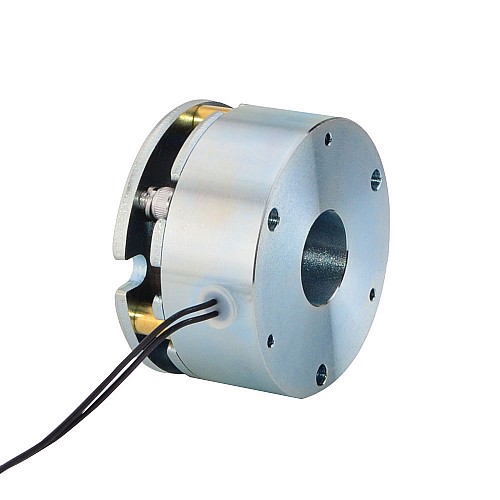

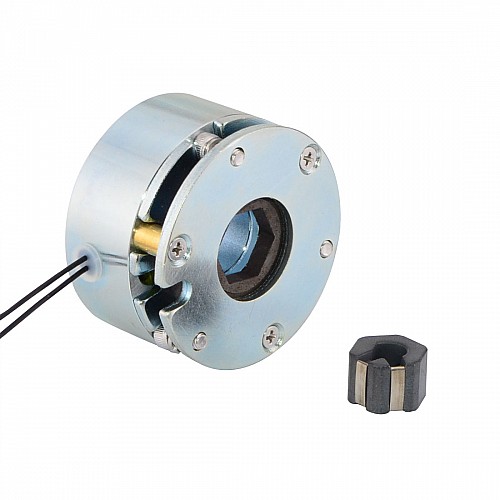

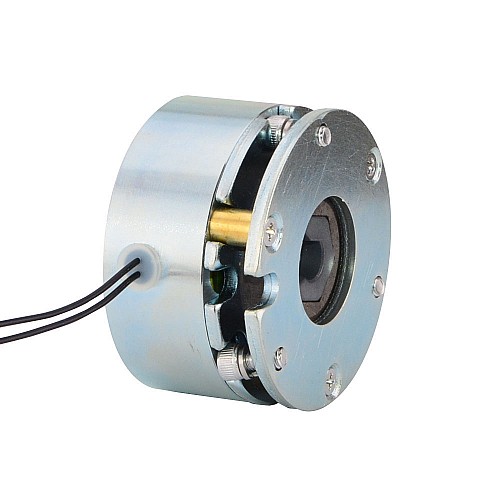

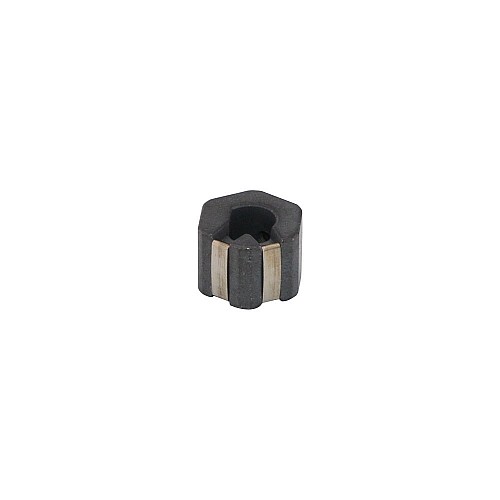

DC Electromagnetic Brake 24V 2.0Nm(283oz.in) for Nema 23 & 24 Stepper Motor

0 reviews - Write a review

$32.67

5 + $31.32

10 + $30.08

50 + $28.93

100 + $27.87

In Stock: 10000
Model: SWB-03
Gross Weight: 0.50kg
Certificated: ISO, CE

Sold: 2412

Click country for real-time stock

Ships from

China

United States

Germany

Russia

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This brake is Non-excited brake and operate with 24VDC, it can create Max 2Nm(283.2oz.in) static friction torque. It's a good choice for Nema 23 and Nema 24 size stepper motor.

The operating principle is:
When the electric power is applied, the armature is pulled by the electromagnetic force in the magnet body assembly, which overcomes the spring action. This allows the friction disc to rotate freely. When electrical power is interrupted, the electromagnetic force is removed and the pressure spring mechanically forces the armature plate to clamp the friction disc between itself and the pressure plate. This develops torque to hold the load.

Brake Specification

Brake Type: Non-excited
Static Friction Torque: 2Nm(283.2oz.in)
Moment of Interia : 3.8x10^-6kg.cm²
Voltage: 24V
Power: 11.5W
Heat-resistance Class: F
Max. Speed : 5000rpm
Weight : 0.4kg

Precautions for Brake Installation:
1. The motor must have a matching rear shaft.
2. There are corresponding mounting holes on motor, and the size fits.

Brake Specification
Brake Power(W)	11.5
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	200
Brake Torque(oz.in)	283.2
Physical Specification
Inventory Method	Dedicated Inventory
