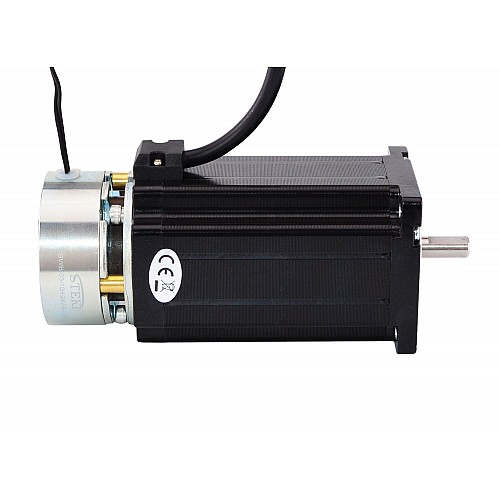

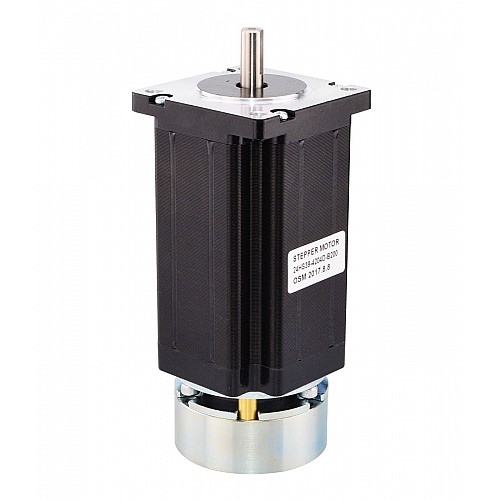

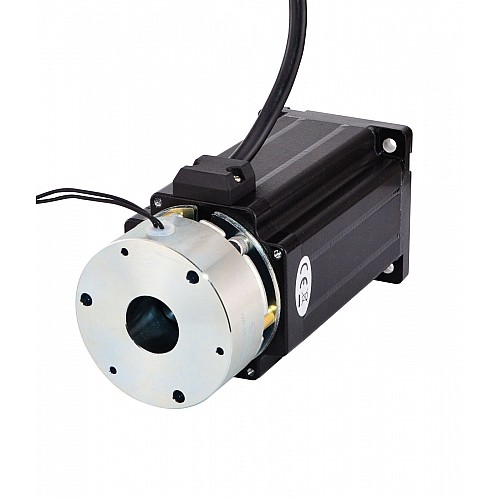

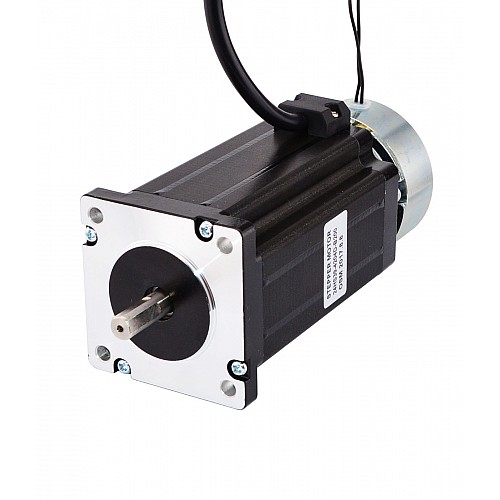

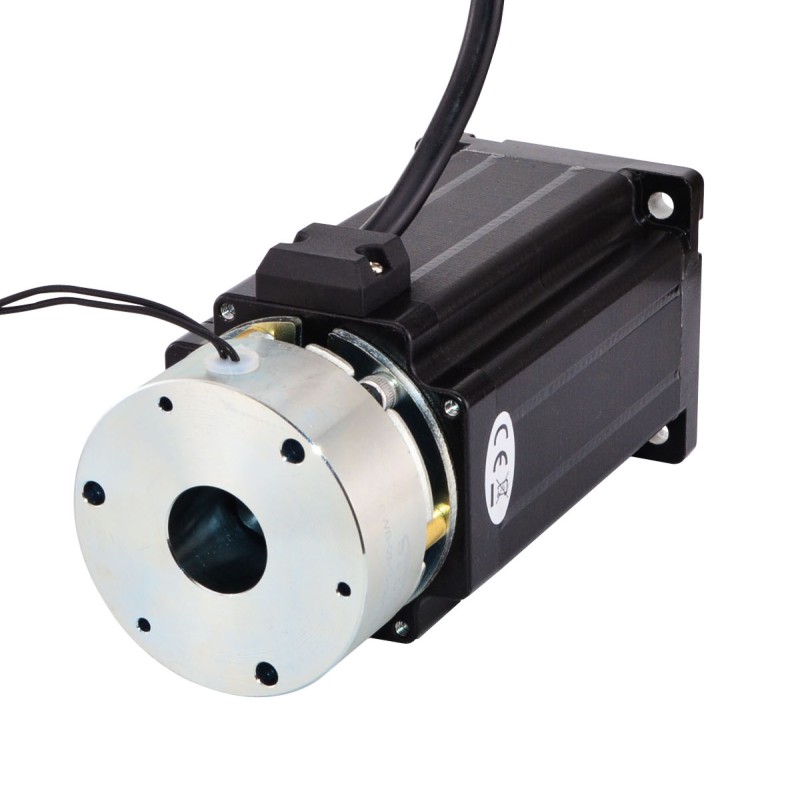

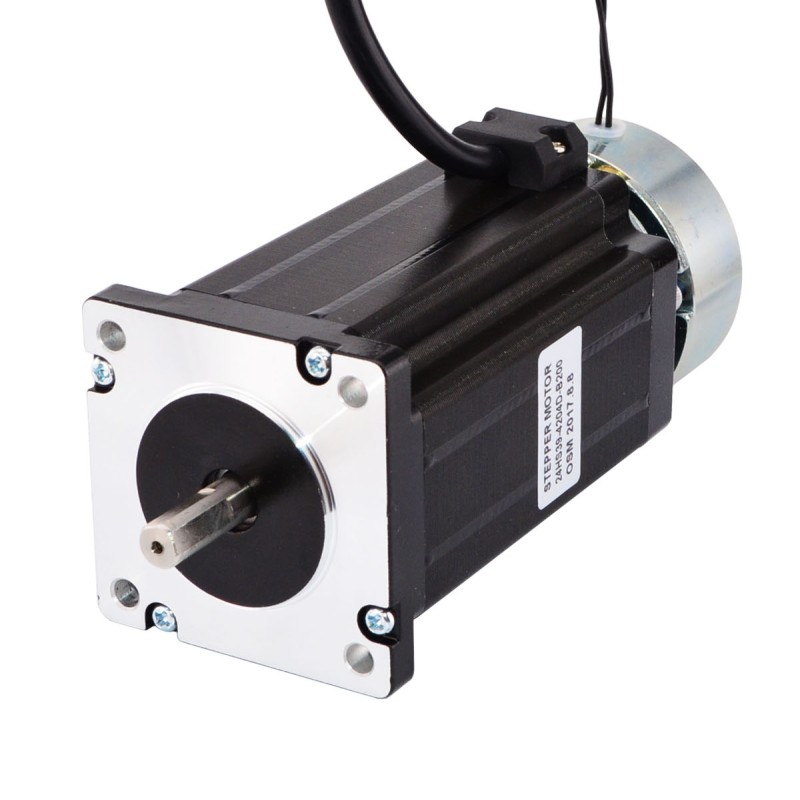

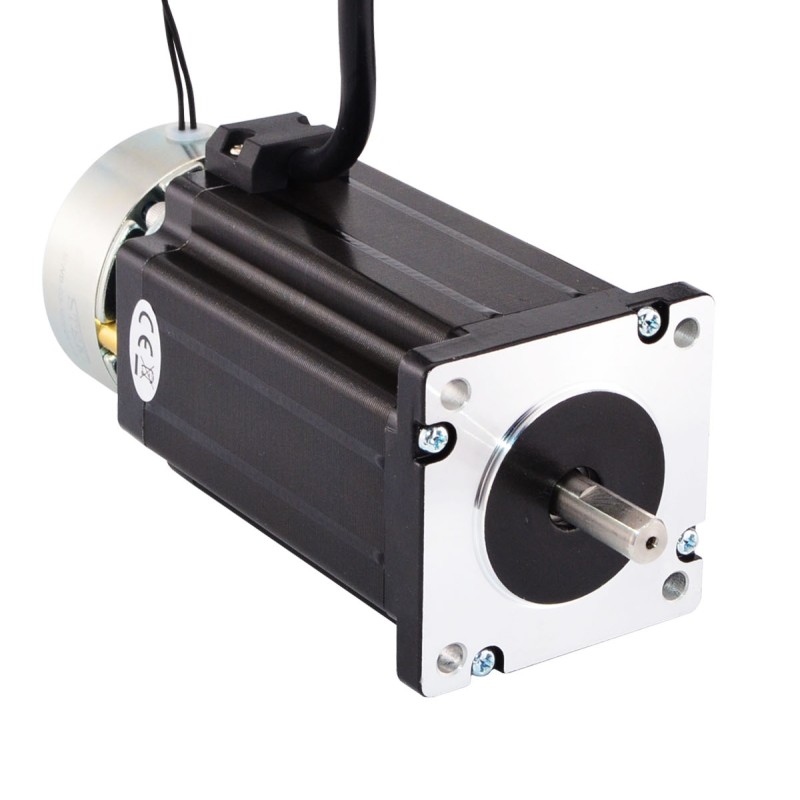

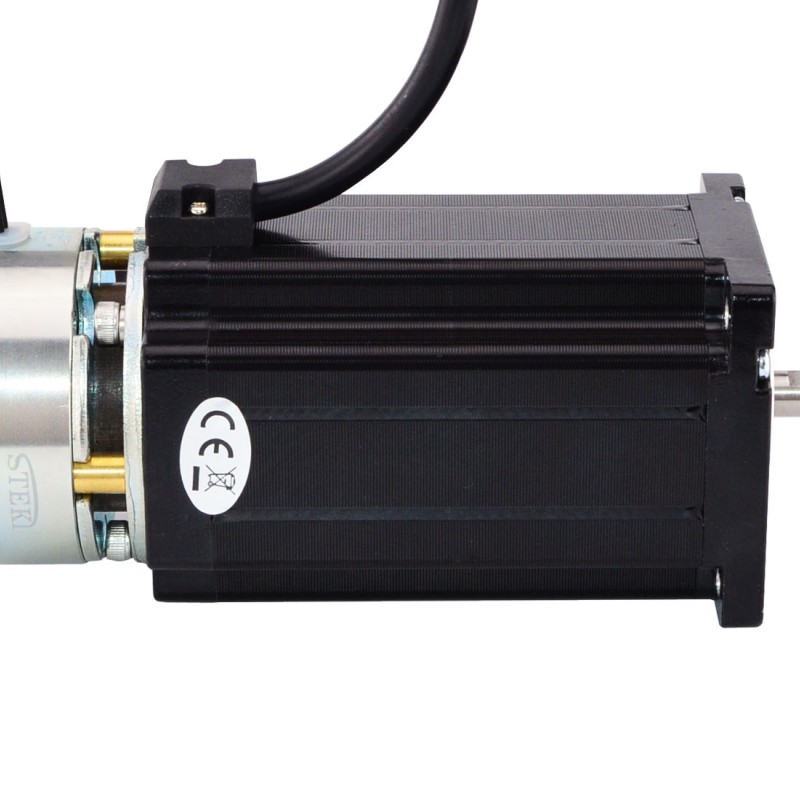

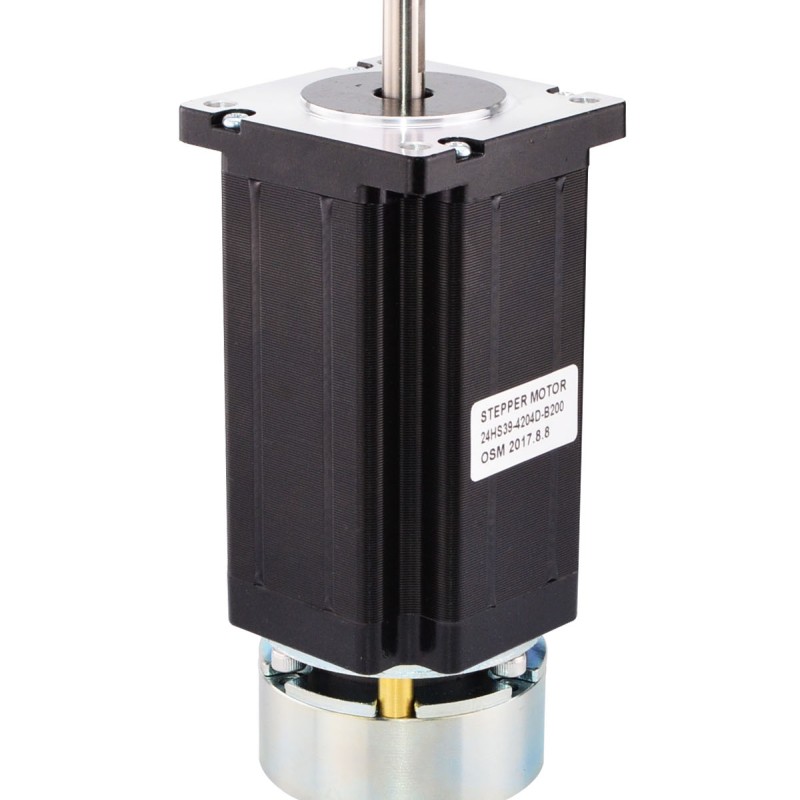

Nema 24 Stepper 4.0Nm(566 oz.in) w/ Brake Friction Torque 2.0Nm(283oz.in)
0 reviews - Write a review
C$0.00
  • In Stock: 1
  • Model: 24HS39-4204D-B200
  • Gross Weight: 2.23kg
  • Certificated: ISO, CE, UKCA, RoHS
Add to Cart
Question
Add to Wish List Compare this Product
This product has a minimum quantity of 999
How to Choose a Shipping Warehouse？
For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Motor Specification

  • Manufacturer Part Number: 24HS39-4204D-B200
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 4Nm(566oz.in)
  • Rated Current/phase: 4.24A
  • Voltage: 2.96V
  • Phase Resistance: 0.7ohms
  • Inductance: 3mH ± 20%(1KHz)
  • Frame Size: 60 x 60mm
  • Body Length: 100mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 1.6kg

Brake Specification

  • Brake Type: Non-excited
  • Static Friction Torque: 2Nm(283.2oz.in)
  • Moment of Interia : 3.8x10-6 kg.cm2
  • Voltage: 24V
  • Power: 11.5W
  • Heat-resistance Class: F
  • Max. Speed : 5000rpm
  • Weight : 0.4kg

Connection

A+
A-
B+
B-
Red
Green
Yellow
Blue

Resources

Physical Specification
IP Rating 40
