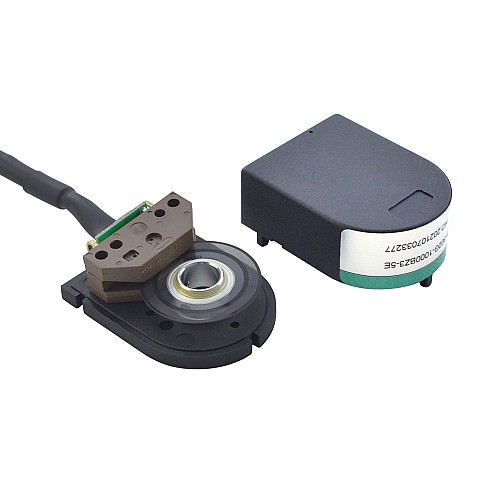

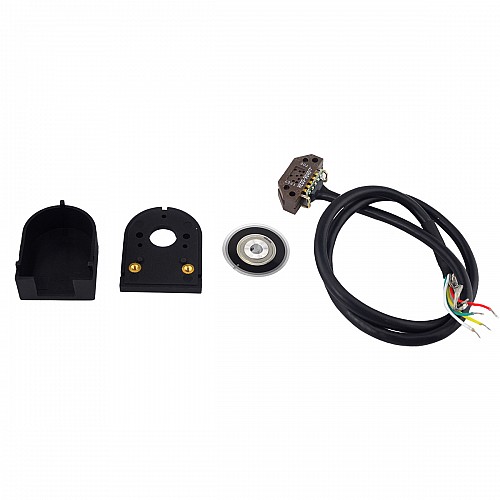

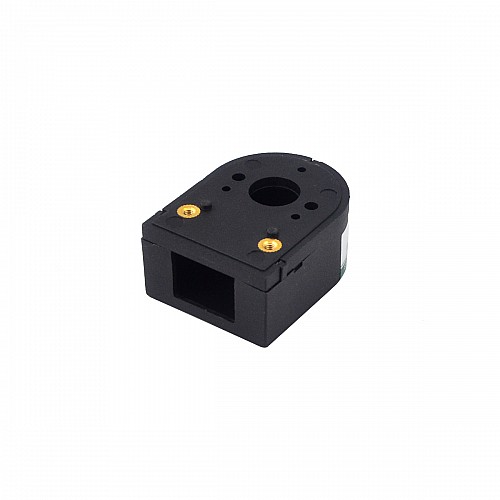

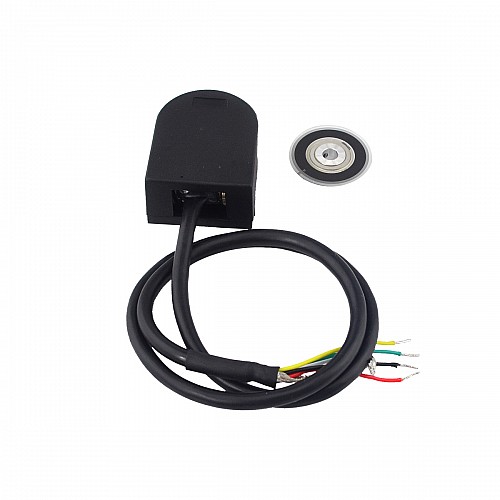

1000PPR Optical Rotary Encoder ABZ 3-Channel ID 5mm w/ Shielded Cable HKT32

0 reviews - Write a review

C$39.68

5 + C$38.17

10 + C$36.76

50 + C$35.46

100 + C$34.25

In Stock: 10000
Model: HKT3205-302G-1000BZ3-5E
Gross Weight: 0.15kg
Certificated: ISO

Available Options

Ships from

China

United States

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Encoder Specification

Output Circuit Type: Push-Pull (Single-Ended)
Controlled By: Encoder Interface
Encoder Resolution: 1000PPR
Output Signal Channels: 3

Electrical Specification

Supply Voltage Min: 5VDC
Supply Voltage Max: 5VDC
Output Current: ≤5mA
Output High Voltage: ≥85%VCC
Output Low Voltage: ≤0.3V
Output Frequency Max: 100KHZ

Physical Specification

Shaft Diameter: 5mm
Operating Temperature Min: -25℃
Operating Temperature Max: 85℃
Cable Length: 0.5m

Electrical Specification
Encoder Resolution	1000ppr
Encoder Type	Optical
Physical Specification
Inventory Method	Dedicated Inventory

File	Size
HKT30-32.pdf	2.79MB	Download
HKT3205-302G-1000BZ3-5E.STEP	1.08MB	Download
