Nema 34 Stepper Bipolar L=97mm w/ Rear Shaft & Gear Ratio 13:1 Spur Gearbox

0 reviews - Write a review

C$226.59

5 + C$216.73

10 + C$207.70

50 + C$199.39

100 + C$191.72

In Stock: Pre-order
Model: 34HS38-4004D-SG13
Gross Weight: 5.70kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 69

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

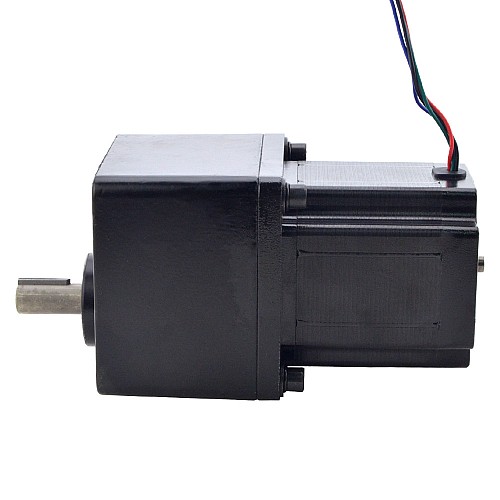

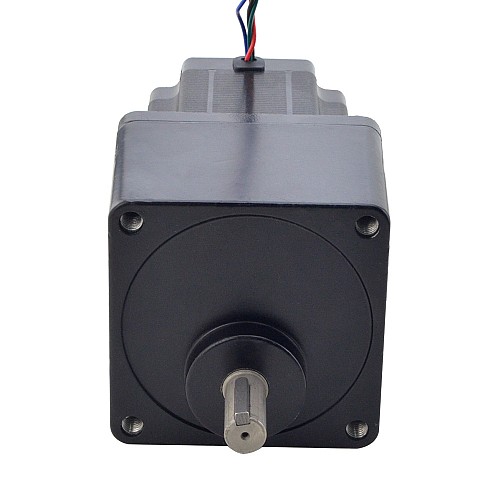

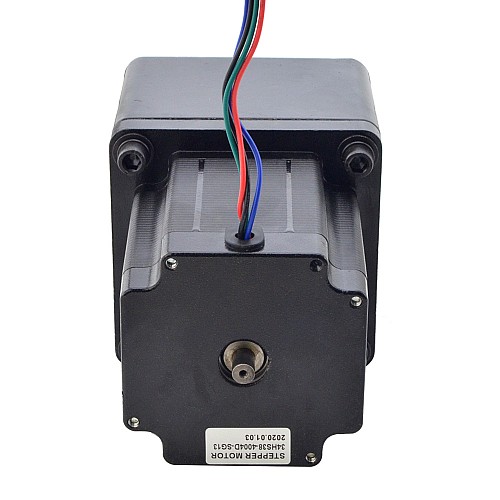

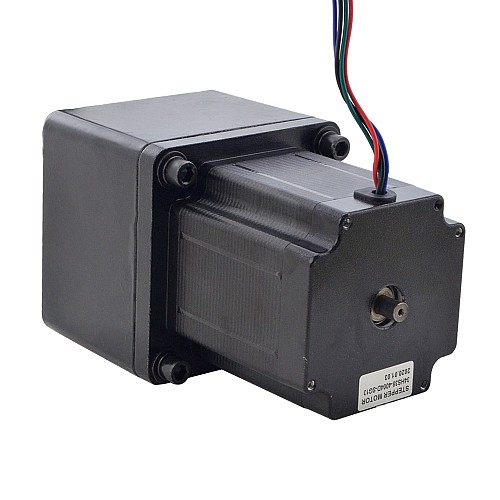

This Nema 34 stepper motor with 97mm body and 4.0A rated current, integrated a104mm square spur gearbox of 13:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 34HS38-4004D-SG13
Motor Type: Bipolar Stepper
Step Angle: 0.14deg
Holding Torque without Gearbox: 4.5Nm(637.25oz.in)
Rated Torque: 40Nm
Rated Current/phase: 4.0A
Phase Resistance: 0.6ohms
Voltage: 2.4V
Inductance: 4.5mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur
Gear Ratio: 13:1
Efficiency: 70%
Backlash at No-load: <=3deg
Max.Permissible Torque: 40Nm

Physical Specifications

Frame Size: 104 x 104mm
Motor Length: 97mm
Gearbox Length: 72mm
Shaft Diameter: Φ15mm
Shaft Length: 43mm
Keyway length: 25mm
Rear Shaft Diameter: 8mm
Rear Shaft Length: 8mm
Number of Leads: 4
Lead Length: 500mm
Weight: 5.6kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	4
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	4.5
Inductance(mH)	4.5
Phase Resistance(ohms)	0.6
Physical Specification
Backlash at No-load	<=3deg
Body Length(mm)	169
Frame Size(mm)	Nema 34 (86 x 86)
Gear Ratio(xx:1)	13
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	15
Shaft Length(mm)	43
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	5600
