Nema 34 Stepper Bipolar L=98mm w/ Rear Shaft & Gear Ratio 20:1 Spur Gearbox

Nema 34 Stepper Bipolar L=97mm w/ Rear Shaft & Gear Ratio 20:1 Spur Gearbox - 34HS38-4004D-SG20 | StepperOnline CA

Nema 34 Stepper Bipolar L=98mm w/ Rear Shaft & Gear Ratio 20:1 Spur Gearbox

0 reviews - Write a review

C$168.82

5 + C$161.48

10 + C$154.76

50 + C$148.56

100 + C$142.85

In Stock: 10000
Model: 34HS38-4004D-SG20
Gross Weight: 5.60kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

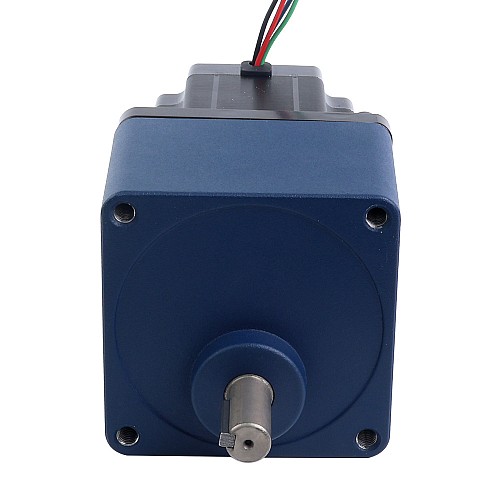

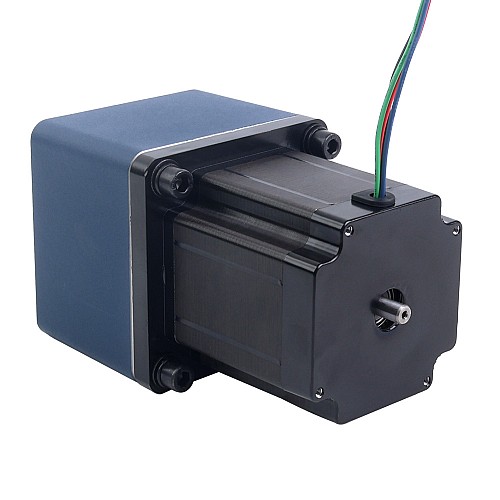

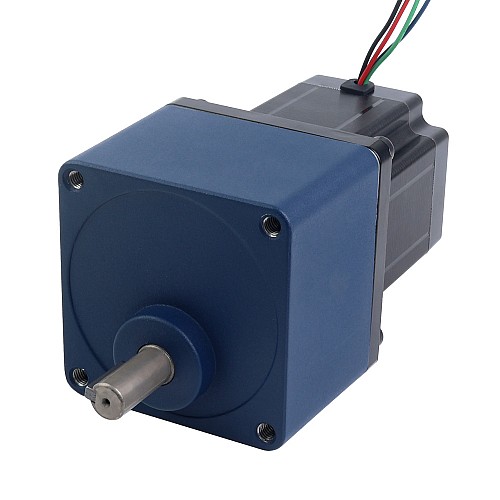

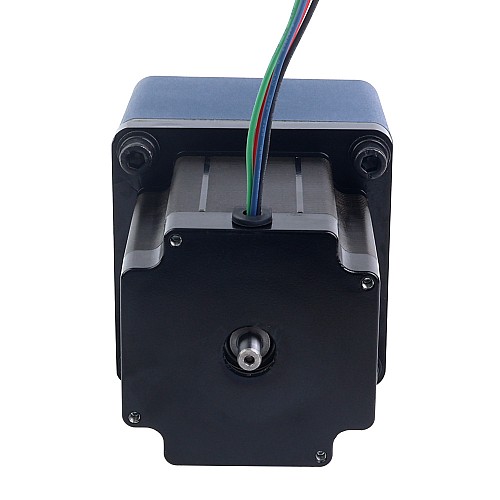

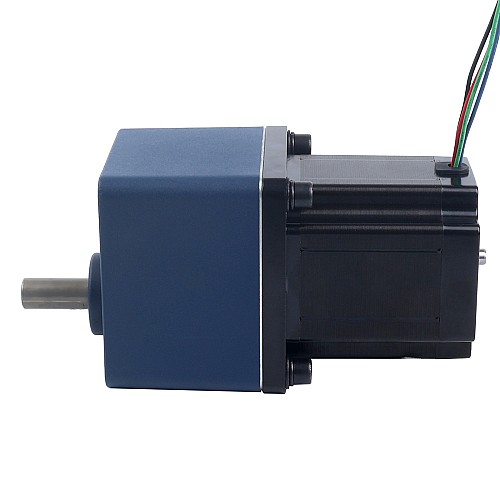

This Nema 34 stepper motor with 98mm body and 4.0A rated current, integrated a104mm square spur gearbox of 20:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 34HS38-4004D-SG20
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque without Gearbox: 4.5Nm(637.25oz.in)
Rated Current/phase: 4.0A
Phase Resistance: 0.6ohms
Inductance: 4.5mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur
Gear Ratio: 20:1
Efficiency: 70%
Backlash at No-load: <=3deg
Max.Permissible Torque: 40Nm

Physical Specifications

Frame Size: 104 x 104mm
Motor Length: 98mm
Gearbox Length: 72mm
Shaft Diameter: Φ15mm
Shaft Length: 43mm
Keyway length: 25mm
Rear Shaft Diameter: 8mm
Rear Shaft Length: 8mm
Number of Leads: 4
Lead Length: 500mm
Weight: 5.2kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	4
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	4.5
Inductance(mH)	4.5
Phase Resistance(ohms)	0.6
Physical Specification
Backlash at No-load	<=3deg
Body Length(mm)	170
Frame Size(mm)	Nema 34 (86 x 86)
Gear Ratio(xx:1)	20
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	15
Shaft Length(mm)	43
Single Shaft/Dual Shaft	Dual Shaft
