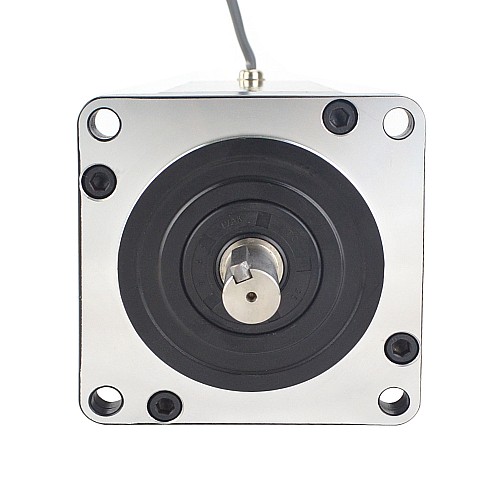

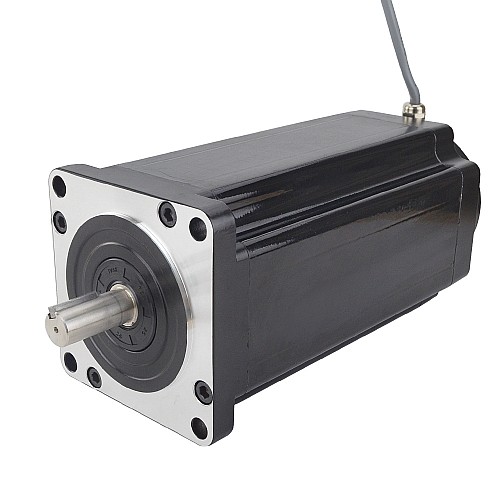

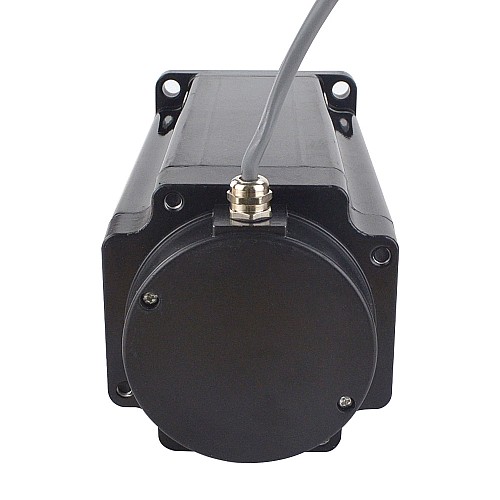

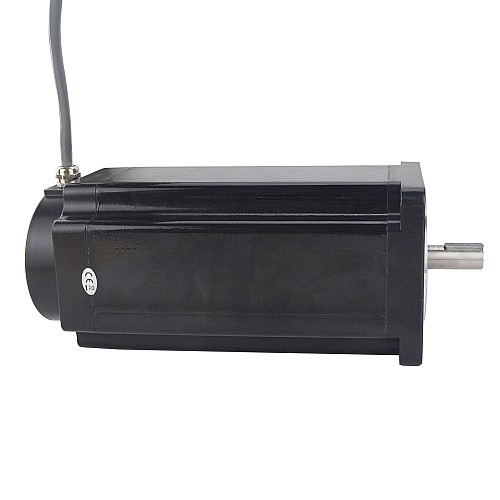

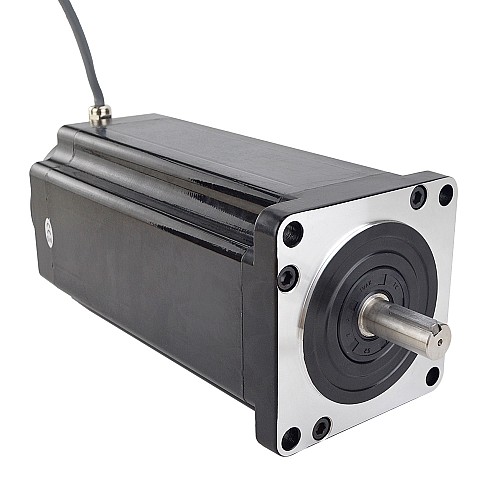

Nema 52 3-phase Stepper Motor Bipolar 50 Nm(7082oz.in) 5.0A 130x130x260mm
0 reviews - Write a review
C$0.00
  • In Stock: 1
  • Model: 52HT102-5003S
  • Gross Weight: 22.00kg
  • Certificated: ISO, CE, UKCA, RoHS
Add to Cart
Question
Add to Wish List Compare this Product
This product has a minimum quantity of 999

Electrical Specification

  • Manufacturer Part Number: 52HT102-5003S
  • Number of Phase: 3
  • Step Angle: 1.2 deg
  • Holding Torque: 50 Nm(7082oz.in)
  • Rated Current/phase: 5 A
  • Phase Resistance: 2.75 ohms± 10%
  • Inductance: 32 mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 130 x 130 mm
  • Body Length: 260 mm
  • Shaft Diameter: Φ19 mm
  • Shaft Length: 48 mm
  • keyway Shaft Length: 30 mm
  • Number of Leads: 3
  • Lead Length: 300 mm

Connection

U
V
W
RED
YEL
GRN

Resources

Electrical Specification
Holding Torque(Ncm) 5000
Holding Torque(oz.in) 7082
Inductance(mH) 32
No. of Phase 3
Phase Resistance(ohms) 2.75
Rated Current(A) 5
Step Angle(deg.) 1.2
Physical Specification
Body Length(mm) 260
Frame Size(mm) Nema 52 (130 x 130)
IP Rating 40
Lead Length(mm) 300
No. of Lead 3
Shaft Diameter(mm) 19
Shaft Length(mm) 48
Weight(g) 22
File Size
52HT102-5003S_Full_Datasheet.pdf 137.86KB Download
52HT102-5003S.STEP 1.35MB Download
52HT102-5003S_Torque_Curve.pdf 126.14KB Download
