Nema 34 CNC Stepper Motor 3.6N.m (509.90oz.in) 4.0A 86 x 86 x 76mm 4 wires

Discontinued

Nema 34 CNC Stepper Motor 3.6N.m (509.90oz.in) 4.0A 86 x 86 x 76mm 4 wires

1 reviews - Write a review

C$0.00

In Stock: 1
Model: 34HS30-4004S
Gross Weight: 2.40kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 76

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

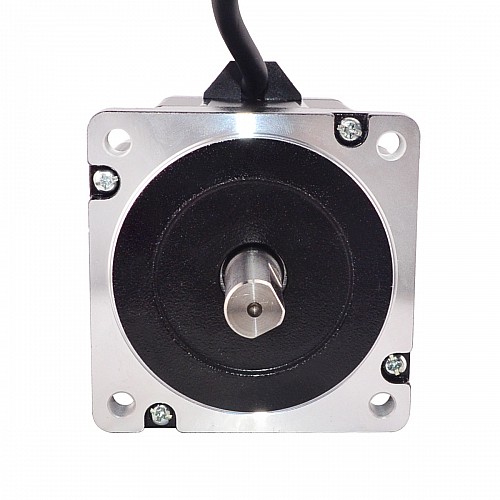

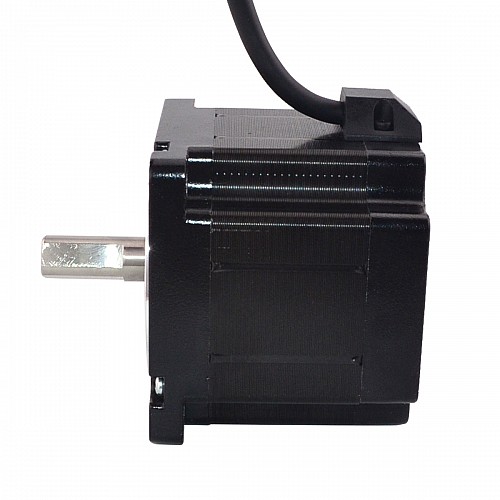

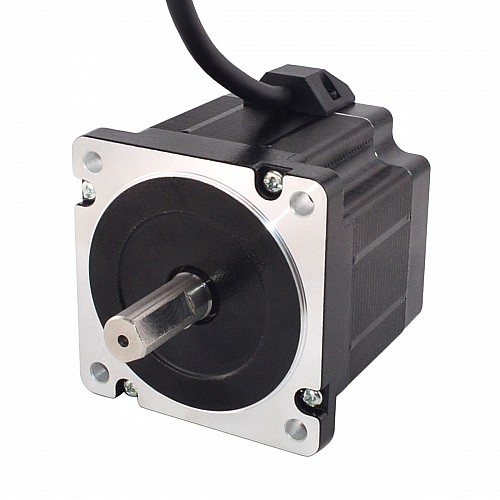

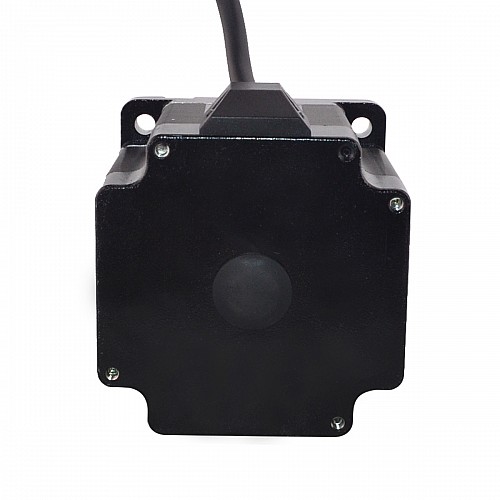

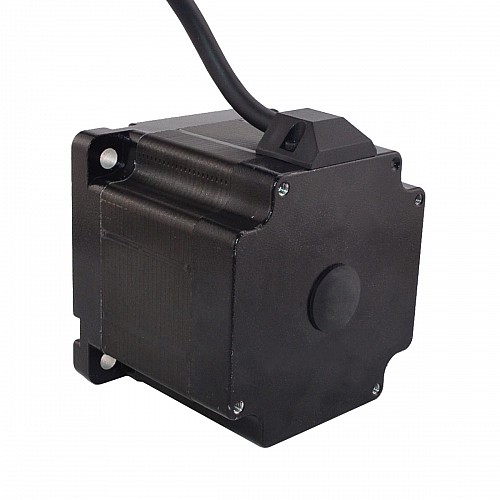

This bipolar Nema 34 stepper motor with step angle 1.8deg and size 86x86x76mm. It has 4 wires, each phase draws 4.00A, with holding torque 3.6N.m (509.90oz.in).

Electrical Specification

Manufacturer Part Number: 34HS30-4004S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 3.6N.m(509.90oz.in)
Rated Current/phase: 4.00A
Phase Resistance: 0.40ohms
Inductance: 3.20mH ± 20%(1KHz)

Physical Specification

Frame Size: 86 x 86mm
Body Length: 76mm
Shaft Diameter: Φ14mm
Shaft Length: 35mm
D-cut Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 2250g

Connection

A+	A-	B+	B-
Red	Green	Yellow	Blue

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 34HS30-6004S.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Holding Torque(Ncm)	360
Inductance(mH)	3.2
Phase Resistance(ohms)	0.4
Rated Current(A)	4.00
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	76
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Shaft Length(mm)	35
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	2250
