We've upgraded our website — we'd love to hear how we can make it even better. Share feedback
Cart0 item(s) - C$0.00 0

  • Your shopping cart is empty!

0

Nema 8 External 28.2mm Stack 0.24A Lead 2mm(0.07874") Length 150mm

Nema 8 External 28.2mm Stack 0.24A Lead 2mm(0.07874) Length 150mm - 8E11S0244AC5-150RS | StepperOnline CA
Nema 8 External 28.2mm Stack 0.24A Lead 2mm(0.07874) Length 150mm - 8E11S0244AC5-150RS | StepperOnline CA
Nema 8 External 28.2mm Stack 0.24A Lead 2mm(0.07874) Length 150mm - 8E11S0244AC5-150RS | StepperOnline CA
Nema 8 External 28.2mm Stack 0.24A Lead 2mm(0.07874) Length 150mm - 8E11S0244AC5-150RS | StepperOnline CA
Nema 8 External 28.2mm Stack 0.24A Lead 2mm(0.07874) Length 150mm - 8E11S0244AC5-150RS | StepperOnline CA
Nema 8 External 28.2mm Stack 0.24A Lead 2mm(0.07874) Length 150mm - 8E11S0244AC5-150RS | StepperOnline CA
Nema 8 External 28.2mm Stack 0.24A Lead 2mm(0.07874) Length 150mm - 8E11S0244AC5-150RS | StepperOnline CA
Nema 8 External 28.2mm Stack 0.24A Lead 2mm(0.07874) Length 150mm - 8E11S0244AC5-150RS | StepperOnline CA
Nema 8 External 28.2mm Stack 0.24A Lead 2mm(0.07874) Length 150mm - 8E11S0244AC5-150RS | StepperOnline CA
Nema 8 External 28.2mm Stack 0.24A Lead 2mm(0.07874) Length 150mm - 8E11S0244AC5-150RS | StepperOnline CA
Nema 8 External 28.2mm Stack 0.24A Lead 2mm(0.07874) Length 150mm - 8E11S0244AC5-150RS | StepperOnline CA
Nema 8 External 28.2mm Stack 0.24A Lead 2mm(0.07874) Length 150mm - 8E11S0244AC5-150RS | StepperOnline CA
Nema 8 External 28.2mm Stack 0.24A Lead 2mm(0.07874) Length 150mm - 8E11S0244AC5-150RS | StepperOnline CA
Nema 8 External 28.2mm Stack 0.24A Lead 2mm(0.07874) Length 150mm - 8E11S0244AC5-150RS | StepperOnline CA
8E11S0244AC5-150RS
Rated Current(A)0.24
Linear Motor TypeExternal (Trapezoidal)
Lead Travel/Revolution(mm)2
Lead Travel/Step(mm)0.01
Question

Downloads

8E11S0244AC5-150RS_Full_Datasheet.pdfPDF · 132.86KB
Same series
ModelRated Current(A)Linear Motor TypeLead Travel/Revolution(mm)Lead Travel/Step(mm)PriceStock
11E13S0754AA2-100RS0.75External (Trapezoidal)20.01C$42.56In stock
17E13S0404DB2-200RS0.4External (Trapezoidal)40.02C$46.11In stock
17E13S0404DB4-100RS0.4External (Trapezoidal)40.02C$24.11In stock
17E13S0404DB4-150RS0.4External (Trapezoidal)40.02C$28.01In stock
17E13S0404MB2-032RB0.4External (Trapezoidal)80.04C$31.91Backorder
17E13S0404MB4-032RB0.4External (Trapezoidal)80.04C$28.01In stock
17E13S0404MB4-150RS0.4External (Trapezoidal)80.04C$26.77In stock
17E13S0404MB4-200RS0.4External (Trapezoidal)80.04C$28.83In stock
17E13S0404MB4-300RS0.4External (Trapezoidal)80.04C$32.94In stock
17E13S1684MB4-200RS-OE1K1.68External (Trapezoidal)80.04C$69.64In stock
17E15S1684DB4-350RS-H1.68External (Trapezoidal)40.02C$72.72In stock
17E16S1504AB2-310RS1.5External (Trapezoidal)20.01C$18.72In stock
17E19S0406AB2-300RA0.4External (Trapezoidal)20.01C$65.61In stock
17E19S0406AB2-330RA0.4External (Trapezoidal)20.01C$65.61Backorder
17E19S1684AB4-330RA1.68External (Trapezoidal)20.01C$67.14In stock
17E19S1684MB4-200RS1.68External (Trapezoidal)80.04C$26.91In stock
17E19S1684MB4-200RS-AR41.68External (Trapezoidal)80.04C$94.83In stock
17E19S1684MB4-300RS1.68External (Trapezoidal)80.04C$25.93In stock
17E19S1684MB4-300RS-OE1K1.68External (Trapezoidal)80.04C$67.96In stock
17LE13-0404E-200G0.4External (Trapezoidal)80.04C$14.82In stock
17LS13-0404E-200G-SALE0.4External (Trapezoidal)80.04C$40.09In stock
17LS19-1684E-200G-AR31.68External (Trapezoidal)80.04C$67.03In stock
23E20S0904MB2-150RS0.9External (Trapezoidal)80.04C$61.78In stock
23E22S2004AJ2-150RS-SALE2.0External (Trapezoidal)20.01C$47.50In stock
23E22S2004AJ2-200RS2.0External (Trapezoidal)20.01C$62.06In stock
23E22S2004AJ4-300RS2.0External (Trapezoidal)20.01C$67.96In stock
23E22S2004DJ2-200RS2.0External (Trapezoidal)40.02C$62.06In stock
23E22S2004DJ4-300RS2.0External (Trapezoidal)40.02C$67.96In stock
23E22S3004MB4-150RB3.0External (Trapezoidal)80.04C$44.33In stock
6E13S0304AC7-100RS0.3External (Trapezoidal)20.01C$183.28In stock
View all in category
Nema 8 External 28.2mm Stack 0.24A Lead 2mm(0.07874") Length 150mm
This model is almost exactly same as Haydon Kerk 21000 series size 8 external stepper motor linear a... Read More
0 reviews • Write a review
from
C$54.29
5 + C$52.63
10 + C$51.07
50 + C$49.60
100 + C$48.21

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

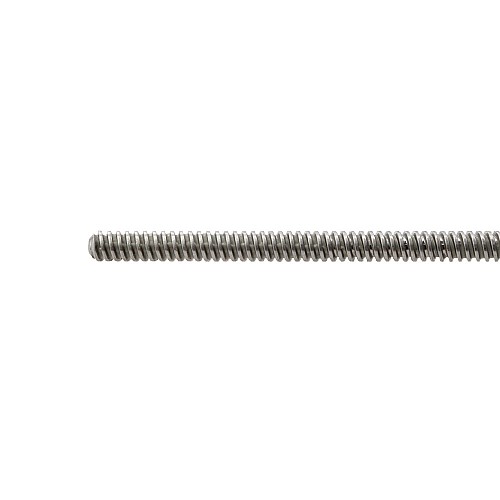

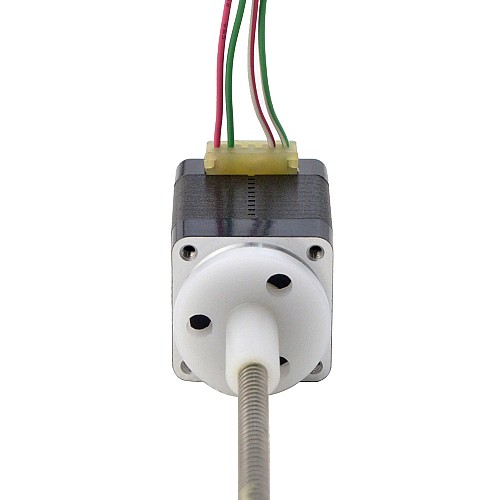

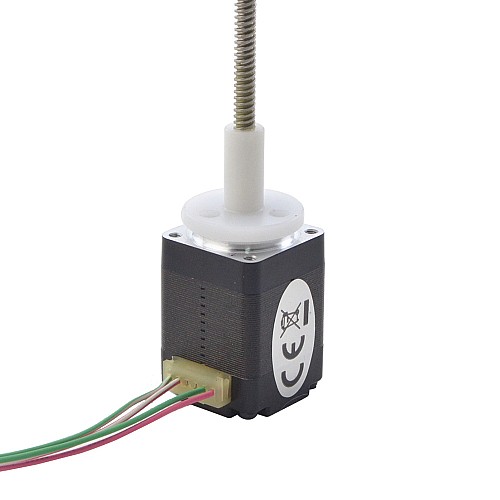

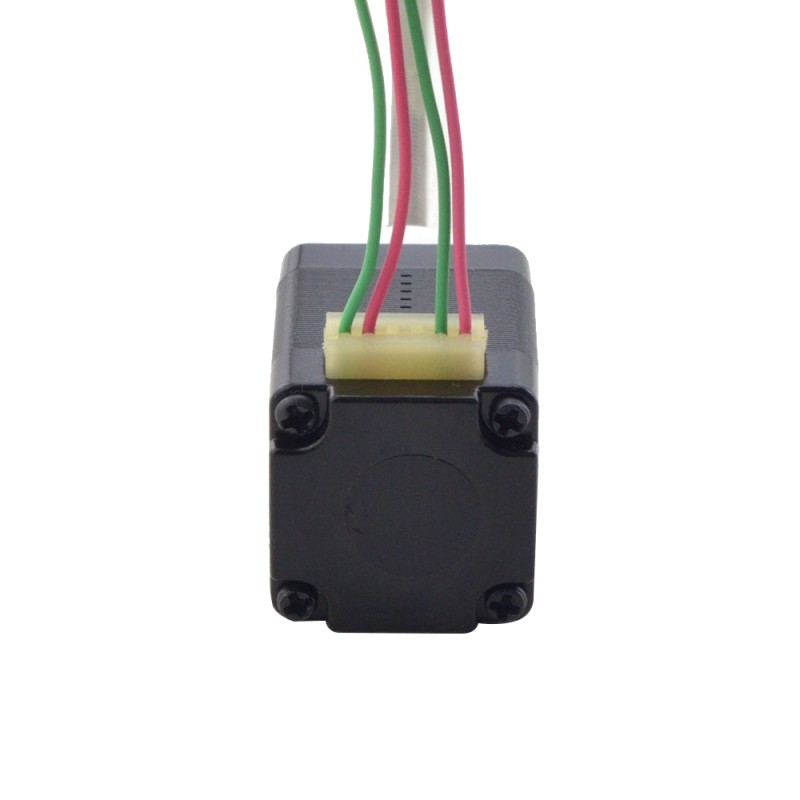

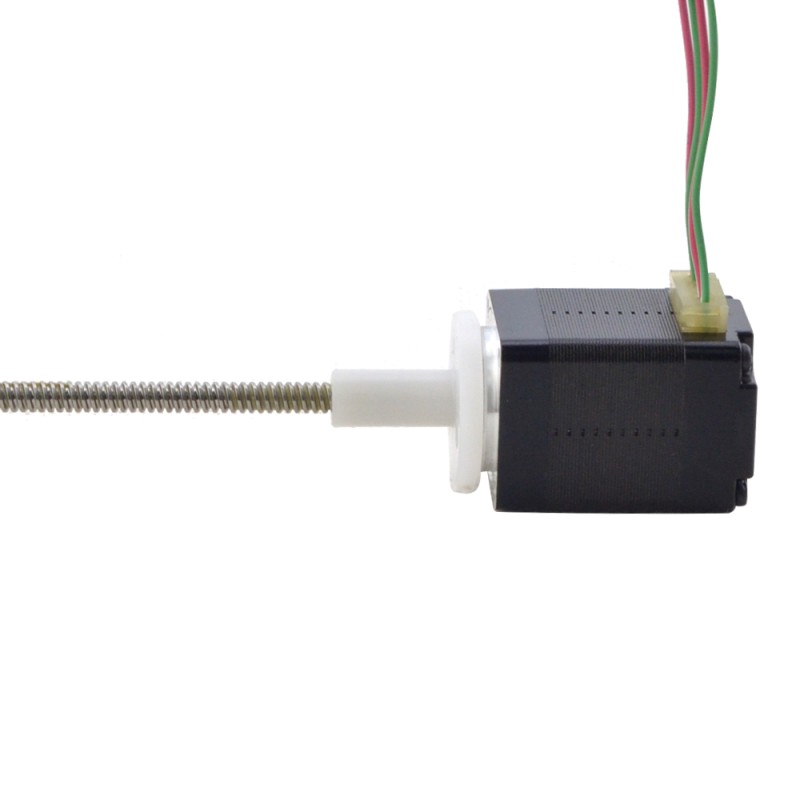

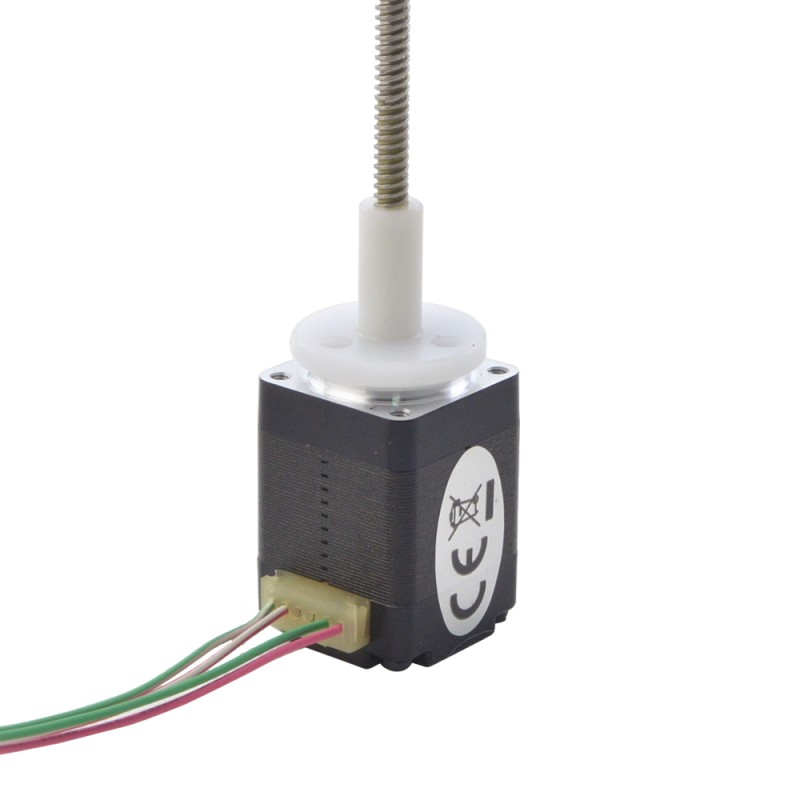

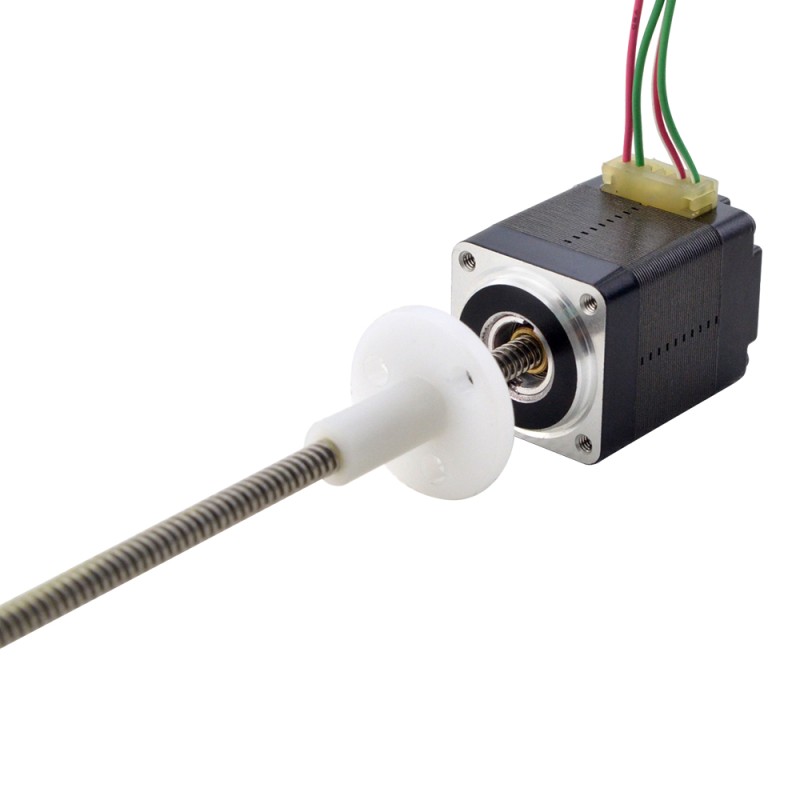

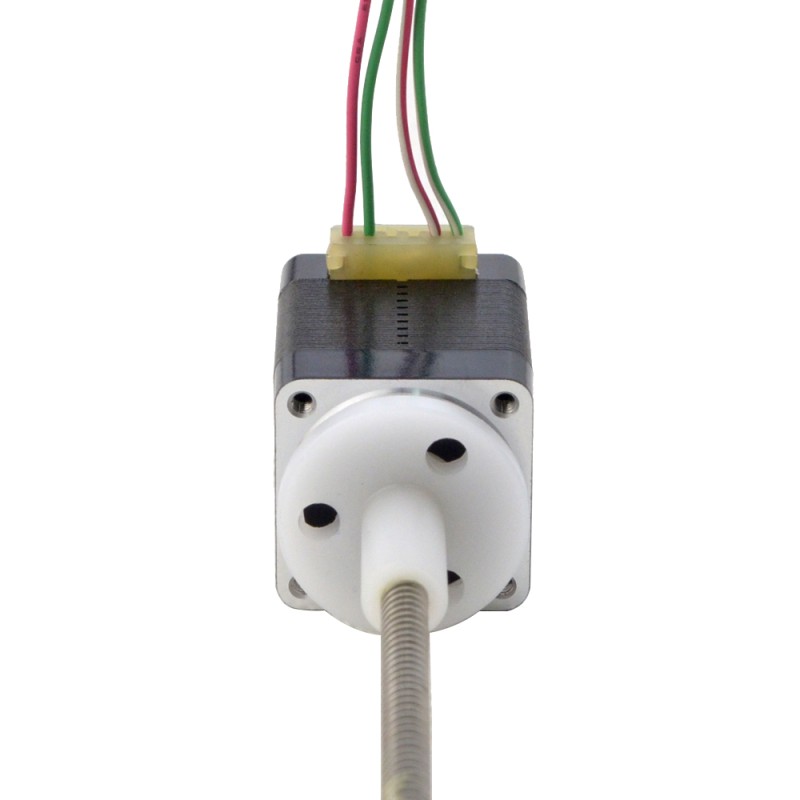

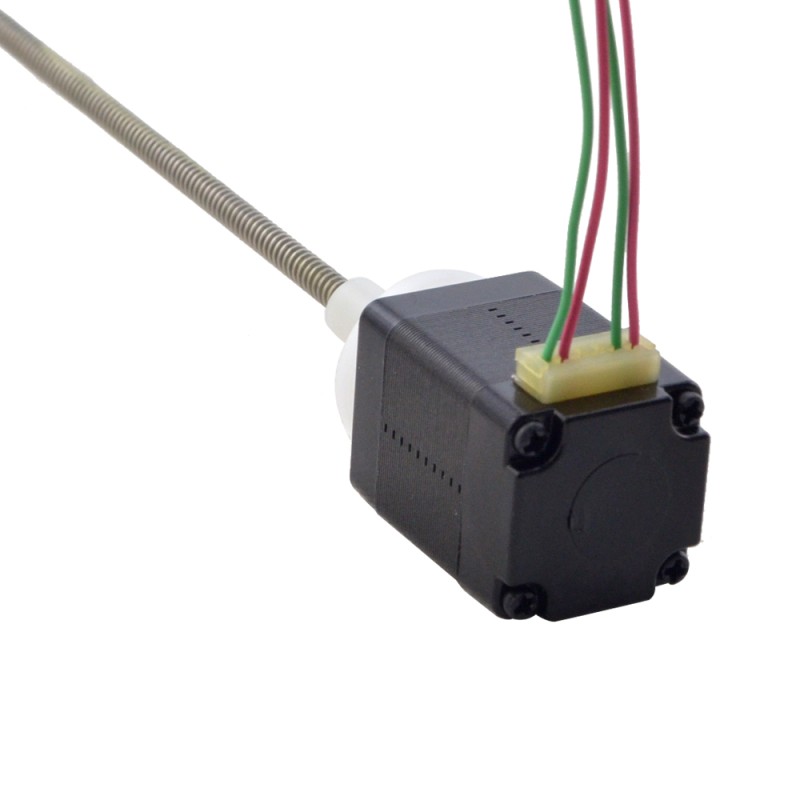

This model is almost exactly same as Haydon Kerk 21000 series size 8 external stepper motor linear actuator. The motor part is 28.2mm body 1.8 degree 0.24A Nema 8 stepper motor, and it has integrated with a 3.5mm(0.1378") diameter 150mm(5.9055") length lead screw and a POM screw nut, the linear travel is 2mm(0.07874") per revolution.

Electrical Specification

  • Manufacturer Part Number: 8E11S0244AC5-150RS(8E11S0244AC-150RS)(8LS11-0244AC-150E)
  • Motor Type: External (Trapezoidal)
  • Step Angle: 1.8°
  • Holding Torque: 0.015Nm(2.12oz.in)
  • Rated Current/phase: 0.24A
  • Phase Resistance: 20.4ohms
  • Inductance: 5.5mH±20%(1KHz)

Physical Specification

  • Frame Size: 20 x 20mm
  • Body Length: 28.2mm
  • Lead Screw Length: 150mm(5.9055")

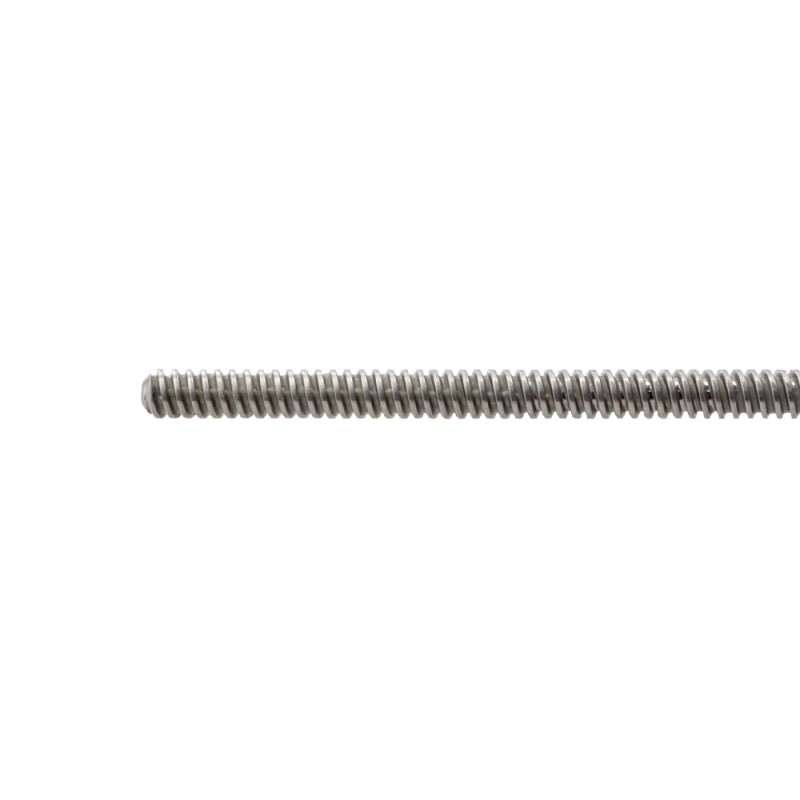

  • Lead Screw Diameter: Φ3.5mm(0.1378")
  • Lead/Step: 0.01mm(0.0003937")
  • Lead Travel/Revolution: 2mm(0.07874")
  • Number of Leads: 4
  • Cable Length: 300mm

Connection

A+
A-
B+
B-
Red
Red/White
Green
Green/White
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 1.5
Holding Torque(oz.in) 2.12
Inductance(mH) 5.5
Phase Resistance(ohms) 20.4
Rated Current(A) 0.24
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 28.2
Frame Size(mm) Nema 08 (20 x 20)
IP Rating 40
Lead Length(mm) 300
Lead Screw Diameter(mm) 3.5
Lead Screw Length(mm) 150
Lead Travel/Revolution(mm) 2
Lead Travel/Step(mm) 0.01
Linear Motor Type External (Trapezoidal)
No. of Lead 4
With Encoder No

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

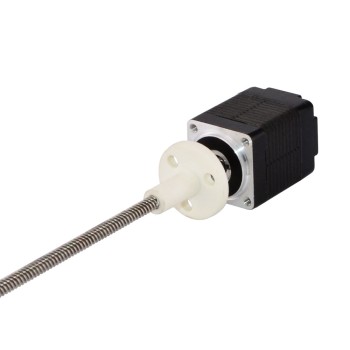

CN On Sale - Nema 8 External 30mm Stack 0.24A Lead 2mm(0.07874") Length 150mm
CN On Sale - Nema 8 External 30mm Stack 0.24A Lead 2mm(0.07874") Length 150mm
The motor part is 30mm body 1.8 degree 0.24A Nema 8 stepper motor, and it has integrated with a 3.5mm(0.1378") diameter 150mm(5.9055") length lead scr..
from Save -48%
C$82.81 C$158.51
Add to Cart
Add to Wish List Compare this Product
Quickview
Digital Stepper Drive 1.0-3.2A 10-30VDC for Nema 17, 23 Stepper Motor
🔥 Bestseller
Digital Stepper Drive 1.0-3.2A 10-30VDC for Nema 17, 23 Stepper Motor
This is a digital stepper drive implemented with advanced stepper control technology. It is easy to use and it can be used to drive 2-phase and 4-phas..
from
C$23.27
Add to Cart
Add to Wish List Compare this Product
Quickview
LRS-100-24 MEANWELL 100W 24VDC 4.5A 115/230VAC Enclosed Switching Power Supply
LRS-100-24 MEANWELL 100W 24VDC 4.5A 115/230VAC Enclosed Switching Power Supply
This is a 100W 24VDC 4.5A power supply. MEANWELL LRS-100 series is a 100W single-output enclosed type power supply with 30mm of low profile design. Ad..
from
C$13.93
Add to Cart
Add to Wish List Compare this Product
Enter your email address below and we will notify you as soon as this item is back in stock.
Name
Email
Comments
