Nema 8 External 30mm Stack 0.24A Lead 0.6096mm(0.024") Length 150mm

Discontinued

Nema 8 External 30mm Stack 0.24A Lead 0.6096mm(0.024") Length 150mm

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 8E11S0244CC3-150RS
Gross Weight: 0.34kg
Certificated: ISO, CE, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

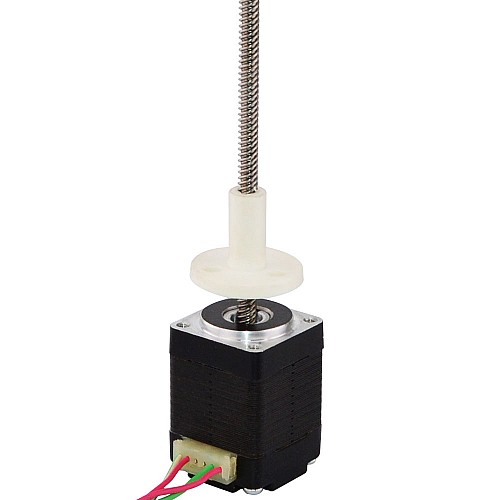

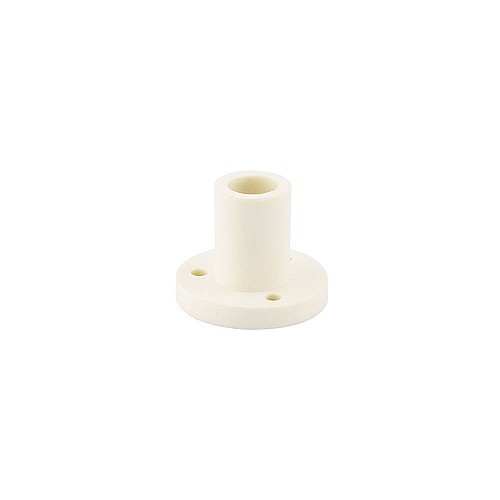

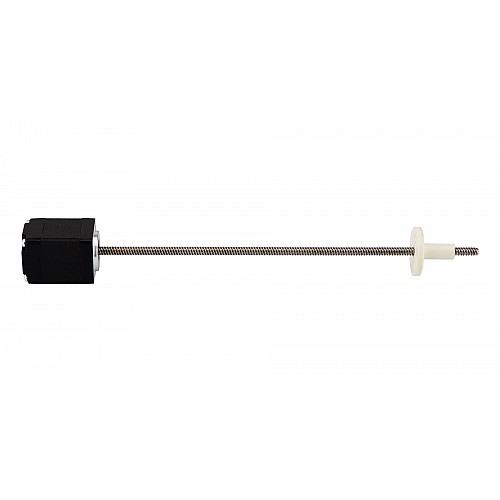

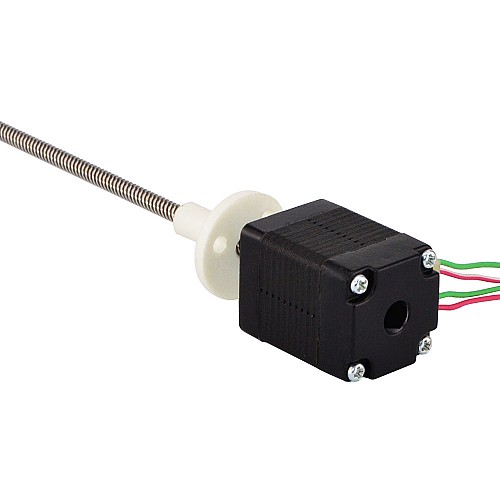

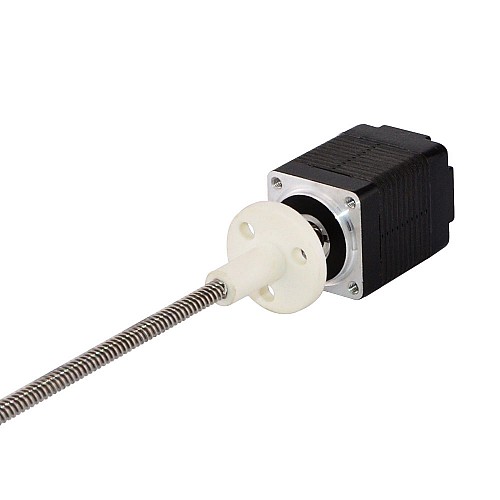

The motor part is 30mm body 1.8 degree 0.24A Nema 8 stepper motor, and it has integrated with a 3.5mm(0.1378") diameter 150mm(5.9055") length lead screw and a POM screw nut, the linear travel is 0.6096mm(0.024") per revolution. This model is almost exactly same as Haydon Kerk 21000 series size 8 external stepper motor linear actuator.

Electrical Specification

Manufacturer Part Number: 8E11S0244CC3-150RS(8E11S0244CC-150RS)
Motor Type: External Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 39N(300pps)
Rated Current/phase: 0.24A
Phase Resistance: 20.4ohms
Voltage: 5V
Inductance: 3.88mH±20%(1KHz)

Physical Specification

Frame Size: 20 x 20mm
Body Length: 30mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ3.5mm(0.1378")
Lead/Step: 0.003048mm(0.00012")
Lead Travel/Revolution: 0.6096mm(0.024")
Number of Leads: 4
Cable Length: 300mm
Weight : 43g

Connection

A+	A-	B+	B-
Red	Red/White	Green/White	Green

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 8E11S0244CC4-150RS.

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Inductance(mH)	3.83
Minimal Thrust(N) @300pps	39
Phase Resistance(ohms)	20.4
Rated Current(A)	0.24
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	30
Frame Size(mm)	Nema 08 (20 x 20)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
Lead Screw Diameter(mm)	3.5
Lead Screw Length(mm)	150
Lead Travel/Revolution(mm)	0.6096
Lead Travel/Step(mm)	0.003048
Linear Motor Type	External(Acme)
No. of Lead	4
