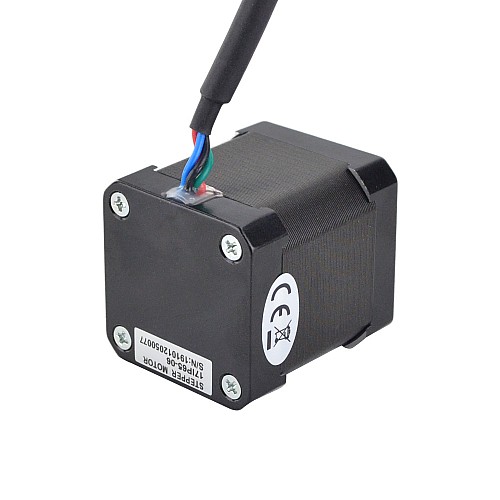

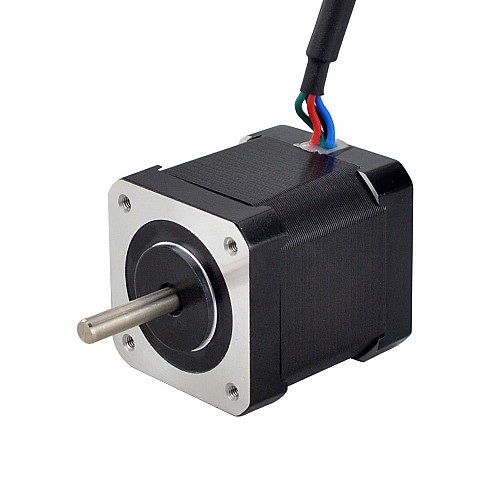

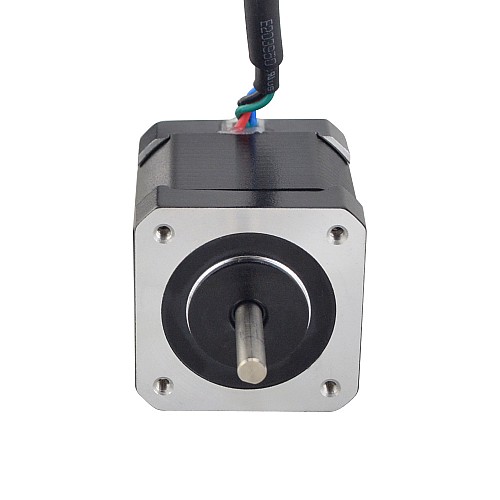

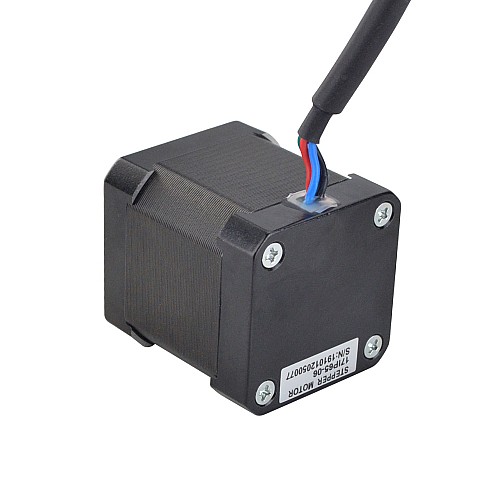

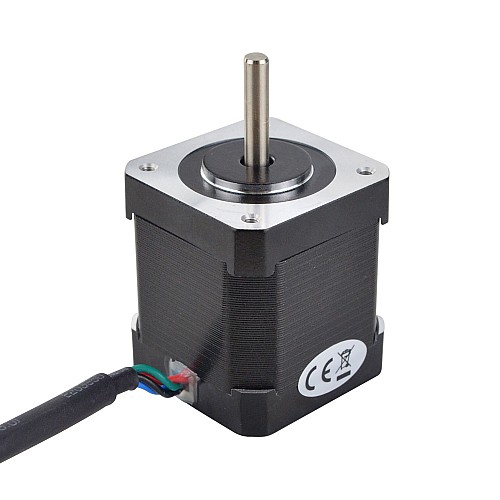

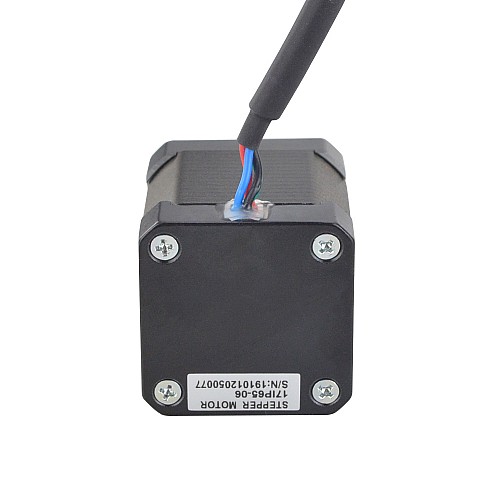

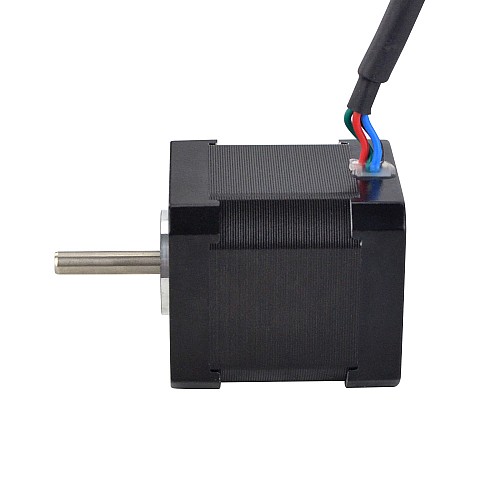

P Series IP65 Waterproof Nema 17 Stepper Motor 2.0A 0.59Nm(83.57oz.in)
0 reviews - Write a review
C$22.14
5 + C$20.85
10 + C$19.71
50 + C$18.69
100 + C$17.76
  • In Stock: 10000
  • Model: 17IP65-06
  • Gross Weight: 0.46kg
  • Certificated: ISO, CE, UKCA, RoHS
Sold: 1476

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This P series Nema 17 stepper motor with IP65 waterproof ratings and 0.59Nm(83.57oz.in), that meaning this IP65 stepper motor can be totally protected against dust, and can be protected against low pressure jets if water from all directions - limited ingress permitted.


Electrical Specification

  • Manufacturer Part Number: 17IP65-06
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 0.59Nm(83.57oz.in)
  • Rated Current/phase: 2.0A
  • Phase Resistance: 1.5ohms
  • Inductance: 3.0mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 47mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-cut Length: 24mm
  • Lead Length: 1000mm
  • IP Rating: IP65
  • Weight: 0.41kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Product Type
Product Type Waterproof Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque(Ncm) 59
Holding Torque(oz.in) 83.57
Inductance(mH) 3.0
Insulation Class B 130C(266F)
Open-loop/Closed-loop Open-loop
Phase Resistance(ohms) 1.5
Rated Current(A) 2.0
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 47
Frame Size(mm) Nema 17 (42 x 42)
Inventory Method Dedicated Inventory
IP Rating 65
Lead Length(mm) 1000
Output Shaft Type D
Shaft Diameter(mm) 5
Shaft Length(mm) 24
Single Shaft/Dual Shaft Single Shaft
Weight(Kg) 0.41


File Size
17IP65-06_Full_Datasheet.pdf 175.36KB Download
17IP65-06.STEP 510.74KB Download
17IP65-06_Torque_Curve.pdf 139.49KB Download
