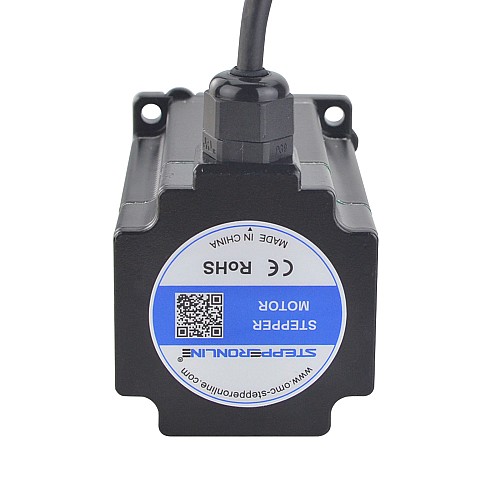

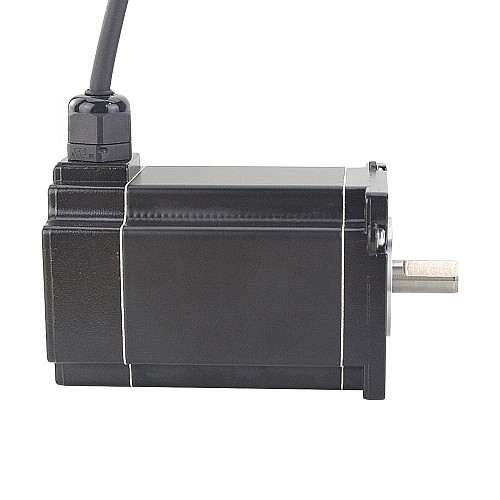

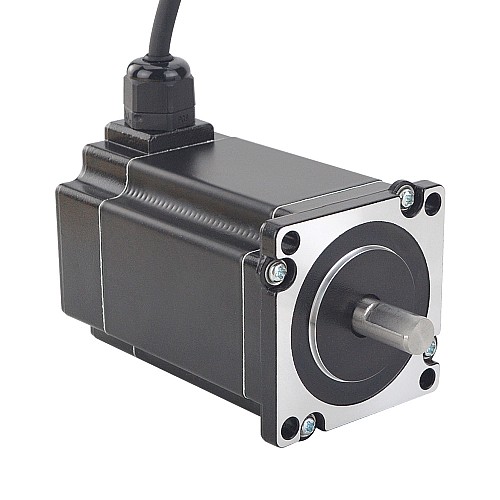

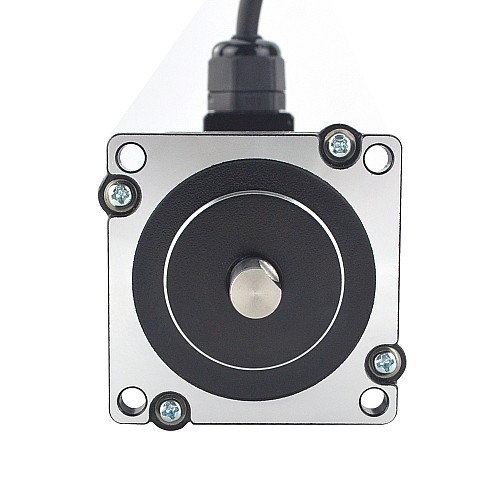

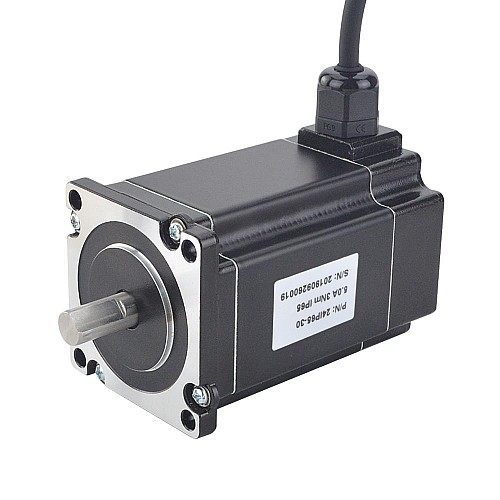

P Series IP65 Waterproof Nema 24 Stepper Motor 5.0A 3Nm(424.92oz.in)

0 reviews - Write a review

C$84.21

5 + C$79.33

10 + C$74.98

50 + C$71.08

100 + C$67.58

In Stock: 10000
Model: 24IP65-30
Gross Weight: 1.57kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This P series Nema 24 stepper motor with IP65 waterproof ratings and 3Nm(424.92oz.in), that meaning this IP65 stepper motor can be totally protected against dust, and can be protected against low pressure jets if water from all directions - limited ingress permitted.

Electrical Specification

Manufacturer Part Number: 24IP65-30
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 3Nm(424.92oz.in)
Rated Current/phase: 5.0A
Phase Resistance: 0.45ohms
Inductance: 1.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 60 x 60mm
Body Length: 100mm
Shaft Diameter: Φ10mm
Shaft Length: 21mm
D-Cut Shaft Length: 15mm
Lead Length: 1000mm
IP Rating: IP65
Weight: 1.4kg

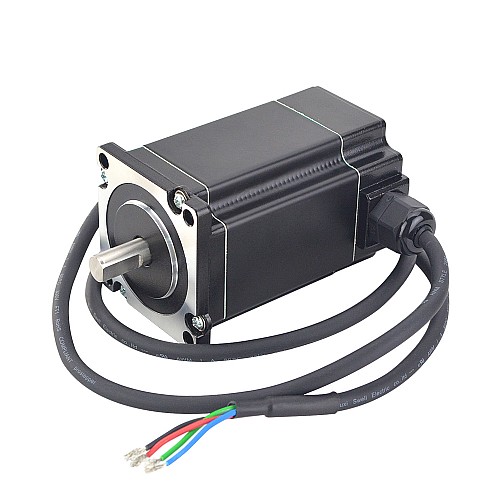

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Waterproof Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Holding Torque(Ncm)	300
Holding Torque(oz.in)	424.92
Inductance(mH)	1.8
Insulation Class	B 130C(266F)
Open-loop/Closed-loop	Open-loop
Phase Resistance(ohms)	0.45
Rated Current(A)	5.0
Physical Specification
Body Length(mm)	100
Frame Size(mm)	Nema 24 (60 x 60)
Inventory Method	Dedicated Inventory
IP Rating	65
Lead Length(mm)	1000
Output Shaft Type	D
Shaft Diameter(mm)	10
Shaft Length(mm)	21
Single Shaft/Dual Shaft	Single Shaft
Weight(Kg)	1.4
