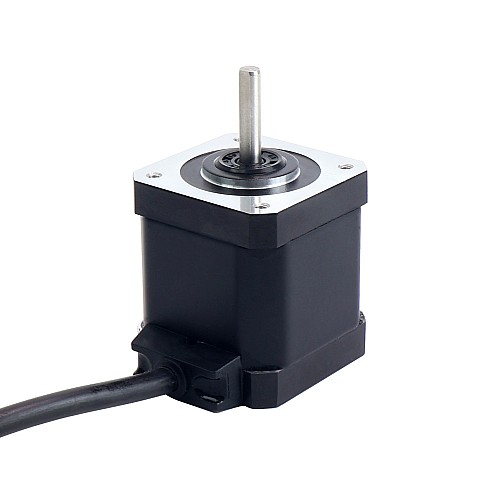

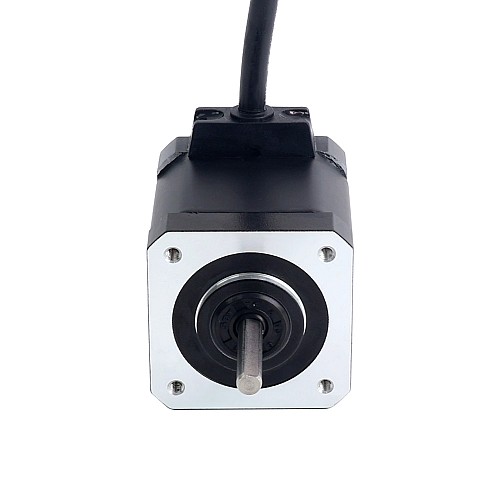

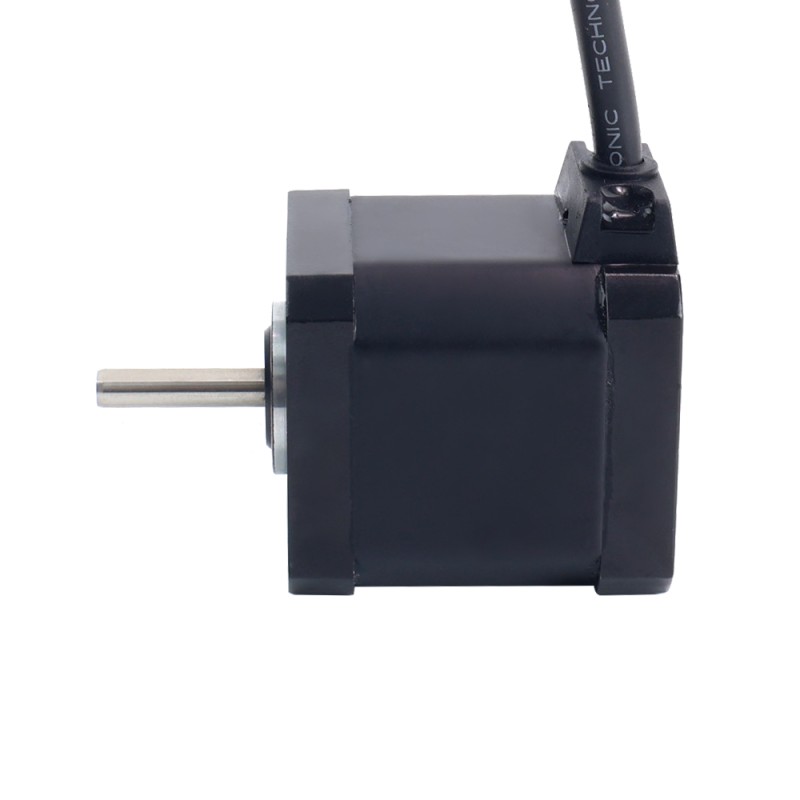

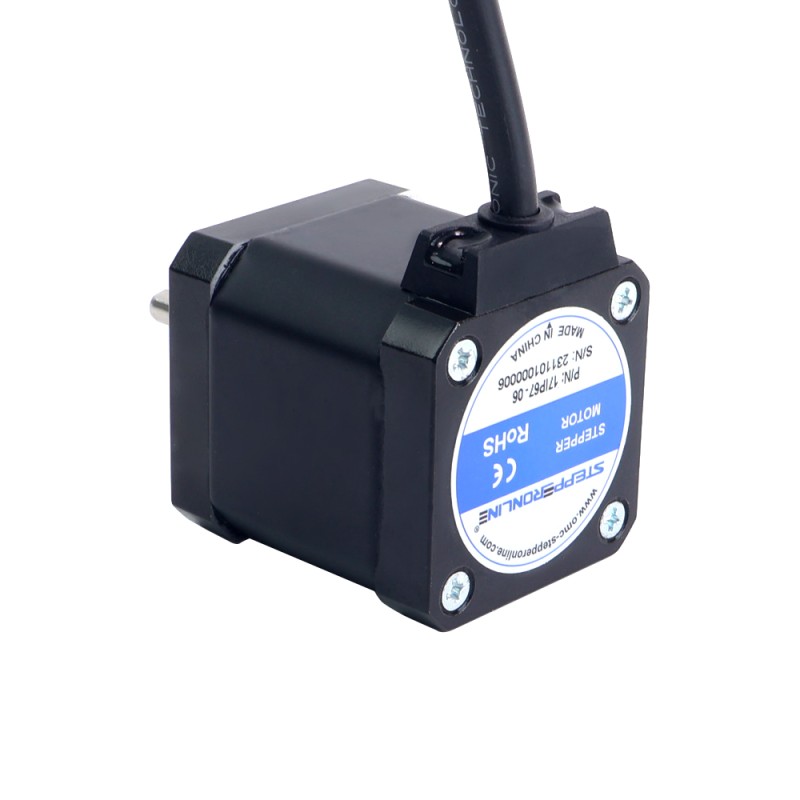

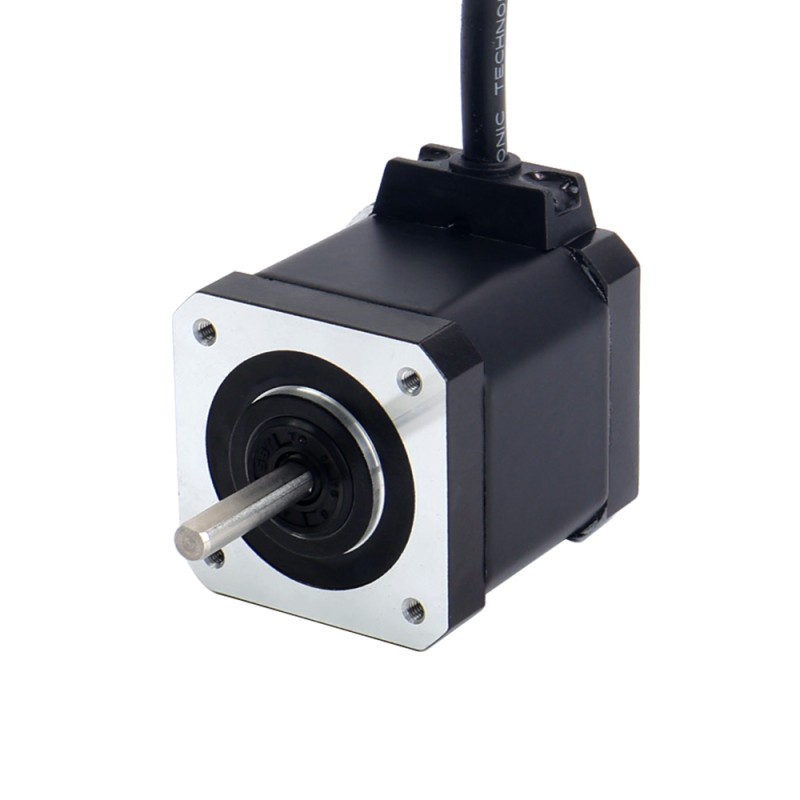

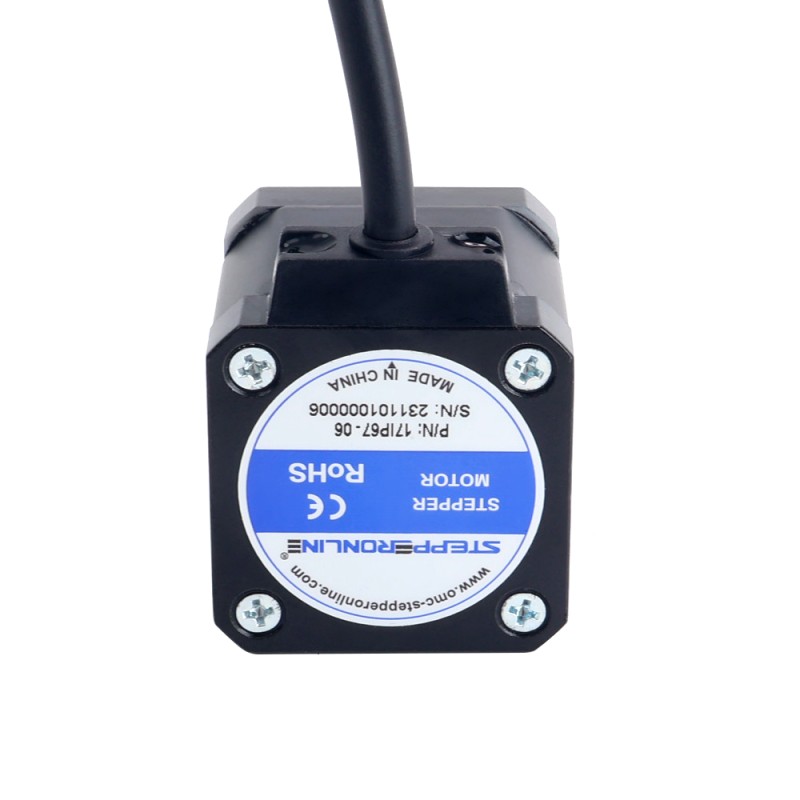

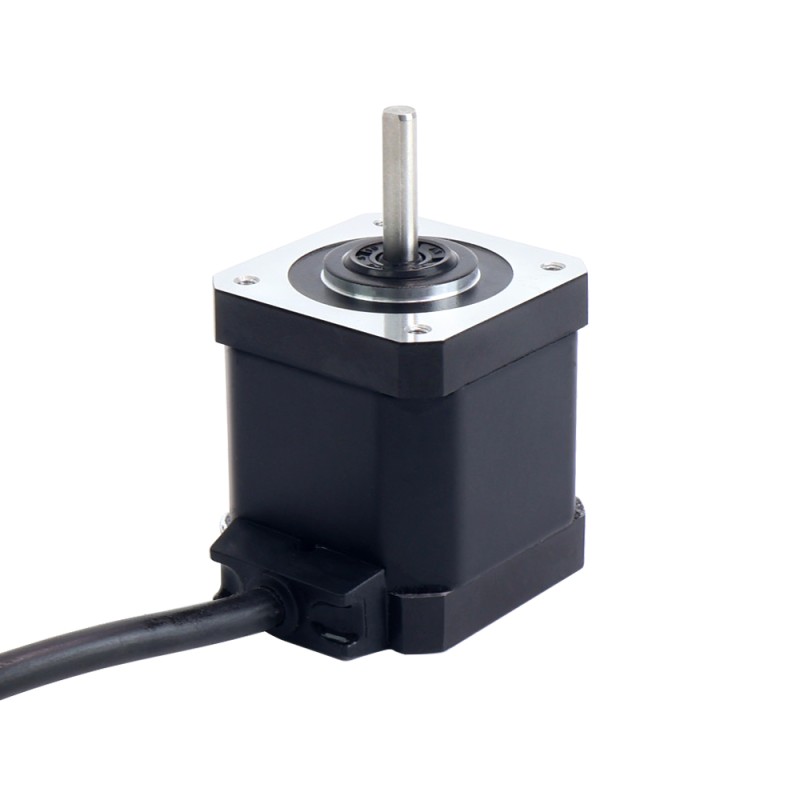

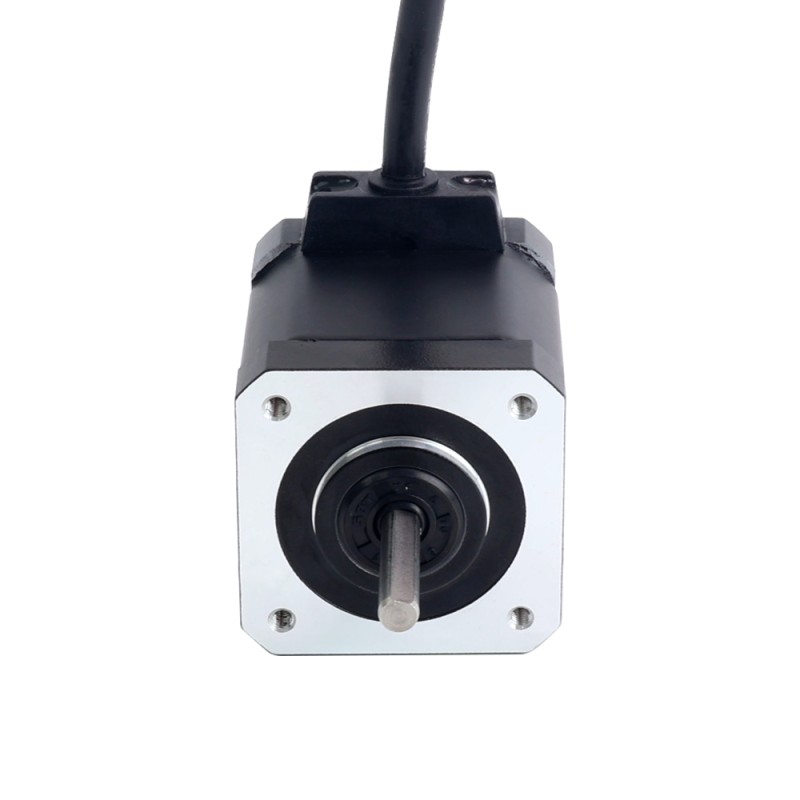

Name: P Series IP67 Waterproof Nema 17 Stepper Motor 2.0A 0.59Nm(83.57oz.in)
Brand: STEPPERONLINE
SKU: 17IP67-06
Price: 32.41 CAD
Availability: InStock

P Series IP67 Waterproof Nema 17 Stepper Motor 2.0A 0.59Nm(83.57oz.in) - 17IP67-06 | StepperOnline CA

17IP67-06

Shaft Diameter(mm)5

Shaft Length(mm)24

Holding Torque(Ncm)59

Rated Current(A)2.0

Question

Downloads

17IP67-06.pdfPDF · 119.76KB 17IP67-06.STEPSTEP · 778.46KBLog in to download 17IP67-06_Torque_Curve.pdfPDF · 247.25KB

Same series

Model	Shaft Diameter(mm)	Shaft Length(mm)	Holding Torque(Ncm)	Rated Current(A)	Price	Stock
17IP65-06	5	24	59	2.0	C$21.69	In stock

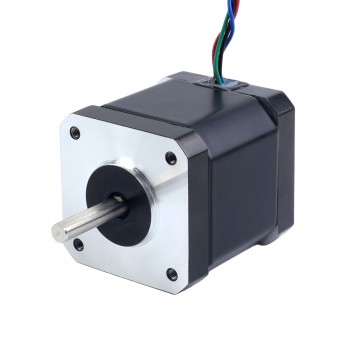

17IP65S-06	5	24	59	2.0	C$22.98	In stock
17IP67-06	5	24	59	2.0	C$32.41	In stock

P Series IP67 Waterproof Nema 17 Stepper Motor 2.0A 0.59Nm(83.57oz.in)

This P series Nema 17 stepper motor has an IP67 waterproof rating and 0.59Nm (83.57oz.in) holding to... Read More

0 reviews • Write a review

from

C$32.41

5 + C$30.54

10 + C$28.86

50 + C$27.36

100 + C$26.01

Click country for real-time stock

Ships from

China

United States (+C$7.71)

Germany (+C$9.98)

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This P series Nema 17 stepper motor has an IP67 waterproof rating and 0.59Nm (83.57oz.in) holding torque. Compared with the IP65 motor, IP67 can be totally protected against dust, and can be protected against the effects of temporary immersion between 15cm and 1m and duration of test 30 minutes.

Electrical Specification

Manufacturer Part Number: 17IP67-06
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 0.59Nm(83.57oz.in)
Rated Current/phase: 2.0A
Phase Resistance: 1.5ohms
Inductance: 3.0mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 47mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 24mm
Lead Length: 1000mm
IP Rating: IP67
Weight: 0.41kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Waterproof Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Holding Torque(Ncm)	59
Holding Torque(oz.in)	83.57
Inductance(mH)	3.0
Insulation Class	B 130C(266F)
Open-loop/Closed-loop	Open-loop
Phase Resistance(ohms)	1.5
Rated Current(A)	2.0
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	47
Frame Size(mm)	Nema 17 (42 x 42)
IP Rating	67
Lead Length(mm)	1000
Output Shaft Type	D
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Single Shaft
Weight(Kg)	0.41
