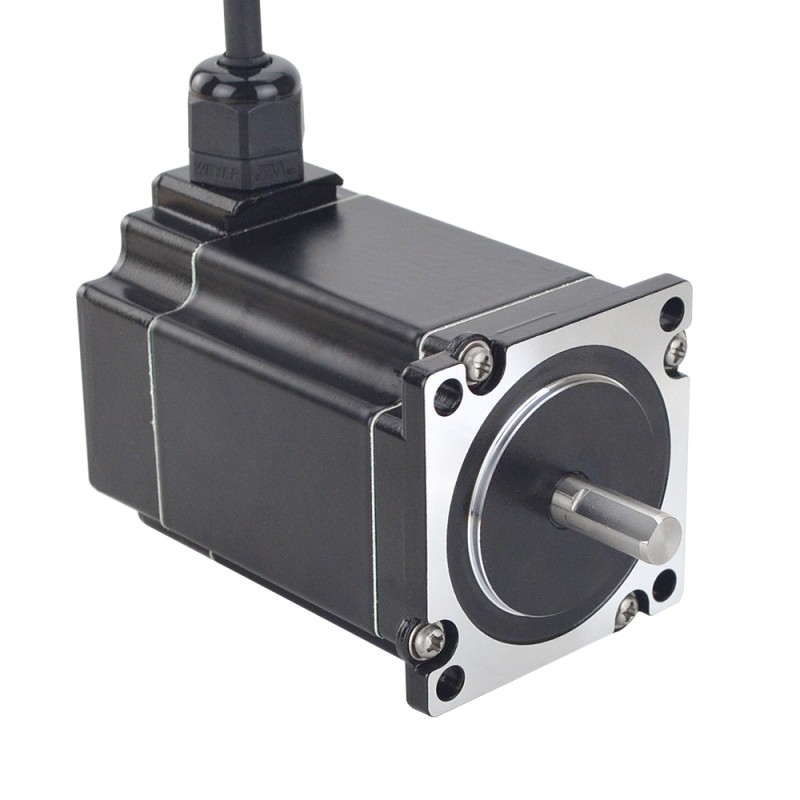

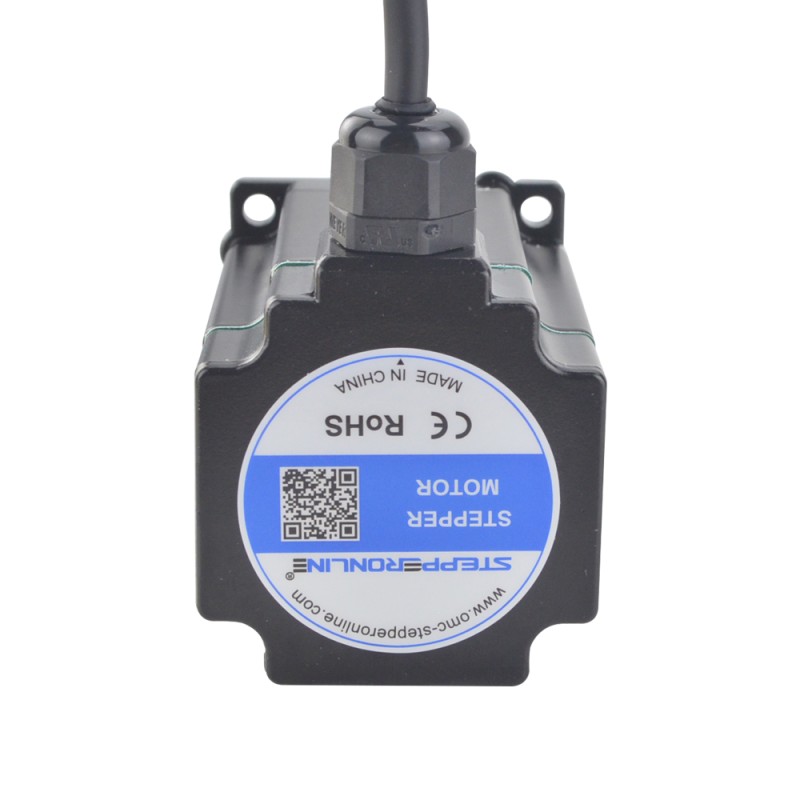

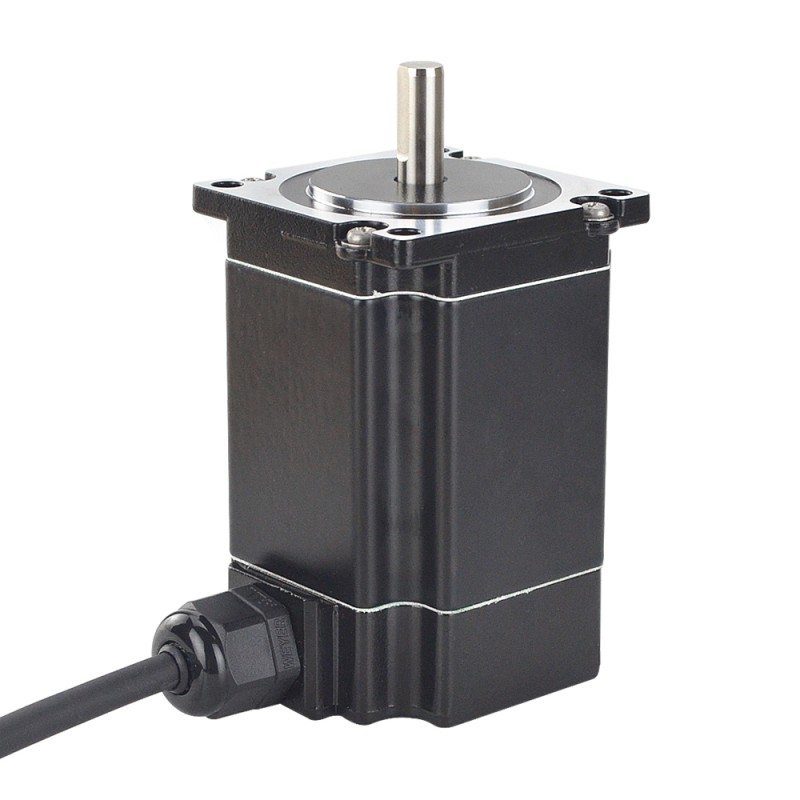

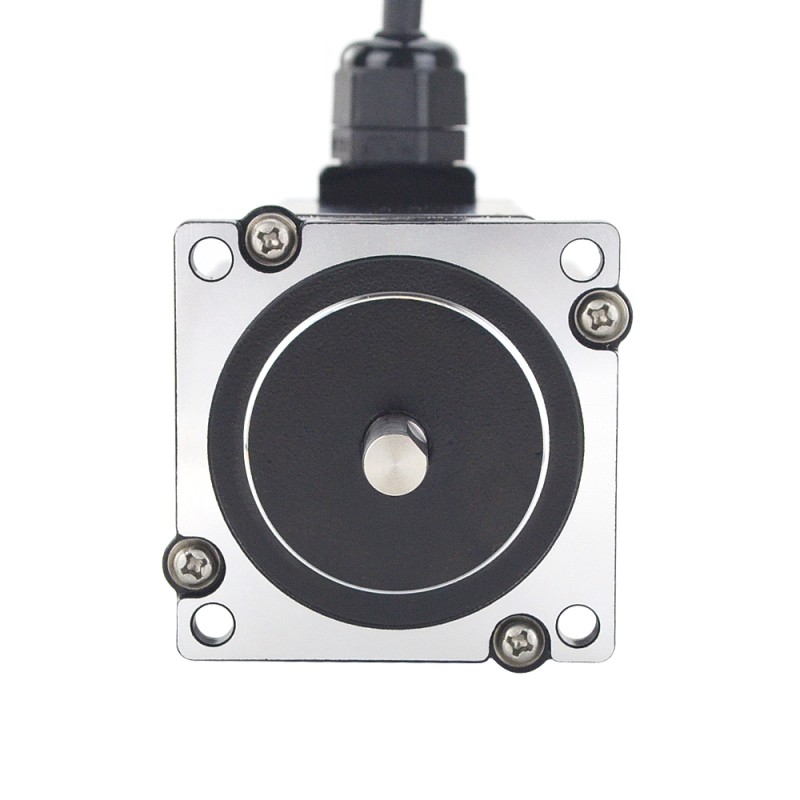

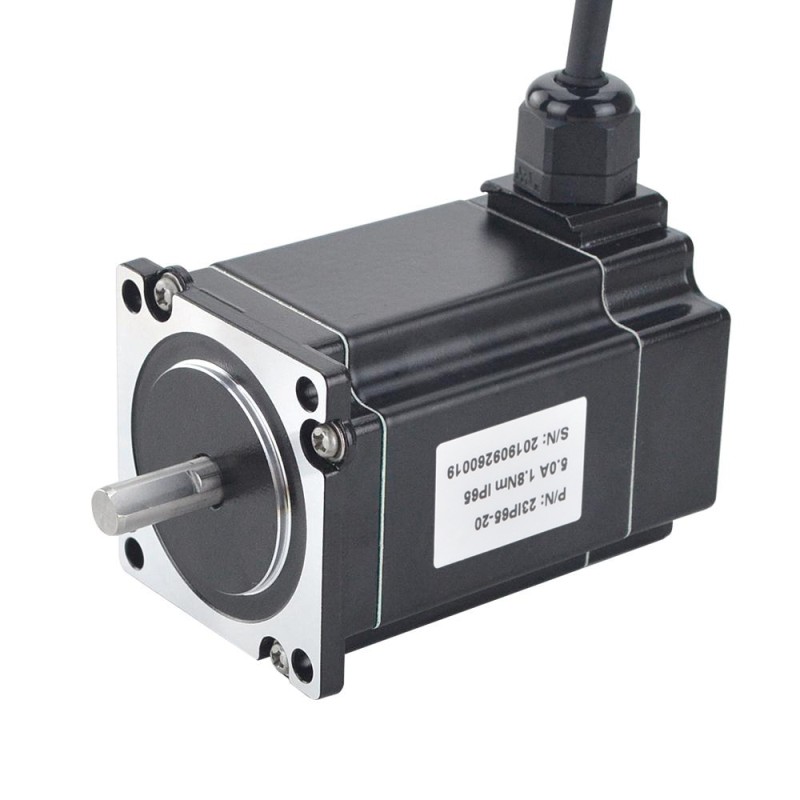

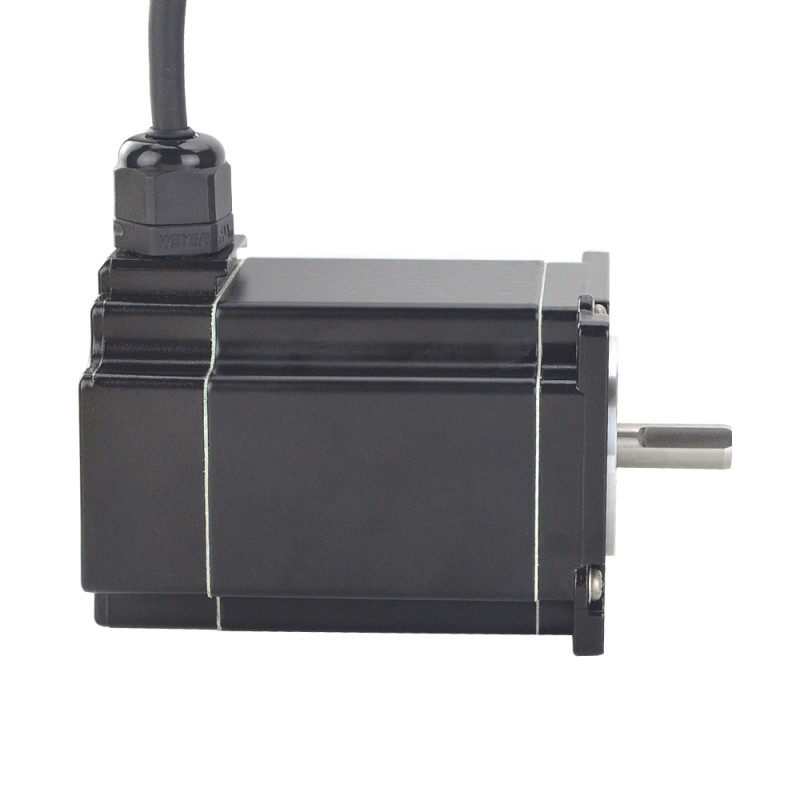

P Series IP65 Waterproof Nema 23 Stepper Motor 5.0A 2Nm(283.22oz.in)

P Series IP65 Waterproof Nema 23 Stepper Motor 5.0A 2Nm(283.22oz.in) - 23IP65-20 | StepperOnline CA
P Series IP65 Waterproof Nema 23 Stepper Motor 5.0A 2Nm(283.22oz.in) - 23IP65-20 | StepperOnline CA
P Series IP65 Waterproof Nema 23 Stepper Motor 5.0A 2Nm(283.22oz.in) - 23IP65-20 | StepperOnline CA
P Series IP65 Waterproof Nema 23 Stepper Motor 5.0A 2Nm(283.22oz.in) - 23IP65-20 | StepperOnline CA
P Series IP65 Waterproof Nema 23 Stepper Motor 5.0A 2Nm(283.22oz.in) - 23IP65-20 | StepperOnline CA
P Series IP65 Waterproof Nema 23 Stepper Motor 5.0A 2Nm(283.22oz.in) - 23IP65-20 | StepperOnline CA
P Series IP65 Waterproof Nema 23 Stepper Motor 5.0A 2Nm(283.22oz.in) - 23IP65-20 | StepperOnline CA
P Series IP65 Waterproof Nema 23 Stepper Motor 5.0A 2Nm(283.22oz.in) - 23IP65-20 | StepperOnline CA
P Series IP65 Waterproof Nema 23 Stepper Motor 5.0A 2Nm(283.22oz.in) - 23IP65-20 | StepperOnline CA
P Series IP65 Waterproof Nema 23 Stepper Motor 5.0A 2Nm(283.22oz.in) - 23IP65-20 | StepperOnline CA
P Series IP65 Waterproof Nema 23 Stepper Motor 5.0A 2Nm(283.22oz.in) - 23IP65-20 | StepperOnline CA
P Series IP65 Waterproof Nema 23 Stepper Motor 5.0A 2Nm(283.22oz.in) - 23IP65-20 | StepperOnline CA
23IP65-20
Shaft Diameter(mm)8
Shaft Length(mm)21
Holding Torque(Ncm)200
Rated Current(A)5.0
Question

Downloads

23IP65-20_Full_Datasheet.pdfPDF · 157.86KB23IP65-20.STEPSTEP · 1.67MBLog in to download23IP65-20_Torque_Curve.pdfPDF · 178.56KB
Same series
ModelShaft Diameter(mm)Shaft Length(mm)Holding Torque(Ncm)Rated Current(A)PriceStock
23IP65-128211204.0C$63.41In stock
23IP65-208212005.0C$72.31In stock
23IP67-128211204.0C$100.24In stock
23IP67-208212005.0C$108.84In stock
P Series IP65 Waterproof Nema 23 Stepper Motor 5.0A 2Nm(283.22oz.in)
This P series Nema 23 stepper motor with IP65 waterproof ratings and 2Nm(283,22oz.in), that meaning ... Read More
0 reviews • Write a review
from
C$72.31
5 + C$68.12
10 + C$64.38
50 + C$61.05
100 + C$58.03

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This P series Nema 23 stepper motor with IP65 waterproof ratings and 2Nm(283,22oz.in), that meaning this IP65 stepper motor can be totally protected against dust, and can be protected against low pressure jets if water from all directions - limited ingress permitted.


Electrical Specification

  • Manufacturer Part Number: 23IP65-20
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 2Nm(283.22oz.in)
  • Rated Current/phase: 5.0A
  • Phase Resistance: 0.44ohms
  • Inductance: 1.8mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 85.8mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 21mm
  • D-Cut Shaft Length: 15mm
  • Lead Length: 1000mm
  • IP Rating: IP65
  • Weight: 1.1kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Product Type
Product Type Waterproof Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque(Ncm) 200
Holding Torque(oz.in) 283.22
Inductance(mH) 1.8
Insulation Class B 130C(266F)
Open-loop/Closed-loop Open-loop
Phase Resistance(ohms) 0.44
Rated Current(A) 5.0
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 85.8
Frame Size(mm) Nema 23 (57 x 57)
IP Rating 65
Lead Length(mm) 1000
Output Shaft Type D
Shaft Diameter(mm) 8
Shaft Length(mm) 21
Single Shaft/Dual Shaft Single Shaft
Weight(Kg) 1.1

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Digital Stepper Driver 1.8-5.6A 20-50VDC for Nema 23, 24, 34 Stepper Motor
🔥 Bestseller
Digital Stepper Driver 1.8-5.6A 20-50VDC for Nema 23, 24, 34 Stepper Motor
The DM556T is a digital stepper driver with simple design and easy setup. By implementing advanced stepper control technology, this stepper driver is ..
from
C$33.23
Add to Cart
Add to Wish List Compare this Product
Quickview

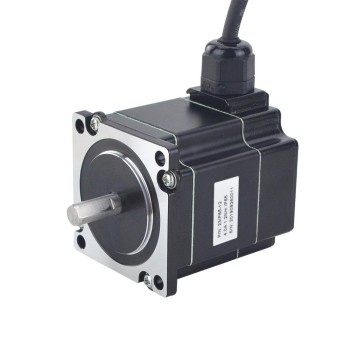

P Series IP65 Waterproof Nema 23 Stepper Motor 4.0A 1.2Nm(169.93oz.in)
