Name: RS-15-5 | RS-15-5 MEANWELL 15W 3A 5V Single Output Switching Power Supply | StepperOnline CA
Brand: MEANWELL
SKU: RS-15-5
Price: 11.17 CAD
Availability: InStock

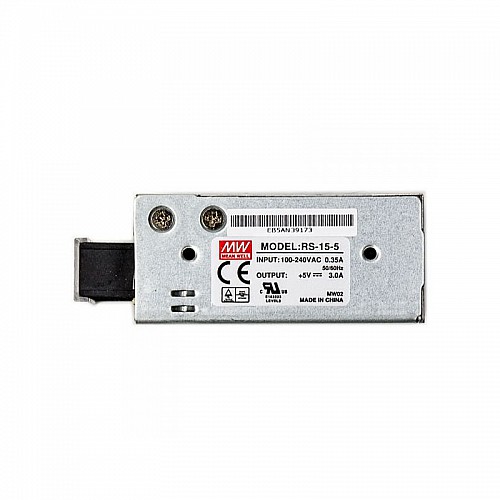

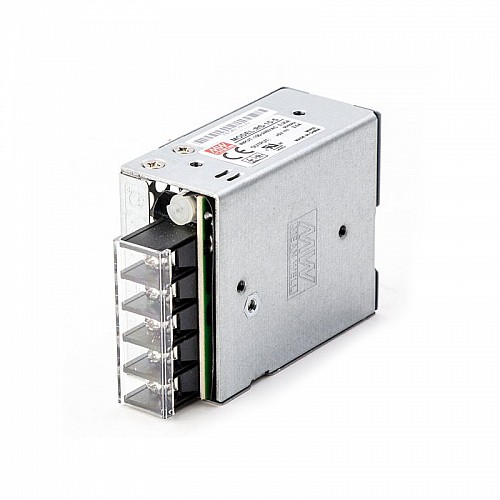

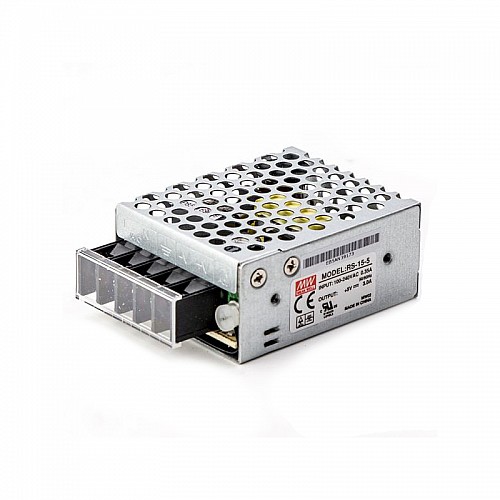

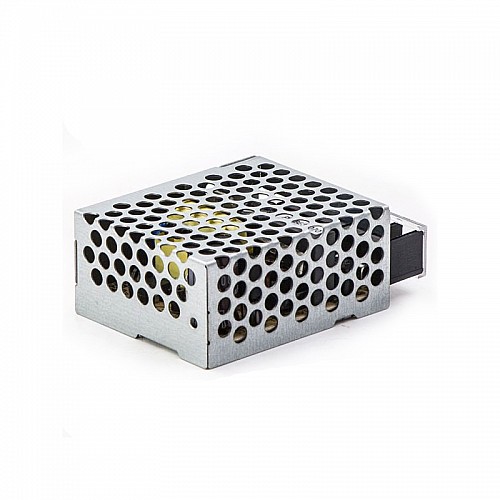

RS-15-5 MEANWELL 15W 3A 5V Single Output Switching Power Supply

0 reviews - Write a review

C$11.17

5 + C$10.85

10 + C$10.54

50 + C$10.24

100 + C$9.98

In Stock: 10000
Brand: MEANWELL
Model: RS-15-5
Gross Weight: 0.13kg
Certificated: ISO, CE, RoHS

Sold: 45

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Features

Brand MEANWELL
5V DC 3A output
AC input voltage range: 85 ~ 264VAC
Rated power: 15W
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
No load power consumption<0.5W
All using 105℃ long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70℃
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty

Electrical Specification
Efficiency(%)	77%
Max. Output Current(A)	3
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	62.5 x 51 x 28
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	85 - 264 / 120 - 370
Output Voltage(VDC)	5
PFC Function	No
Power Type	Switching Power Supply
Power(W)	15
Physical Specification
Inventory Method	Dedicated Inventory
