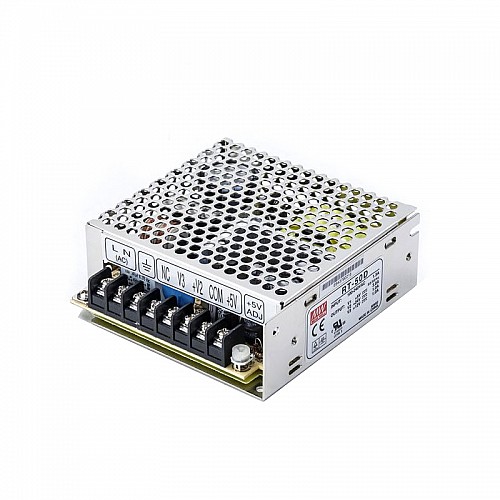

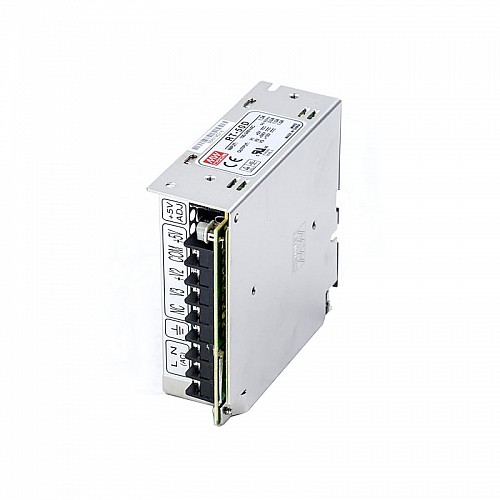

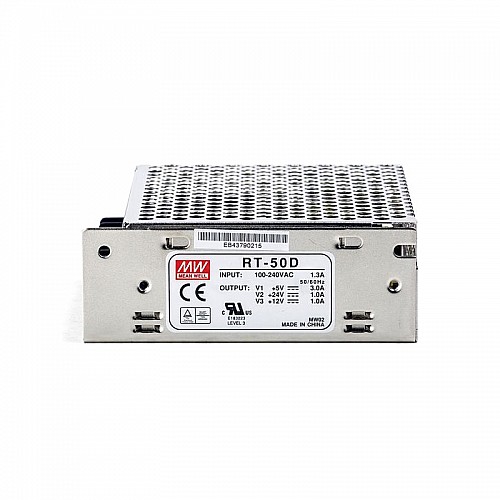

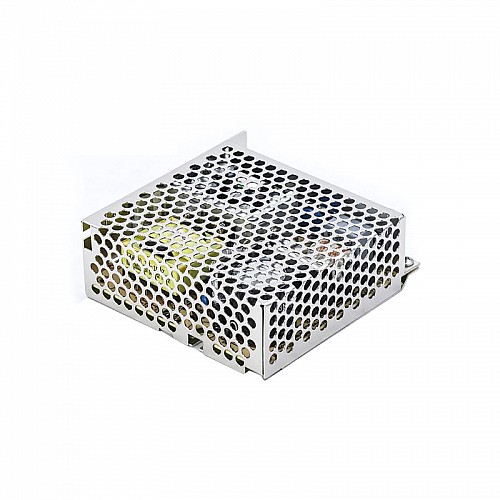

Name: RT-50D | RT-50D MEANWELL 51W Triple Output Switching Power Supply | StepperOnline CA
Brand: MEANWELL
SKU: RT-50D
Price: 28.8 CAD
Availability: PreOrder

RT-50D MEANWELL 51W Triple Output Switching Power Supply

0 reviews - Write a review

C$28.80

5 + C$27.97

10 + C$27.17

50 + C$26.42

100 + C$25.71

In Stock: Pre-order
Brand: MEANWELL
Model: RT-50D
Gross Weight: 0.41kg
Certificated: ISO, CE, RoHS

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Features

Brand MEANWELL
5V DC 3A output
AC input voltage range: 88 ~ 264VAC
Rated power: 51W
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105℃ long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70℃
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty

Electrical Specification
Efficiency(%)	78%
Max. Output Current(A)	5, 1.5, 1
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	99 x 97 x 36
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	88 - 264 / 124 - 370
Output Voltage(VDC)	5, 24, 12
PFC Function	No
Power Type	Switching Power Supply
Power(W)	51
Physical Specification
Inventory Method	Shared Inventory
