Name: RT-65B | RT-65B MEANWELL 64.6W Triple Output Switching Power Supply | StepperOnline CA
Brand: MEANWELL
SKU: RT-65B
Price: 32.93 CAD
Availability: InStock

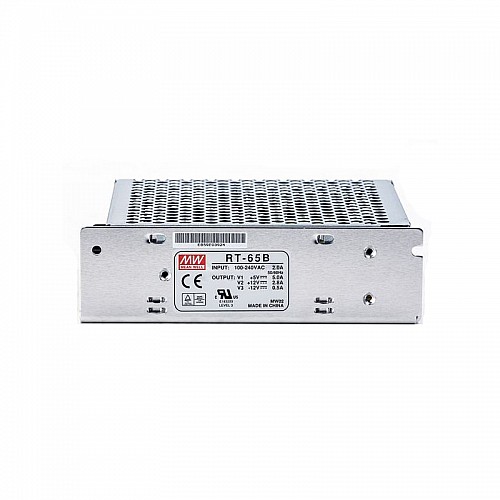

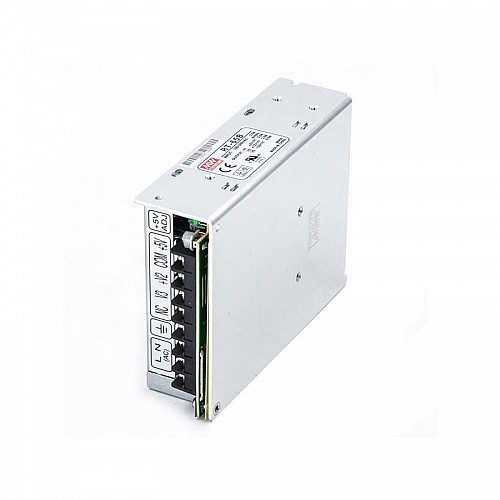

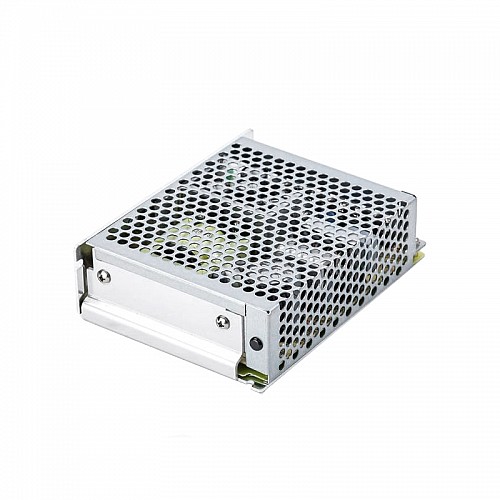

RT-65B MEANWELL 64.6W Triple Output Switching Power Supply

0 reviews - Write a review

C$32.93

5 + C$31.97

10 + C$31.05

50 + C$30.19

100 + C$29.39

In Stock: 10000
Brand: MEANWELL
Model: RT-65B
Gross Weight: 0.49kg
Certificated: ISO, CE, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Features

Brand MEANWELL
5V DC 5A output
AC input voltage range: 88 ~ 264VAC
Rated power: 64.6W
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105℃ long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70℃
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty

Product Type
Product Type	Switching Power Supply
Electrical Specification
Efficiency(%)	76%
Max. Output Current(A)	8, 3.5, 1
Power Supply Specification
Brand	MEANWELL
Dim.(LxWxH)(mm)	129 x 98 x 38
Input Frequency(Hz)	47 - 63
Input Voltage(VAC/VDC)	88 - 264 / 124 - 370
Output Voltage(VDC)	5
PFC Function	No
Power(W)	64.6
Physical Specification
Inventory Method	Dedicated Inventory
