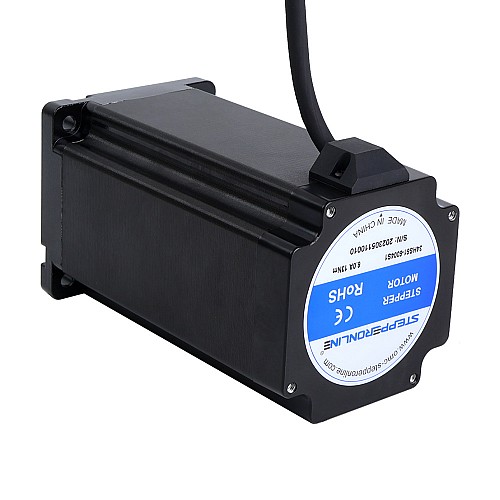

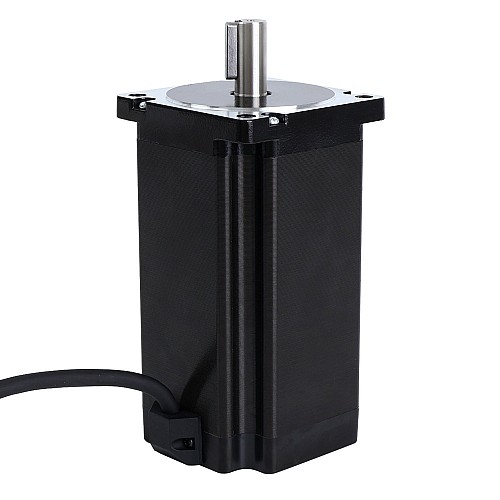

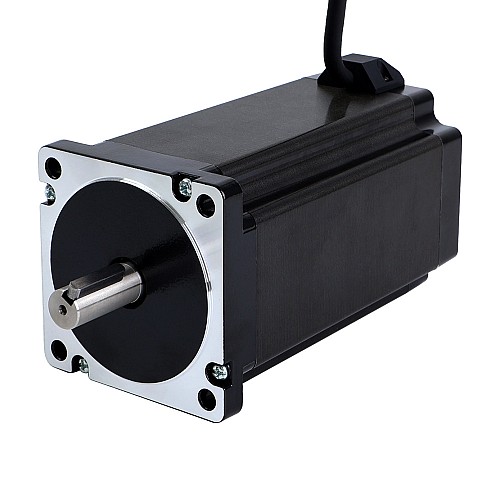

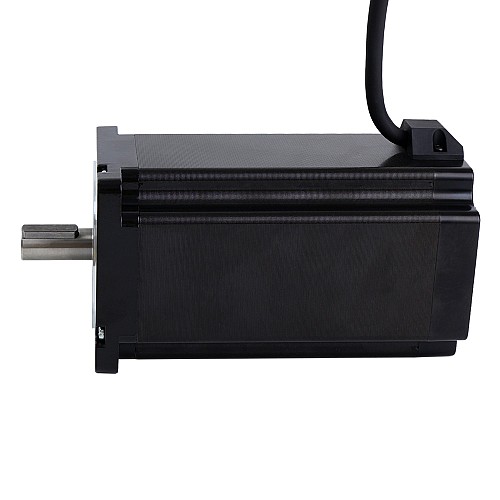

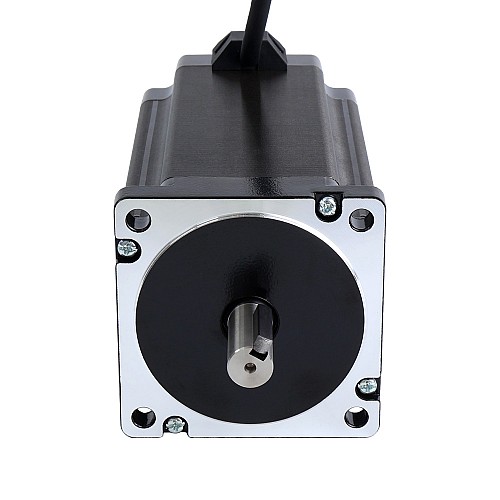

S Series Nema 34 Stepper Motor 13.0Nm(1841oz.in) 14mm Key-way Shaft 1m Cable

2 reviews - Write a review

C$108.60

5 + C$103.50

10 + C$98.83

50 + C$94.59

100 + C$90.69

In Stock: 10000
Model: 34HS61-6004S1
Gross Weight: 6.60kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 34HS61-6004S1
Number Of Phase: 2
Step Angle: 1.8deg
Holding Torque: 13Nm(1841oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.9ohms± 10%
Inductance: 7.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 156mm
Shaft Diameter: Φ14mm
Shaft Length: 32mm
Keyway Shaft Length: 25mm
Number of Leads: 4
Lead Length: 1000mm
Weight: 5.7kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	1300
Holding Torque(oz.in)	1841
Inductance(mH)	7.5
Phase Resistance(ohms)	0.9
Rated Current(A)	6.0
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	156
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	1000
No. of Lead	4
Output Shaft Type	Keyway
Product Series	S
Shaft Diameter(mm)	14
Shaft Length(mm)	32
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	5700
