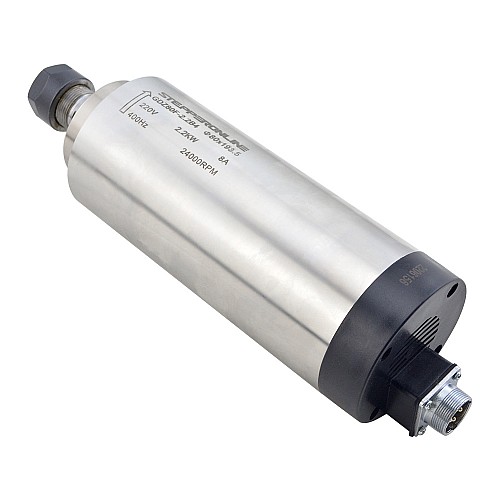

Spindle Motor Air Cooled 220V 2.2KW 24000RPM 400Hz ER20 Collet Wood Engraving Milling Machine 4 Bearings

Spindle Motor Air Cooled 220V 2.2KW 24000RPM 400Hz ER20 Collet Wood Engraving Milling Machine STEPPERONLINE CNC VFD Motor 220V AC Spindle 4 Bearings - GDZ80F-2.2B4 | StepperOnline CA

Spindle Motor Air Cooled 220V 2.2KW 24000RPM 400Hz ER20 Collet Wood Engraving Milling Machine 4 Bearings

0 reviews - Write a review

C$170.50

5 + C$165.52

10 + C$160.82

50 + C$156.39

100 + C$152.19

In Stock: 10000
Model: GDZ80F-2.2B4
Gross Weight: 5.15kg
Certificated: ISO

Sold: 28

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Specification

Manufacturer Part Number: GDZ80F-2.2B4
Material: Stainless steel
Size: Ø80x193.5(Middle body diameter: 80 mm, Length:193.5mm)
Power: 2.2KW
Voltage: 220VAC
Current: 8A
Frequency: 0 ~ 400Hz
Speed: 0 ~ 24000RPM
Cooling: Air cooled
Bearing Lubrication: Grease
Collet size: ER20 Collet(6mm)
Weight: 4.75kg

Operating Environment
Cooling Method	Air cooled
Spindle Motor Specification
Bearing Lubrication	Grease
Body Length(mm)	193.5
Collet Size	ER20
Diameter(mm)	80
Material	Stainless steel
Power(Kw)	2.2
Shape	Round
Voltage(VAC)	220
Electrical Specification
Current(A)	8
Frequency(Hz)	0 - 400
Speed(rpm)	0 - 24000
Physical Specification
Bearings	2x7005, 2x7002
Weight(Kg)	4.75
