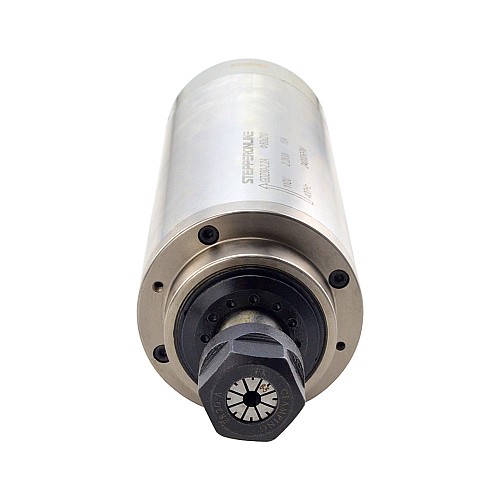

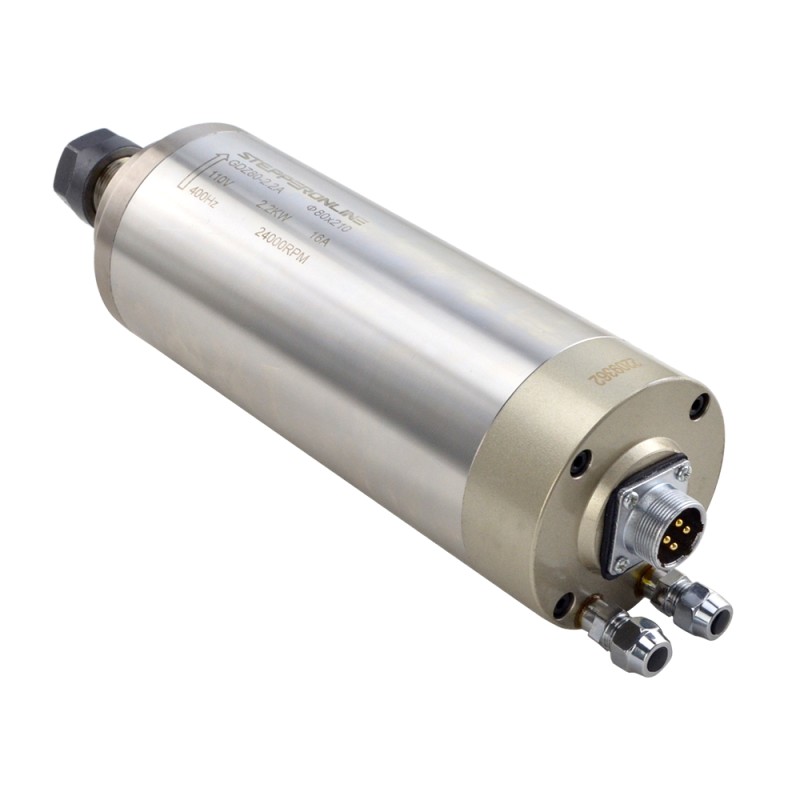

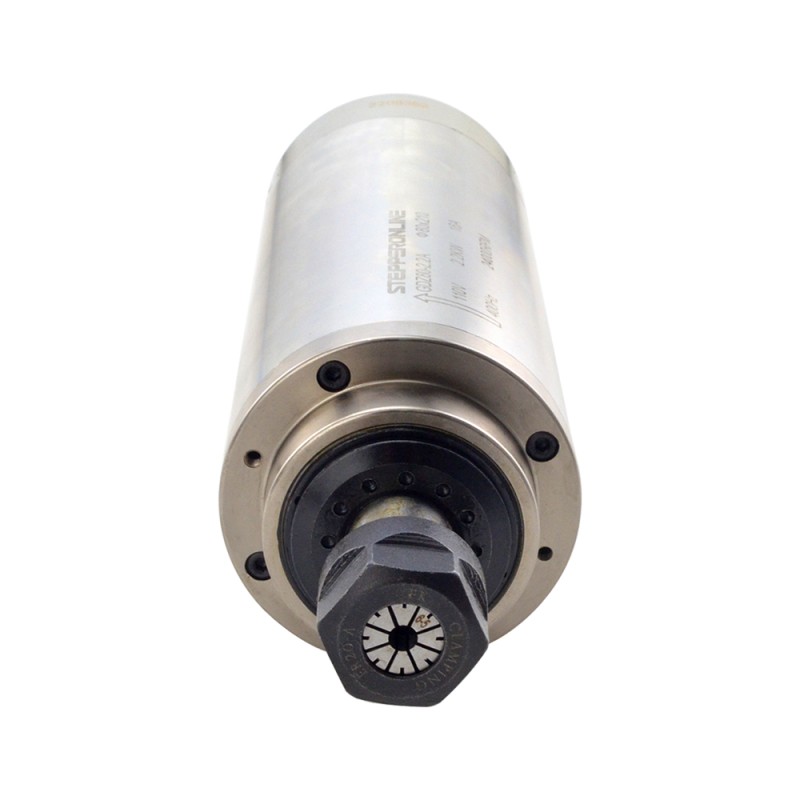

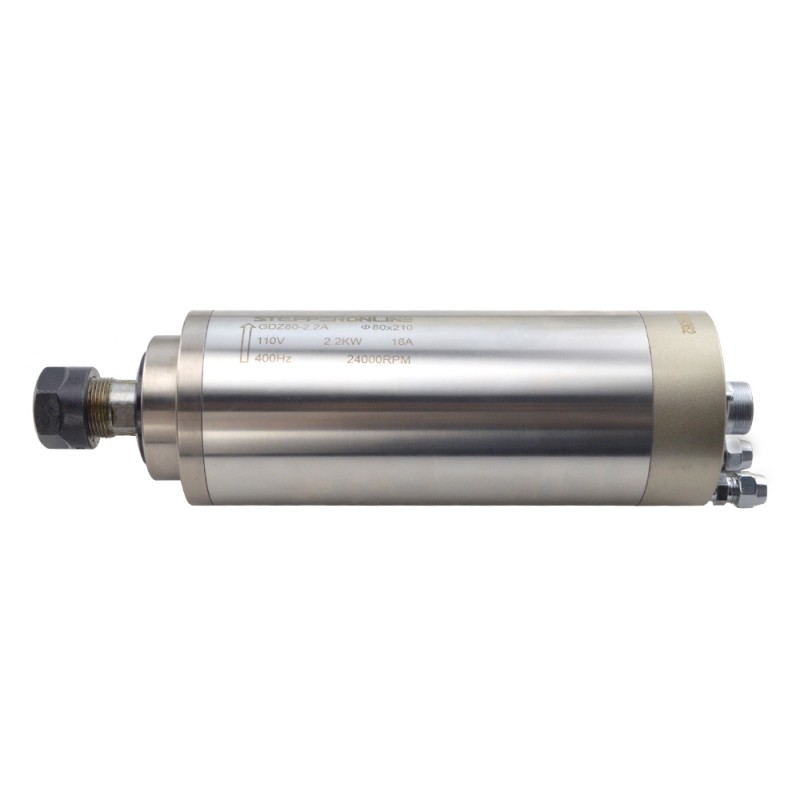

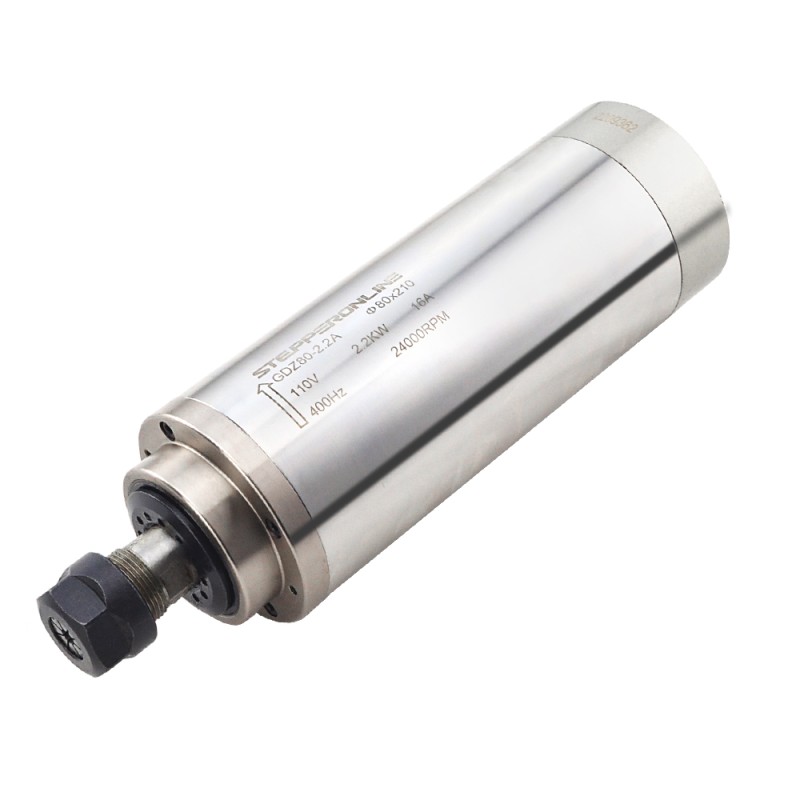

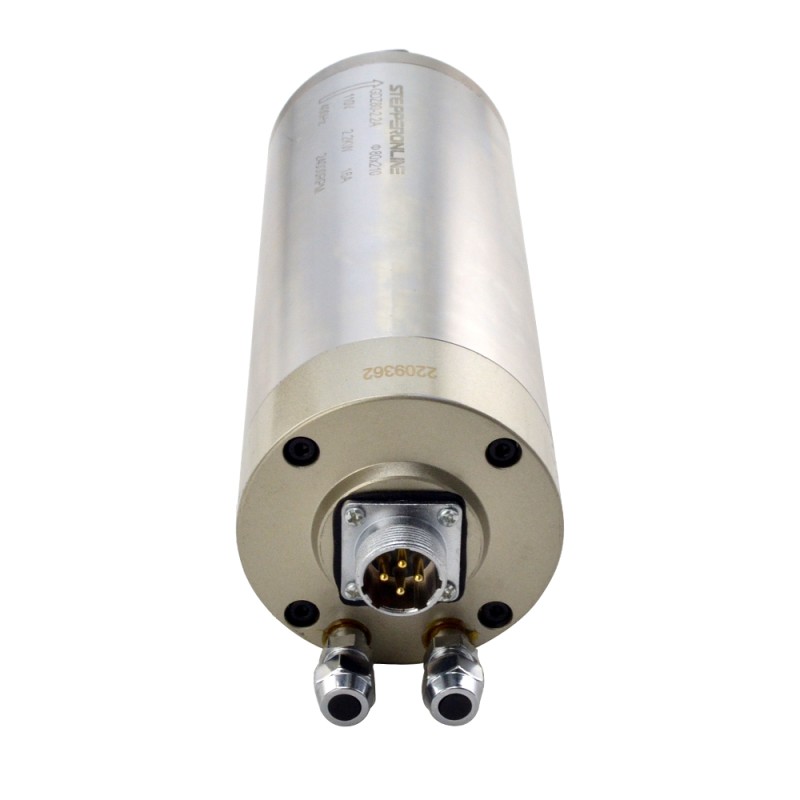

Name: CNC Spindle Motor Water Cooled 110V 2.2KW 24000RPM 400Hz ER20 Collet
Brand: STEPPERONLINE
SKU: GDZ80-2.2A
Price: 187.20 CAD
Availability: PreOrder
Rating: 5 (1 reviews)

CNC Spindle Motor Water Cooled 110V 2.2KW 24000RPM 400Hz ER20 Collet

Pre-order

GDZ80-2.2A

Shape Round

Body Length(mm)210

Voltage(VAC)110

Frequency(Hz)0 - 400

Question

Ordering & ComplianceFor purchasing

Min. order: 5

Downloads

GDZ80-2.2A_Full_Datasheet.pdfPDF · 88.41KB

Same series

Model	Shape	Body Length(mm)	Voltage(VAC)	Frequency(Hz)	Price	Stock
GDZ80-2.2A	Round	210	110	0 - 400	C$187.20	Backorder
GDZ80-2.2B	Round	210	220	0 - 400	C$158.40	Backorder
GDZ93x82-2.2B4	Square	174	220	400	C$380.16	Backorder
GDZ93x82-2.2C4	Square	174	380	0 - 300	C$380.16	Backorder
GDZL80x73-2.2B4	Square	193.5	220	0 - 400	C$178.57	Backorder

CNC Spindle Motor Water Cooled 110V 2.2KW 24000RPM 400Hz ER20 Collet

Specification Manufacturer Part Number: GDZ80-2.2A Material: Stainless steel Size: Ø80x210(Midd... Read More

1 reviews • Write a review

from

C$187.20

5 + C$181.73

10 + C$176.58

50 + C$171.71

100 + C$167.10

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Add to Wish List Compare this Product

This product has a minimum quantity of 5

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Manufacturer Part Number: GDZ80-2.2A
Material: Stainless steel
Size: Ø80x210(Middle body diameter: 80mm, Length:210mm)
Power: 2.2KW
Voltage: 110VAC
Current: 16A
Frequency: 0 ~ 400Hz
Speed: 0 ~ 24000RPM
Cooling: Water cooled
Bearing Lubrication: Grease
Collet size: ER20 Collet(6mm)
Bearings: 2x7005C(P4 DT), 1x7002C(P4)
Weight: 5.25kg

Operating Environment
Cooling Method	Water cooled
Product Type
Product Type	Spindle Motor
Spindle Motor Specification
Bearing Lubrication	Grease
Body Length(mm)	210
Collet Size	ER20
Diameter(mm)	80
Material	Stainless steel
Power(Kw)	2.2
Shape	Round
Voltage(VAC)	110
Electrical Specification
Current(A)	16
Frequency(Hz)	0 - 400
Speed(rpm)	0 - 24000
Physical Specification
Bearings	2x7005C(P4 DT), 1x7002C(P4)
Weight(Kg)	5.25

Also Bought

Quickview

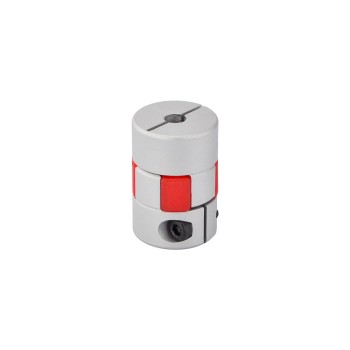

8mm - 14mm Flexible Jaw Coupling 30x40mm CNC Stepper Motor Shaft Coupler

Shaft: 8.0mm - 14.0mm P/N: ST-JC18 Diameter: 30mm Length: 40mm Sleeve Material: Polyurethane Body Material: Aluminum Alloy..

from

C$0.00

Add to Cart

Add to Wish List Compare this Product

Quickview

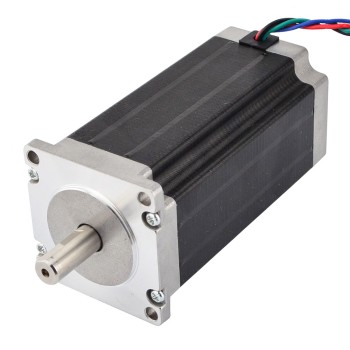

Nema 23 Bipolar 3Nm(425oz.in) 3.5A 57x57x113mm 4 Wires CNC Stepper Motor

This bipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x113mm. It has 4 wires, each phase draws 3.5A, with holding torque 3.0Nm(425oz..

from

C$44.92

Add to Cart

Add to Wish List Compare this Product

Quickview

Pre-order

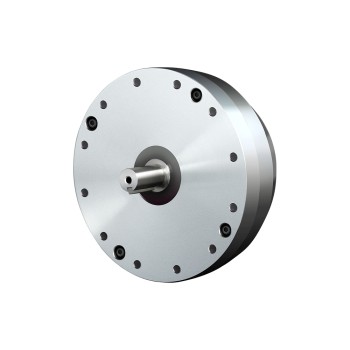

HHT Series Harmonic Drive Gearbox Φ170mm Ratio 50:1 Backlash 20arcsec 16mm Input Diameter
