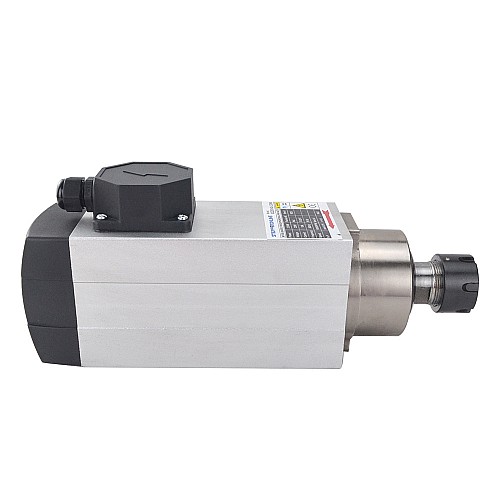

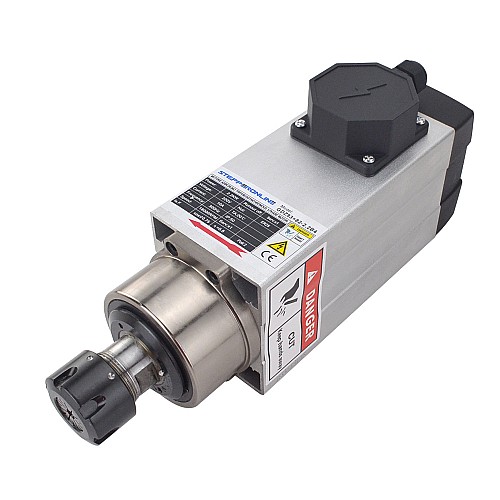

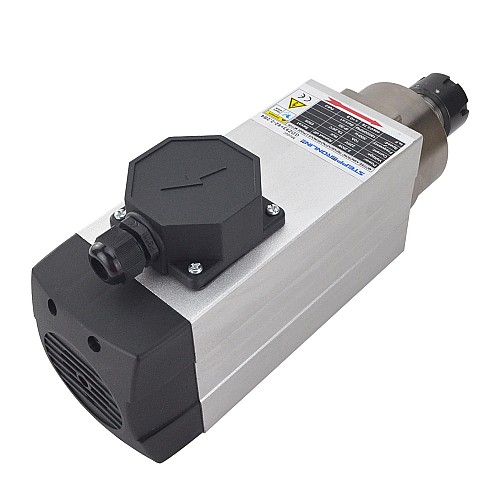

CNC Spindle Motor Air Cooled 220V 2.2KW 18000RPM 400Hz ER25 Collet

0 reviews - Write a review

C$388.03

5 + C$376.69

10 + C$366.00

50 + C$355.91

100 + C$346.36

In Stock: Pre-order
Model: GDZ93x82-2.2B4
Gross Weight: 8.00kg
Certificated: ISO

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Specification

Manufacturer Part Number: GDZ93x82-2.2B4
Material: Stainless steel
Size: 172x82(Length: 172mm, Width: 82mm)
Power: 2.2KW
Voltage: 220VAC
Current: 10A
Frequency: 0 ~ 400Hz
Speed: 0 ~ 18000RPM

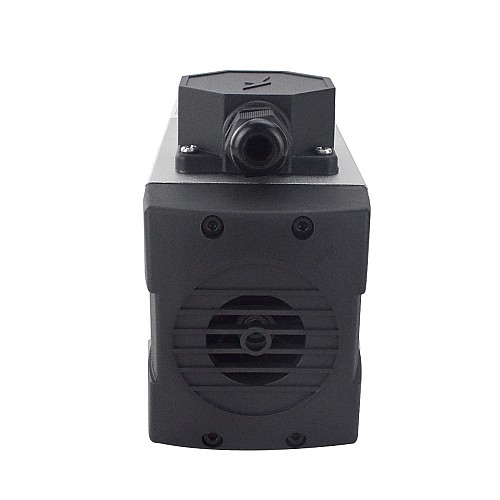

Cooling: Air cooled
Bearing Lubrication: Grease

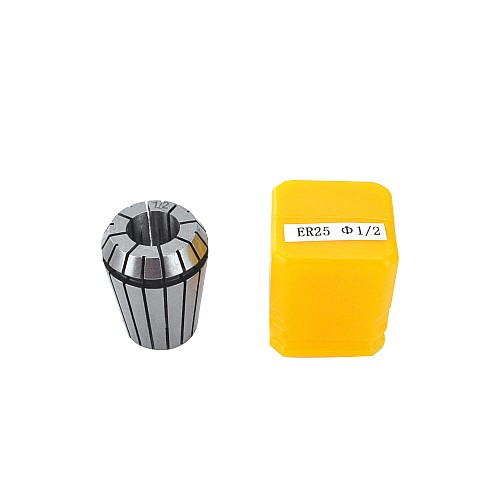

Collet size: ER25 Collet(6mm, 12.7mm)
Bearings: 2x7007(P4), 2x7002C(P4)
Weight: 7.5kg

Operating Environment
Cooling Method	Air cooled
Product Type
Product Type	Spindle Motor
Spindle Motor Specification
Bearing Lubrication	Grease
Body Height(mm)	93
Body Length(mm)	174
Body Width(mm)	82
Collet Size	ER25
Material	Stainless steel
Power(Kw)	2.2
Shape	Square
Voltage(VAC)	220
Electrical Specification
Current(A)	10
Frequency(Hz)	0 - 300
Speed(rpm)	0 - 18000
Physical Specification
Inventory Method	Dedicated Inventory
Weight(Kg)	7.5
