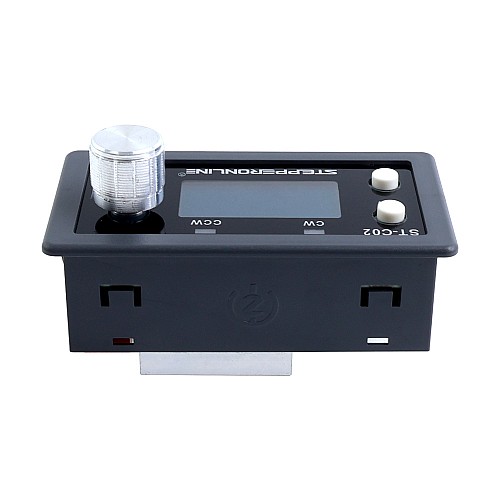

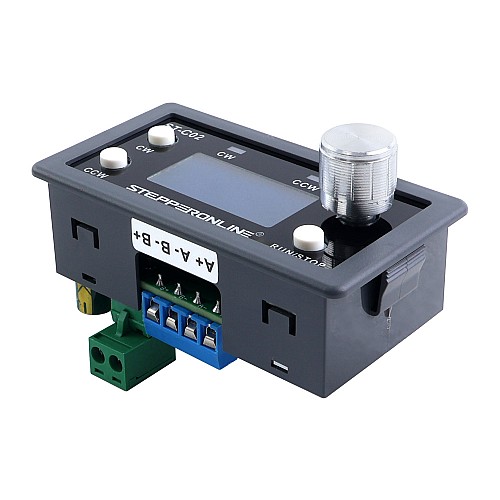

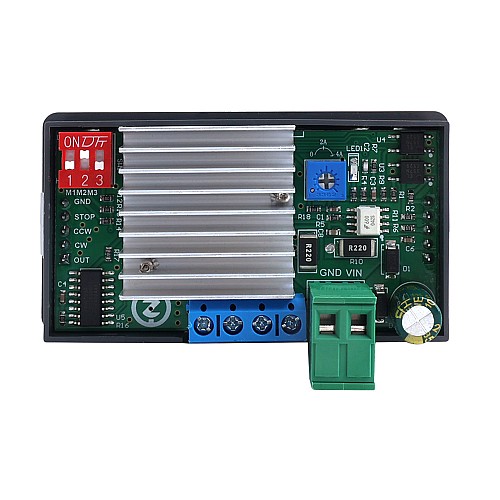

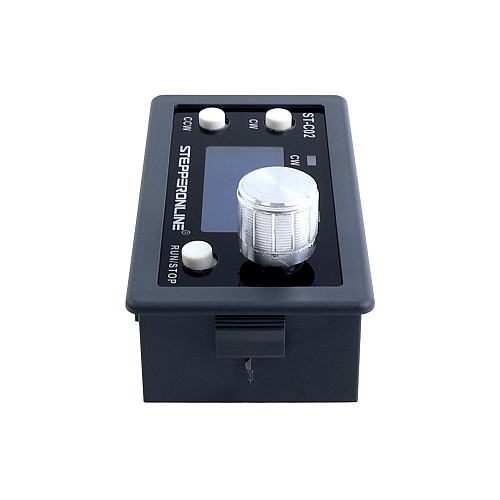

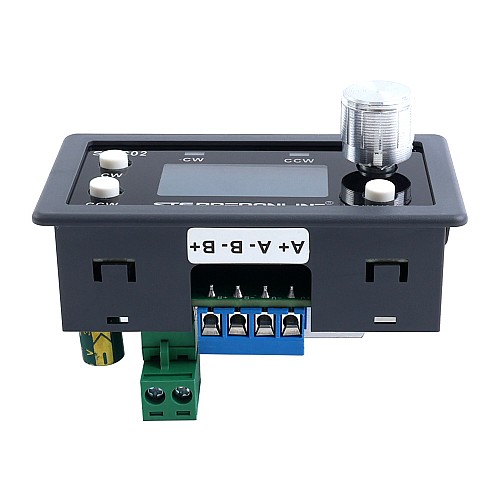

Stepper Driver & Controller 10-30VDC 0-4A for Single-Axis Nema 6, 8, 11, 14, 17 Stepper Motor

This compact integrated stepper motor driver and controller is designed for single-axis stepper motors, featuring a wide operating voltage range of 10–30VDC and a broad speed adjustment range. It comes with multiple built-in fixed operation modes and integrates drive and control functions into a compact design, saving space and simplifying wiring.
Users can freely select among different modes and set parameters such as travel distance, speed, delay time, and motion cycles. The controller offers clear logic and user-friendly programming, along with a power-off memory function.

• Model: ST-C02
• Adaptive Motor: Nema 6,8,11,14,17 Stepper motor
• Number of Control Axis: Single sxis
• Power Supply Range: DC 10-30V general
• Potentiometer Adjustable Current Range: 0-4A
• Remote Communication Control: TTL serial port
• Speed Range: 0.1~999 revolutions per minute(RPM)
• Number of Forward Rotation pulses: 1-9999999 pulses
• Number of Reverse Rotation pulses: 1-9999999 pulses
• Number of Cycles: 1-9999 cycles (supports infinite cycles)
• Forward Rotation Delay Time: 0.0-999.9 seconds
• Reverse Rotation Delay Time: 0.0-999.9 seconds
• Subdivision Selection Range: 1-128 subdivision
• Working environment: -5℃-60℃(no condensation)
• Support acceleration and deceleration control
• Support input reverse connection protection
• Support automation, manual, setting and serial port control
• Six selectable microstepping resolutions are available, including 200, 400, 800, 1600, 3200, and 6400.
