TES Series 1 Axis Stepper CNC Kit 8.5Nm(1203.7oz.in) Nema 34 Stepper Motor & Driver DM860TE

0 reviews - Write a review

C$115.51

5 + C$112.03

10 + C$108.76

50 + C$105.68

100 + C$102.76

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

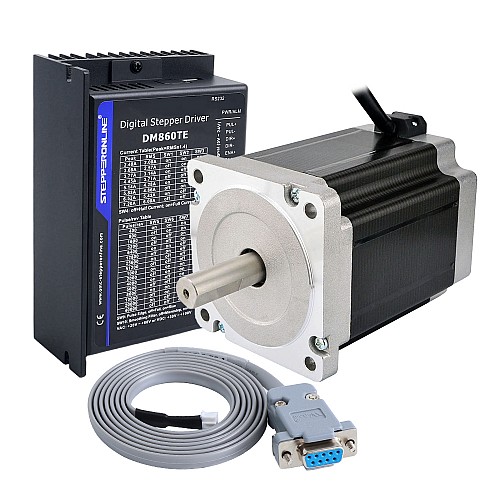

This CNC kit included:

1 x DM860TE: TE Series Digital Stepper Driver 2.4-7.2A 20-80VAC/30-100VDC for Nema 34 Motor
1 x 34HS46-5004D: Dual Shaft Nema 34 CNC Stepper Motor 8.5Nm(1203.7oz.in) 5A 86x86x114mm
1 x CABLE-PC-1: RS232 Debugging Cable

A+	A-	B+	B-
Red	Green	Yellow	Blue

Output Peak Current: 2.4~7.2A(2.0~6.0RMS)
Input Voltage: +20~80VAC/30~100VDC
Logic Input Voltage: 5~24VDC
Logic Input Current: 7~20mA
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ
Motor winding open circuit detection
Optically isolated inputs with 5V to 24V
Only supports single pulse
Automatic idle-current reduction
Suitable for 2-phase and 4-phase motors
Support PUL/DIR and CW/CCW modes
Over-voltage, over-current protection
Soft-start with no "jump" when powered on
Anti-Resonance provides optimal torque and nulls mid-range instability
Pulse input frequency up to 200KHz, TTL compatible and optically isolated input
8 selectable peak current including 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A
Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors
Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
16 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 40000

Tags: Holding Torque(Ncm): 850, Holding Torque(oz.in): 1203.7, Frame Size(mm): Nema 34 (86 x 86), Product Type: Open Loop Kit, Product Series: TS Series, Number of Axes: 1, Input Voltage Reference(V): 20 - 80AC / 30 - 110DC
