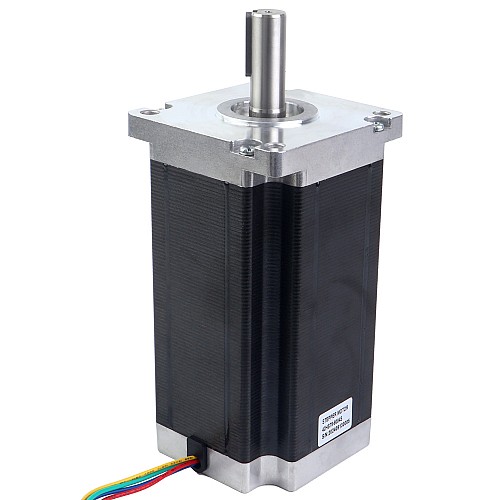

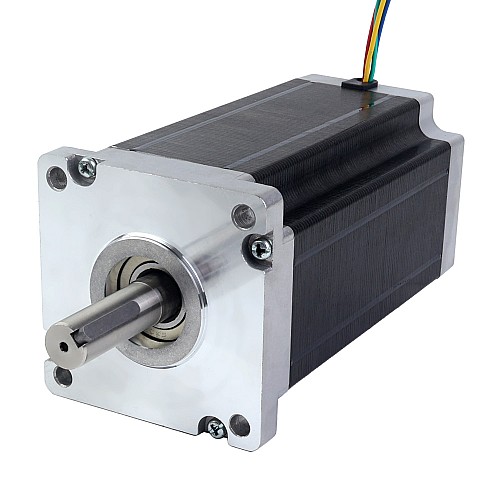

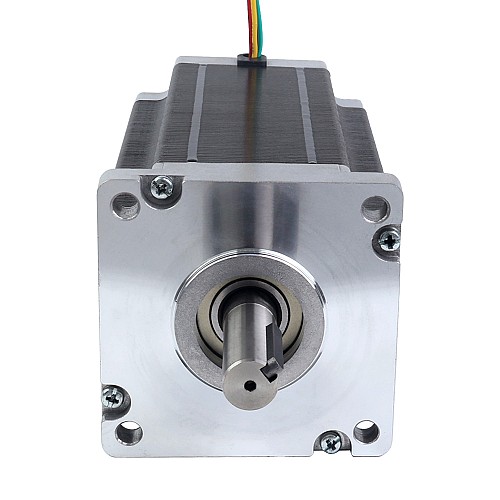

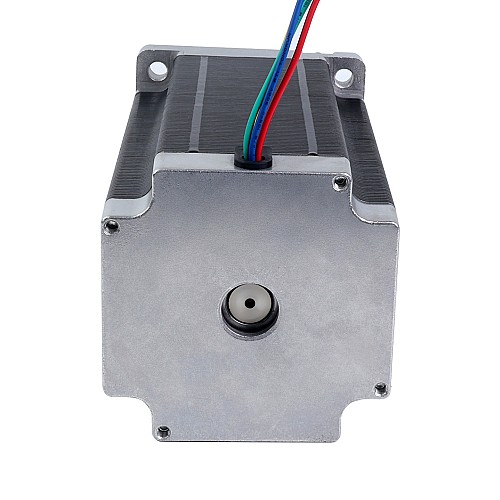

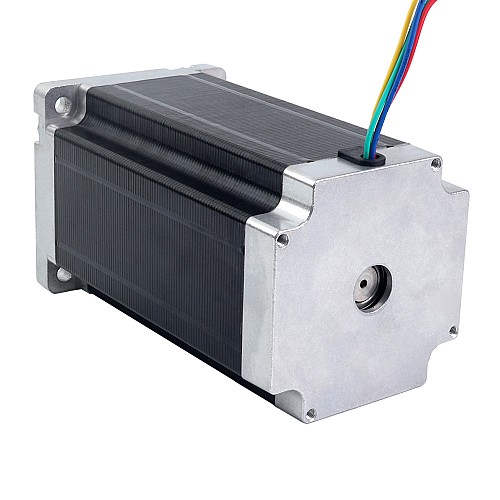

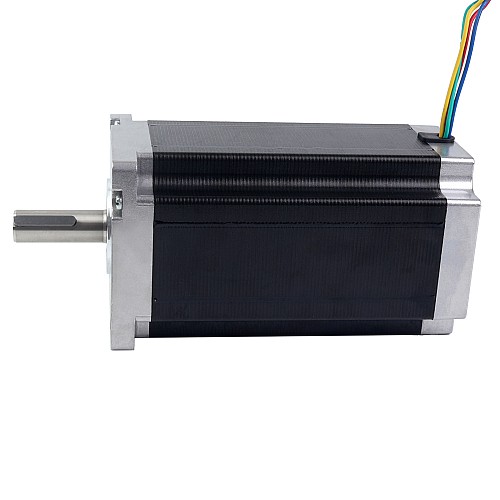

Nema 42 CNC Stepper Motor Bipolar 30Nm(4248oz.in) 8A 110x110x201mm 4 Wires

2 reviews - Write a review

C$210.19

5 + C$201.53

10 + C$193.55

50 + C$186.17

100 + C$179.35

In Stock: 10000
Model: 42HS79-8004S
Gross Weight: 12.00kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is the biggest cnc stepper motor we have, it with size 110x110x201mm. It has 4 wires, each phase draws 8A, allowing for a huge torque up to 30Nm(4248oz.in).

Electrical Specification

Manufacturer Part Number: 42HS79-8004S
Step Angle: 1.8deg
Holding Torque: 30Nm(4248oz.in)
Rated Current/phase: 8.0A
Phase Resistance: 0.67ohms
Inductance: 11mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 110 x 110mm
Body Length: 201mm
Shaft Diameter: Φ19mm
Shaft Length: 55.37mm
Key Way Length: 35mm
Number of Leads: 4
Lead Length: 300mm
Weight: 11.7kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

For all Nema 42 stepper motors, we recommend a dedicated driver: DM2282T.
This driver can be directly connected to 180 - 240VAC power supply, so you don't need an additional switching power supply.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	3000
Holding Torque(oz.in)	4248
Inductance(mH)	11
Phase Resistance(ohms)	0.67
Rated Current(A)	8
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	201
Frame Size(mm)	Nema 42 (110 x 110)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
No. of Lead	4
Output Shaft Type	Keyway
Product Series	S
Shaft Diameter(mm)	19
Shaft Length(mm)	55.37
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	11700
