Name: US On Sale - 1 Axis Stepper CNC Kit 8.2Nm(1161.45oz.in) Nema 34 Stepper Motor & Driver
Brand: STEPPERONLINE
SKU: 1-DM860I-34HS45-SALE
Price: 80.07 CAD
Availability: InStock

US On Sale - 1 Axis Stepper CNC Kit 8.2Nm(1161.45oz.in) Nema 34 Stepper Motor & Driver

1 Axis Stepper CNC Kit 8.2Nm(1161.45oz.in) Nema 34 Stepper Motor & Driver - 1-DM860I-34HS45 | StepperOnline CA

1-DM860I-34HS45-SALE

Output Shaft TypeKeyway

Shaft Diameter(mm)14

Holding Torque(Ncm)820

Holding Torque(oz.in)1161.45

Question

Downloads

34HS45-6004S.STEPSTEP · 2.14MBLog in to download 34HS45-6004S_Torque_Curve.pdfPDF · 972.5KB DM860I.pdfPDF · 625.95KB DM860I.STEPSTEP · 3.1MBLog in to download 34HS45-6004S_Full_Datasheet.pdfPDF · 155.25KB

Same series

Model	Output Shaft Type	Shaft Diameter(mm)	Holding Torque(Ncm)	Holding Torque(oz.in)	Price	Stock
1-DM556T-23HS45	D	10	300	425	C$54.14	In stock
1-DM556TE-23HS45	D	10	300	424.83	C$46.62	In stock
1-DM860I-34HS31	Keyway	14	480	679.74	C$72.86	In stock
1-DM860I-34HS31-SALE	Keyway	14	480	679.74	C$71.18	In stock
1-DM860I-34HS39	Keyway	14	800	1132.89	C$78.62	In stock
1-DM860I-34HS39-SALE	Keyway	14	800	1132.89	C$83.24	In stock
1-DM860I-34HS45	Keyway	14	820	1161.45	C$81.97	In stock
1-DM860I-34HS45-SALE	Keyway	14	820	1161.45	C$80.07	In stock
1-DM860I-S80	Keyway	14	800	1132.89	C$108.87	In stock

US On Sale - 1 Axis Stepper CNC Kit 8.2Nm(1161.45oz.in) Nema 34 Stepper Motor & Driver

This CNC kit included: 1 x DM860I: Digital Stepper Driver 2.4-7.2A 20-80VDC for Nema 34 Stepper M... Read More

0 reviews • Write a review

from Save -22%

C$80.07

C$103.23

Click country for real-time stock

Ships from

United States

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

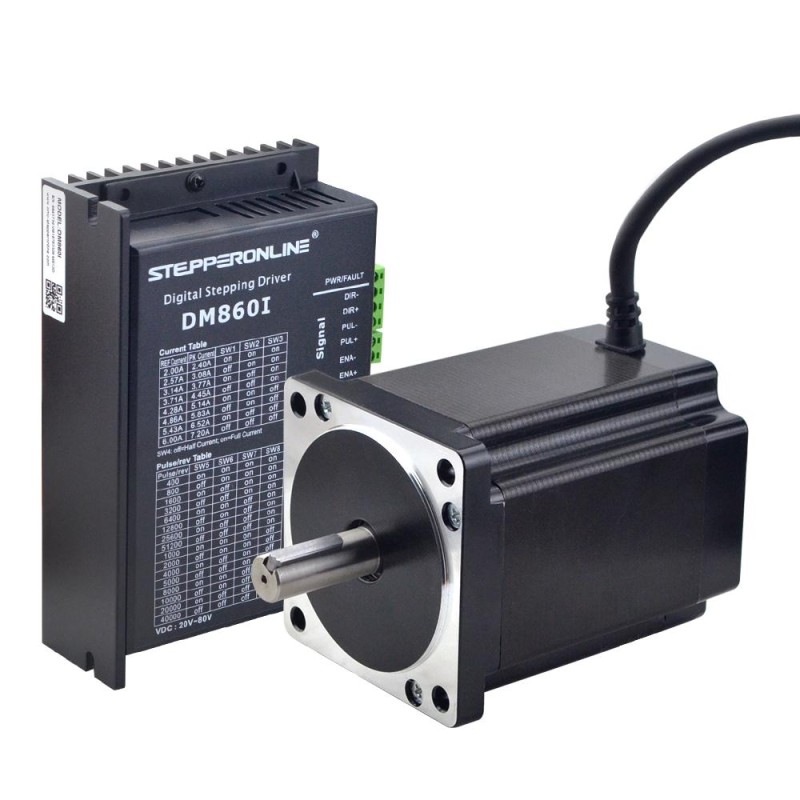

This CNC kit included:

1 x DM860I: Digital Stepper Driver 2.4-7.2A 20-80VDC for Nema 34 Stepper Motor CNC Drive

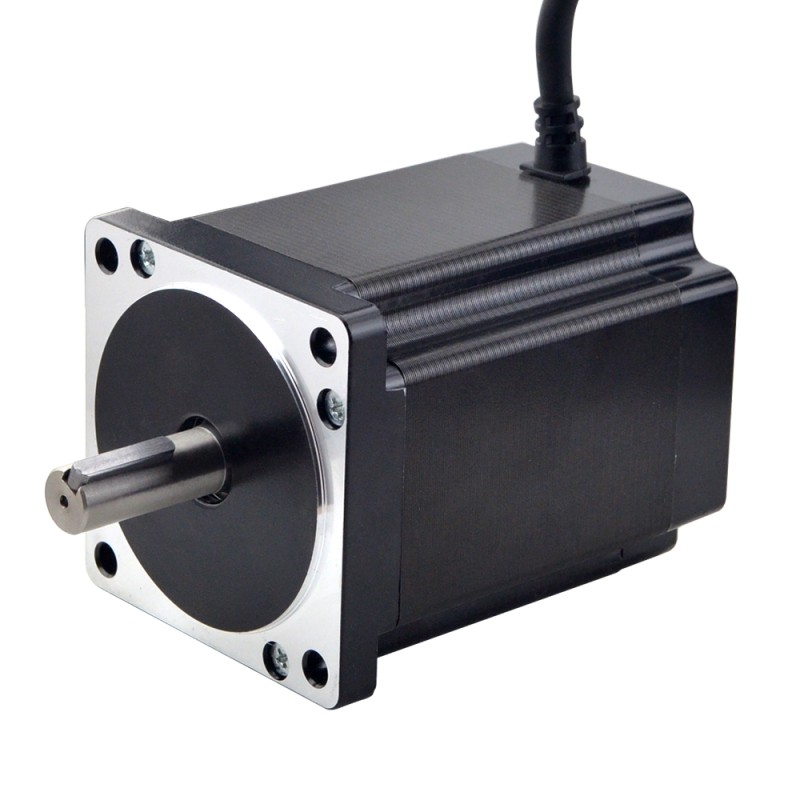

1 x 34HS45-6004S: S Series Nema 34 Stepper Motor 8.2Nm(1161.45oz.in) 14mm Key-way Shaft

Motor Specification

Manufacturer Part Number: 34HS45-6004S
Number Of Phase: 2
Step Angle: 1.8deg
Holding Torque: 8.2Nm(1161.45oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.51ohms±10%
Inductance: 5.1mH±20%(1KHz)
Frame Size: 86 x 86mm
Body Length: 113mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Keyway Shaft Length: 25mm
Number of Leads: 4
Cable Length: 500mm
Insulation Class: B 130°C[266°F]

Connection

A+	A-	B+	B-
Back	Green	Red	Blue

Driver Specification

Anti-Resonance provides optimal torque and nulls mid-range instability
Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors
Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement, works well as Cnc drive as well.
16 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 40000
Soft-start with no "jump" when powered on
Input voltage 20-80VDC
8 selectable peak current including 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A
Pulse input frequency up to 200KHz, TTL compatible and optically isolated input
Automatic idle-current reduction
Suitable for 2-phase and 4-phase motors
Support PUL/DIR and CW/CCW modes
Over-voltage, over-curren protection

Product Type
Product Type	Open Loop Stepper Kit
Electrical Specification
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	820
Holding Torque(oz.in)	1161.45
Input Voltage Reference(V)	20 - 80DC
No. of Phase	2
Number of Axes	1
Physical Specification
Frame Size(mm)	Nema 34 (86 x 86)
Output Shaft Type	Keyway
Power Supply	No
Product Series	TS Series
Shaft Diameter(mm)	14

Related Products
Also Bought

Quickview

1 Axis Stepper CNC Kit 12.0Nm(1699.68oz.in) Nema 34 Stepper Motor & Driver

This CNC kit included: 1 x DM860I: Digital Stepper Driver 2.4-7.2A 20-80VDC for Nema 34 Stepper Motor CNC Drive 1 x 34HS59-6004S: Nema 34 Stepper ..

from

C$94.47

Add to Cart

Add to Wish List Compare this Product

Quickview

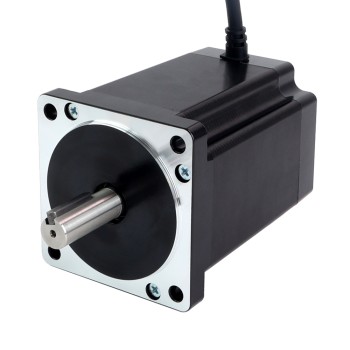

S Series Nema 34 Stepper Motor Bipolar 1.8deg 8.2Nm(1161.45oz.in) 6.0A 86x86x113mm 4 Wires
