1 Axis Stepper CNC Kit 4.8Nm(679.74oz.in) Nema 34 Stepper Motor & Driver

0 reviews - Write a review

C$74.37

5 + C$72.19

10 + C$70.15

50 + C$68.21

100 + C$66.39

In Stock: 10000
Model: 1-DM860I-34HS31
Gross Weight: 3.33kg
Certificated: ISO, CE, UKCA

Available Options

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

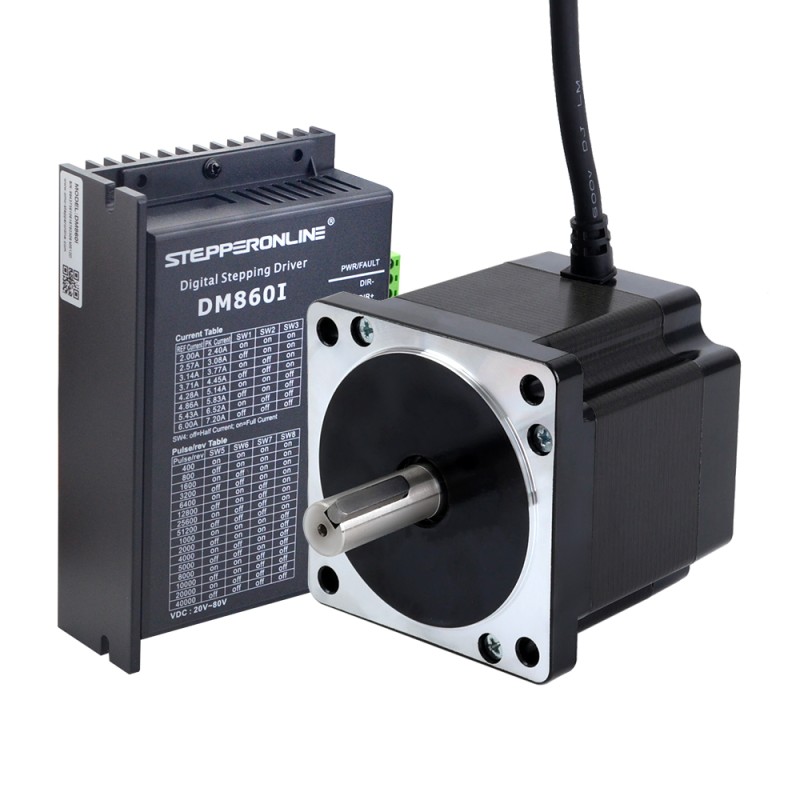

This CNC kit included:

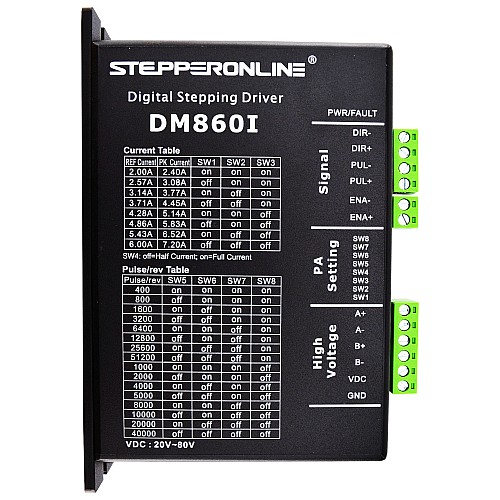

1 x DM860I: Digital Stepper Driver 2.4-7.2A 20-80VDC for Nema 34 Stepper Motor CNC Drive

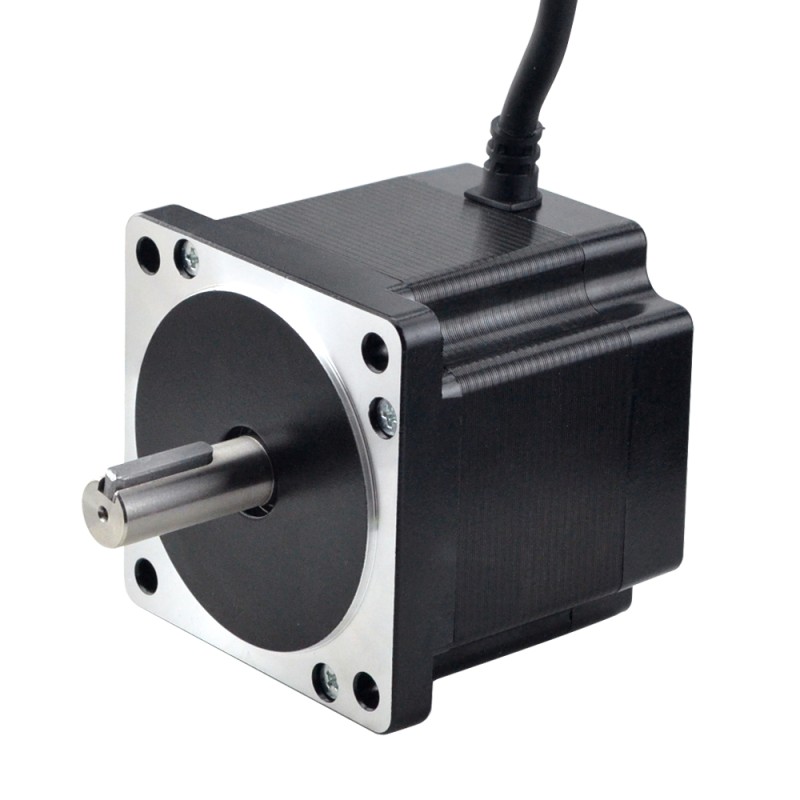

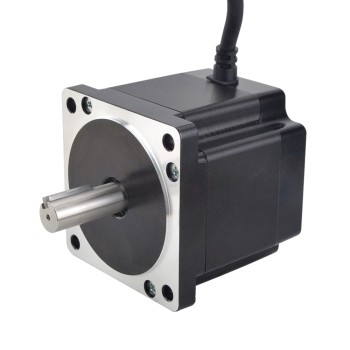

1 x 34HS31-6004S: Nema 34 Stepper Motor Bipolar 1.8deg 4.8Nm(679.74oz.in) 6.0A 86x86x80mm 4 Wires

Motor Specification

Manufacturer Part Number: 34HS31-6004S
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 4.8Nm(679.74oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.42ohms±10%
Inductance: 3.8mH±20%(1KHz)
Frame Size: 86 x 86mm
Body Length: 80mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Keyway Shaft Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Insulation Class: B 130°C[266°F]

Driver Specification

Output Peak Current: 2.4~7.2A(6.0RMS)
Input Voltage: +20~80VDC
Logic Signal Current: 7~16mA(Typical 10mA)
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 100MΩ
Support PUL/DIR and CW/CCW modes
Automatic idle-current reduction
Suitable for 2-phase and 4-phase motors
Soft-start with no "jump" when powered on
Over-voltage, over-curren protection
Anti-Resonance provides optimal torque and nulls mid-range instability
Pulse input frequency up to 200KHz, TTL compatible and optically isolated input

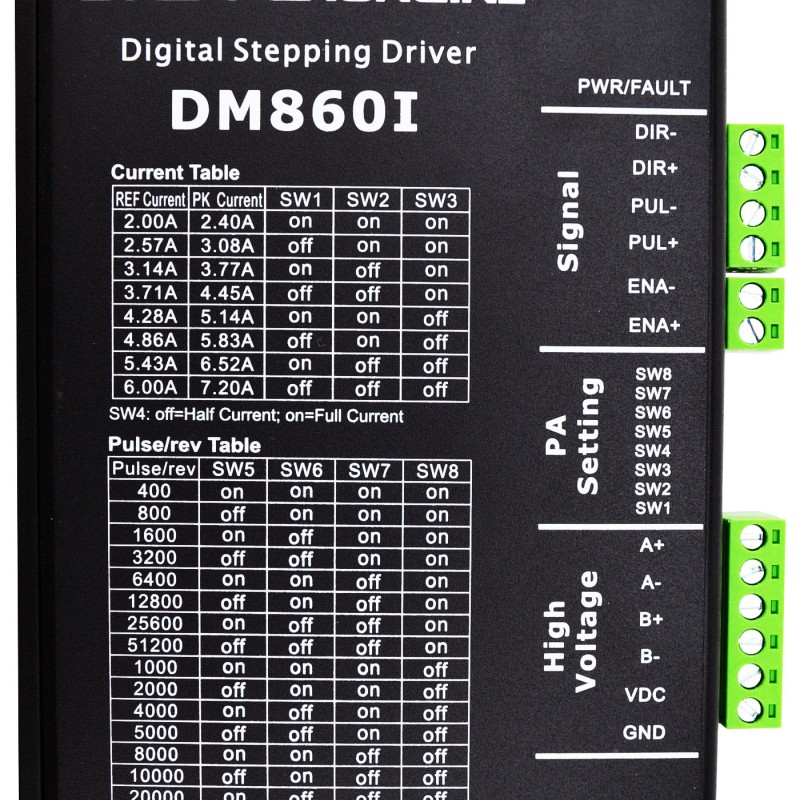

8 selectable peak current including 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A
Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors
16 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 40000
Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement, works well as Cnc drive as well.

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Open Loop Kit
Electrical Specification
Holding Torque(Ncm)	480
Holding Torque(oz.in)	679.74
Input Voltage Reference(V)	20 - 80DC
No. of Phase	2
Number of Axes	1
Physical Specification
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
Output Shaft Type	Keyway
Power Supply	No
Product Series	TS Series
Shaft Diameter(mm)	14

File	Size
34HS31-6004S_Full_Datasheet.pdf	143.32KB	Download
34HS31-6004S.STEP	1.98MB	Download
34HS31-6004S_Torque_Curve.pdf	985KB	Download
DM860I.pdf	625.95KB	Download
DM860I.STEP	3.1MB	Download
