YS Series 1 Axis Stepper CNC Kit 12.0Nm(1699.34oz.in) Nema 34 Stepper Motor & Driver

0 reviews - Write a review

C$93.03

5 + C$90.32

10 + C$87.76

50 + C$85.34

100 + C$83.04

In Stock: 10000
Model: 1-DM860Y-34HS59
Gross Weight: 6.40kg
Certificated: ISO, CE, UKCA

Available Options

Ships from

China

United States

Germany

United Kingdom

Russia

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

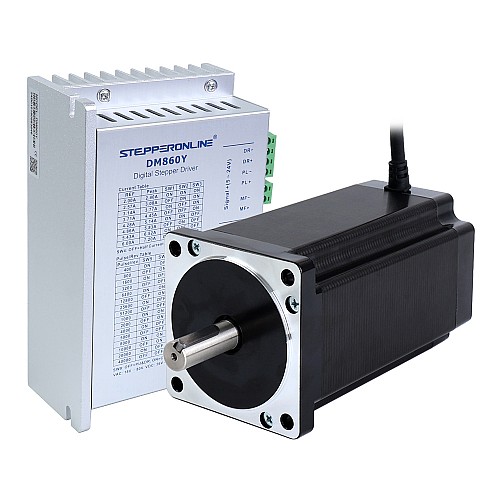

This CNC kit includes:

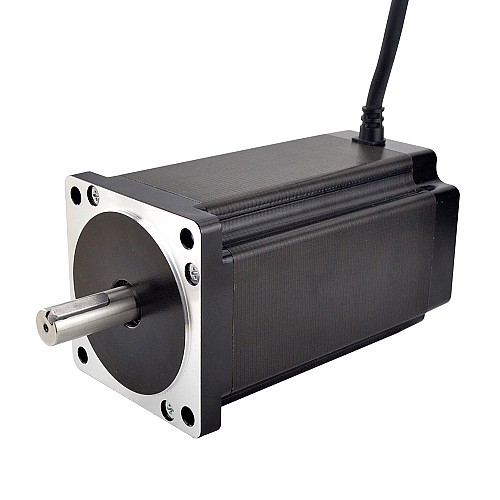

1 x 34HS59-6004S: S Series Nema 34 Stepper Motor Bipolar 1.8deg 12.0Nm(1699.34oz.in) 6.0A 86x86x151.5mm 4 Wires

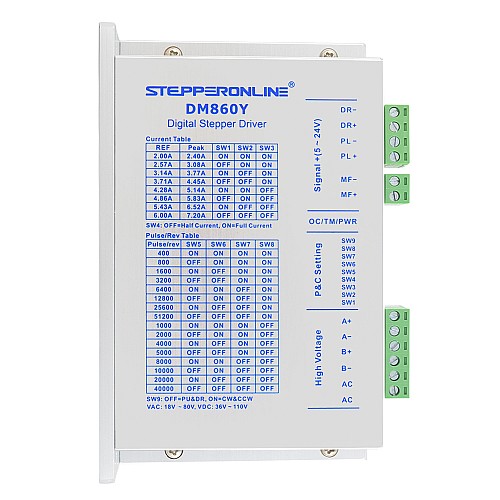

1 x DM860Y: Y Series Digital Stepper Driver 2.4-7.2A AC18V-80V/DC 36V-110V for Nema 34 Motor

Motor Specification

Manufacturer Part Number: 34HS59-6004S
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 12.0Nm(1699.34oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.7ohms± 10%
Inductance: 7.9mH±20%(1KHz)
Insulation Class: B 130°C[266°F]
Frame Size: 86 x 86mm
Body Length: 151.5mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Keyway Shaft Length: 25mm
Number of Leads: 4
Lead Length: 500mm

Driver Specification

Output Peak Current: 2.4 - 7.2A(2.0~6.0RMS)
Logic Signal Current: 7 - 15mA(Typical 10mA)
Pulse Input Frequency: 0 - 200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ
Input Voltage: AC18V~80V/DC 36V-110V(DC +/- power can be connected in any order)

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Open Loop Stepper Kit
Electrical Specification
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	1200
Holding Torque(oz.in)	1699.34
Input Voltage Reference(V)	18 - 80AC / 36 - 110DC
No. of Phase	2
Number of Axes	1
Physical Specification
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
Output Shaft Type	Keyway
Power Supply	No
Product Series	YS Series
Shaft Diameter(mm)	14
Shaft Length(mm)	37

File	Size
34HS59-6004S.STEP	1.06MB	Download
34HS59-6004S_Torque_Curve.pdf	159.6KB	Download
34HS59-6004S_Full_Datasheet.pdf	143.53KB	Download
DM860Y_User_Manual_V1.0.pdf	725.02KB	Download
Y_Series_Stepper_Driver_Debug_Software_7.4.zip	31.1MB	Download
