US On Sale - YS Series 1 Axis Stepper CNC Kit 8.0Nm(1132.89oz.in) Nema 34 Stepper Motor & Driver

YS Series 1 Axis Stepper CNC Kit 8.0Nm(1132.89oz.in) Nema 34 Stepper Motor & Driver - 1-DM860Y-34HS39 | StepperOnline CA
YS Series 1 Axis Stepper CNC Kit 8.0Nm(1132.89oz.in) Nema 34 Stepper Motor & Driver - 1-DM860Y-34HS39 | StepperOnline CA
YS Series 1 Axis Stepper CNC Kit 8.0Nm(1132.89oz.in) Nema 34 Stepper Motor & Driver - 1-DM860Y-34HS39 | StepperOnline CA
YS Series 1 Axis Stepper CNC Kit 8.0Nm(1132.89oz.in) Nema 34 Stepper Motor & Driver - 1-DM860Y-34HS39 | StepperOnline CA
YS Series 1 Axis Stepper CNC Kit 8.0Nm(1132.89oz.in) Nema 34 Stepper Motor & Driver - 1-DM860Y-34HS39 | StepperOnline CA
YS Series 1 Axis Stepper CNC Kit 8.0Nm(1132.89oz.in) Nema 34 Stepper Motor & Driver - 1-DM860Y-34HS39 | StepperOnline CA
1-DM860Y-34HS39-SALE
Output Shaft TypeKeyway
Holding Torque(Ncm)800
Holding Torque(oz.in)1132.89
Frame Size(mm)Nema 34 (86 x 86)
Question

Downloads

DM860Y.STPSTP · 4.77MBLog in to downloadDM860Y_User_Manual_V1.0.pdfPDF · 725.02KBY_Series_Stepper_Driver_Debug_Software_7.4.zipZIP · 31.1MB34HS39-6004S.STEPSTEP · 2MBLog in to download34HS39-6004S_Full_Datasheet.pdfPDF · 215.3KB
Same series
ModelOutput Shaft TypeHolding Torque(Ncm)Holding Torque(oz.in)Frame Size(mm)PriceStock
1-DM542T-23HS30D200283.22Nema 23 (57 x 57)C$42.05In stock
1-DM542T-23HS32D240339.87Nema 23 (57 x 57)C$42.63In stock
1-DM542T-23HS45D300425Nema 23 (57 x 57)C$51.26In stock
1-DM542T-S30D300425Nema 23 (57 x 57)C$73.44In stock
1-DM542TE-23HS30D200283.22Nema 23 (57 x 57)C$36.82In stock
1-DM542TE-23HS32D240339.87Nema 23 (57 x 57)C$37.12In stock
1-DM542TE-23HS45D300424.83Nema 23 (57 x 57)C$44.54In stock
1-DM542TE-S30D300424.83Nema 23 (57 x 57)C$64.73In stock
1-DM542Y-23HS30D190269.06Nema 23 (57 x 57)C$38.60In stock
1-DM542Y-S19D190269.06Nema 23 (57 x 57)C$60.77In stock
1-DM556T-23HS45D300425Nema 23 (57 x 57)C$54.14In stock
1-DM556T-24HS39D340481.48Nema 24 (60 x 60)C$81.03Backorder
1-DM556TE-23HS45D300424.83Nema 23 (57 x 57)C$46.62In stock
1-DM556TE-24HS39D340481.48Nema 24 (60 x 60)C$54.93In stock
1-DM556Y-23HS39D300425Nema 23 (57 x 57)C$47.75In stock
1-DM556Y-S30D300425Nema 23 (57 x 57)C$69.93In stock
1-DM860I-34HS31Keyway480679.74Nema 34 (86 x 86)C$72.86In stock
1-DM860I-34HS31-SALEKeyway480679.74Nema 34 (86 x 86)C$71.18In stock
1-DM860I-34HS39Keyway8001132.89Nema 34 (86 x 86)C$78.62In stock
1-DM860I-34HS39-SALEKeyway8001132.89Nema 34 (86 x 86)C$83.24In stock
1-DM860I-34HS45Keyway8201161.45Nema 34 (86 x 86)C$81.97In stock
1-DM860I-34HS45-SALEKeyway8201161.45Nema 34 (86 x 86)C$80.07In stock
1-DM860I-34HS59Keyway12001699.68Nema 34 (86 x 86)C$94.47In stock
1-DM860I-S120Keyway12001699.34Nema 34 (86 x 86)C$124.70In stock
1-DM860I-S80Keyway8001132.89Nema 34 (86 x 86)C$108.87In stock
1-DM860T-34HS31Keyway450637Nema 34 (86 x 86)C$112.17Backorder
1-DM860T-34HS59D13001841Nema 34 (86 x 86)C$136.11Backorder
1-DM860TE-34HS31Keyway450637.25Nema 34 (86 x 86)C$84.62In stock
1-DM860Y-34HS30D480679.74Nema 34 (86 x 86)C$69.70In stock
1-DM860Y-34HS30-SALED480679.74Nema 34 (86 x 86)C$69.66In stock
View all in category
US On Sale - YS Series 1 Axis Stepper CNC Kit 8.0Nm(1132.89oz.in) Nema 34 Stepper Motor & Driver
This CNC kit includes: 1 x 34HS39-6004S: S Series Nema 34 Stepper Motor 8.0Nm(1132.89oz.in) 6.0A ... Read More
0 reviews • Write a review
from Save -26%
C$69.77
C$94.28

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

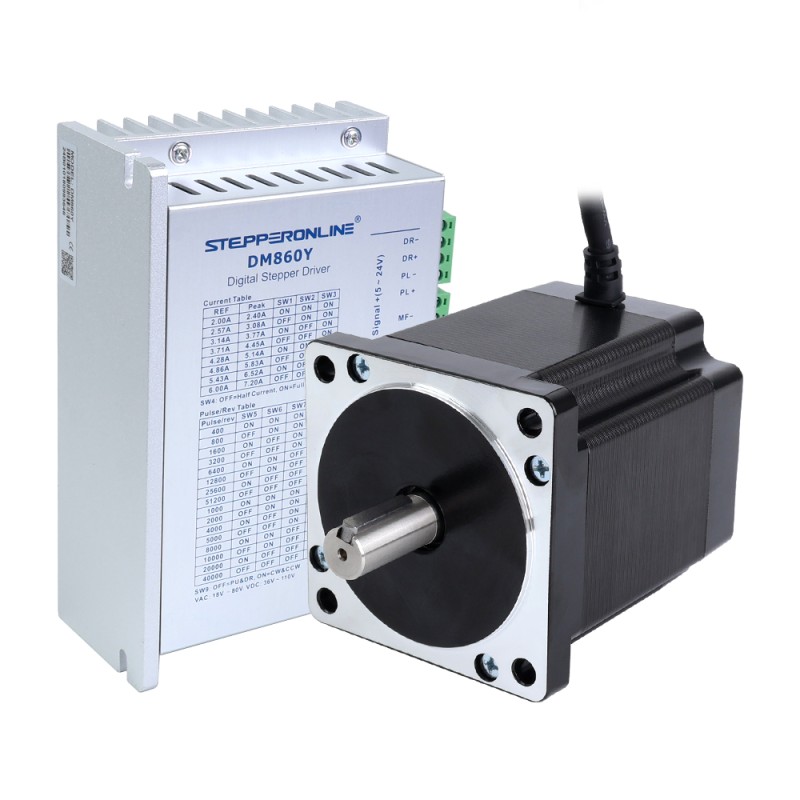

This CNC kit includes:

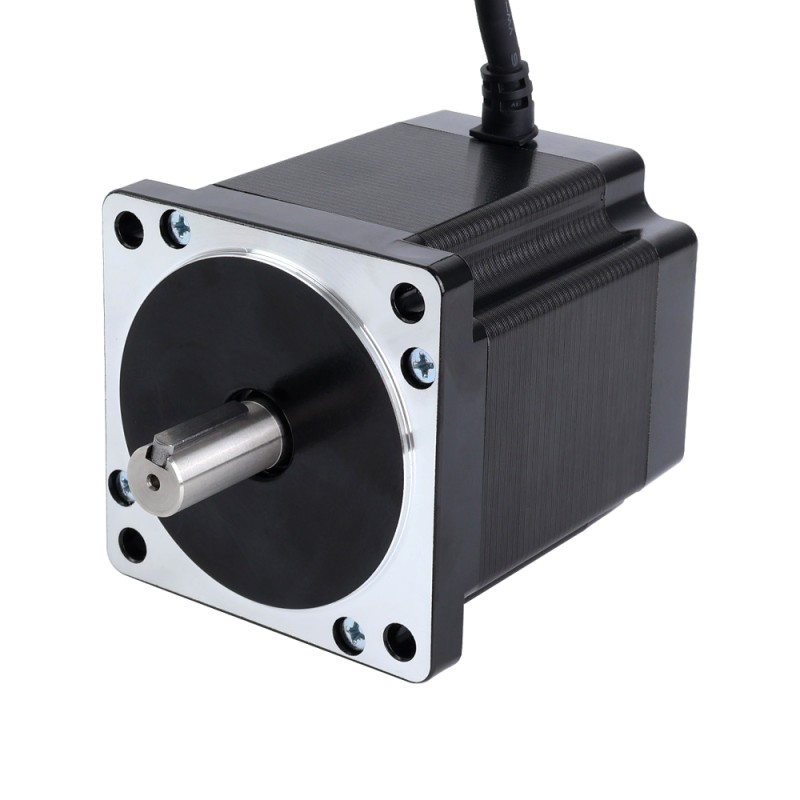

  • 1 x 34HS39-6004S: S Series Nema 34 Stepper Motor 8.0Nm(1132.89oz.in) 6.0A 86x86x98mm 4 Wires

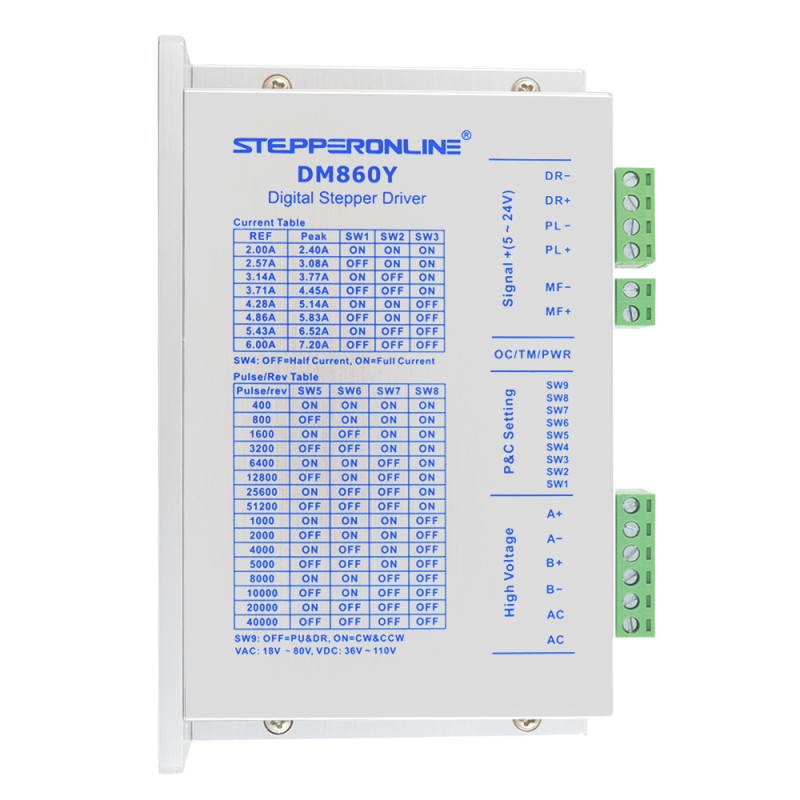

  • 1 x DM860Y: Y Series Digital Stepper Driver 2.4-7.2A AC18V-80V/DC 36V-110V for Nema 34 Motor

Motor Specification

  • Manufacturer Part Number: 34HS39-6004S
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 8.0Nm(1132.89oz.in)
  • Rated Current/Phase: 6.0A
  • Phase Resistance: 0.55ohms± 10%
  • Inductance: 4.6mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]
  • Frame Size: 86 x 86mm
  • Body Length: 98mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 32mm
  • Keyway Shaft Length: 25mm
  • Number of Leads: 4
  • Lead Length: 500mm

Driver Specification

  • Output Peak Current: 2.4 - 7.2A(2.0~6.0RMS)
  • Logic Signal Current: 7 - 15mA(Typical 10mA)
  • Pulse Input Frequency: 0 - 200kHz
  • Pulse Width: 2.5μS
  • Isolation Resistance: 500MΩ
  • Input Voltage: AC18V~80V/DC 36V-110V(DC +/- power can be connected in any order)

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Product Type
Product Type Open Loop Stepper Kit
Electrical Specification
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 800
Holding Torque(oz.in) 1132.89
Input Voltage Reference(V) 18 - 80AC / 36 - 110DC
No. of Phase 2
Number of Axes 1
Physical Specification
Frame Size(mm) Nema 34 (86 x 86)
Output Shaft Type Keyway
Power Supply No
Product Series YS Series
Shaft Diameter(mm) 14
Shaft Length(mm) 32
