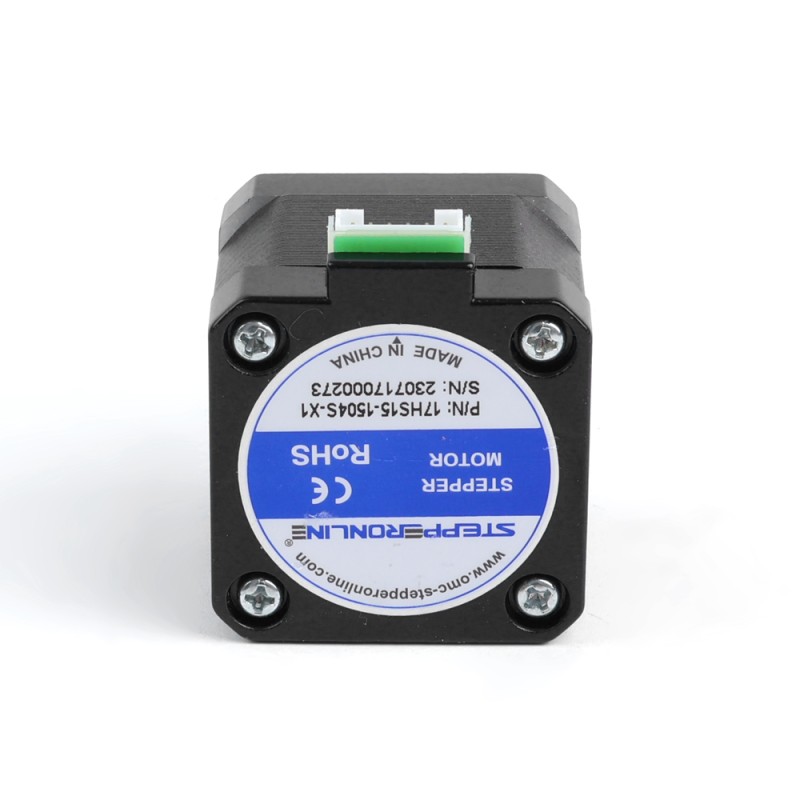

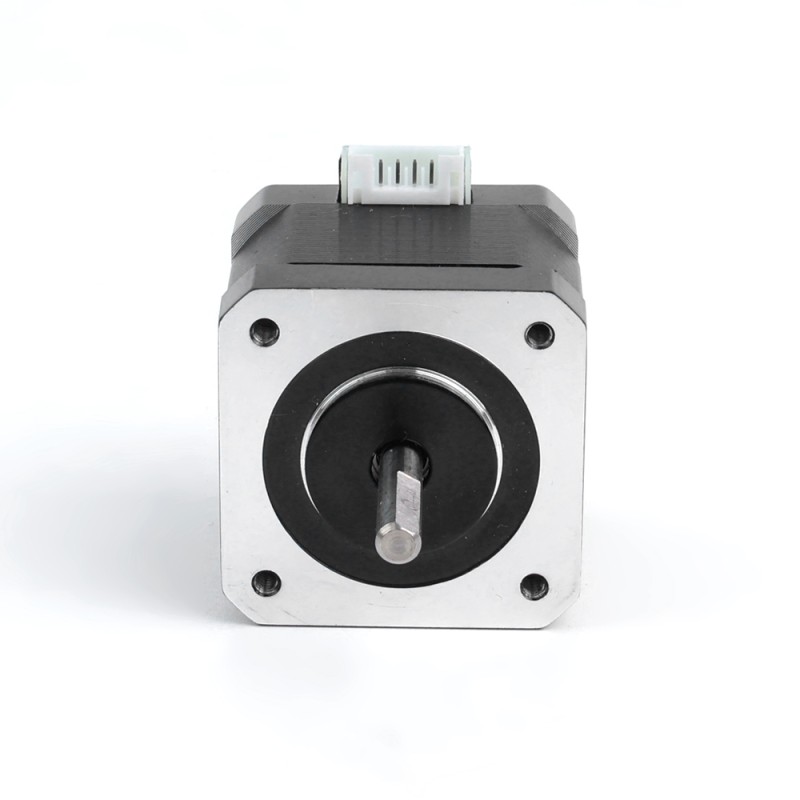

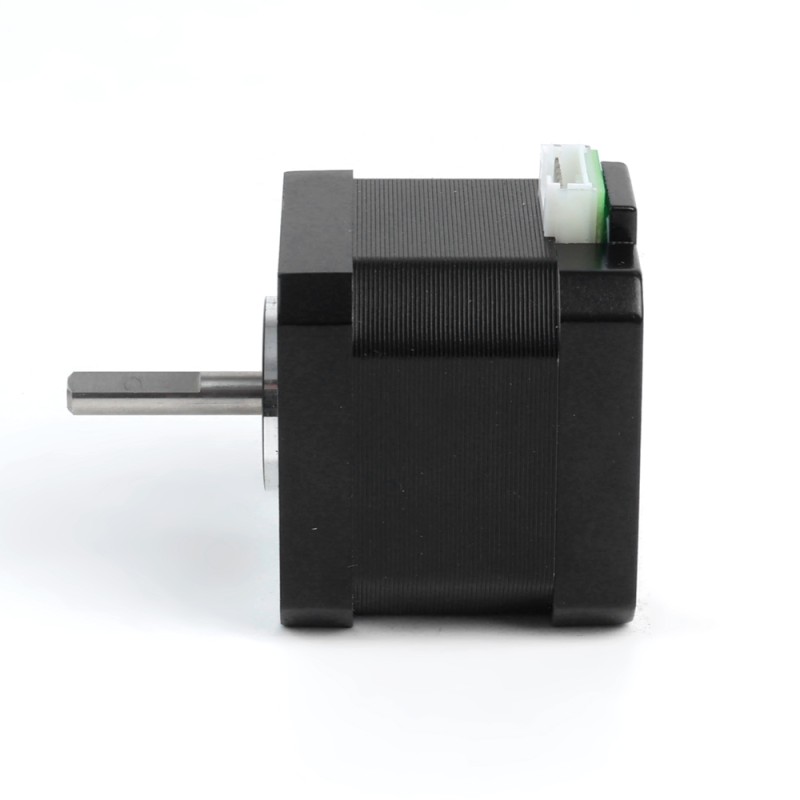

Used - China Stock - Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x40mm 4 Wires w/ 1m Pin Connector

Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Pin Connector - 17HS15-1504S-X1 | StepperOnline CA
Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Pin Connector - 17HS15-1504S-X1 | StepperOnline CA
Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Pin Connector - 17HS15-1504S-X1 | StepperOnline CA
Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Pin Connector - 17HS15-1504S-X1 | StepperOnline CA
Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Pin Connector - 17HS15-1504S-X1 | StepperOnline CA
Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Pin Connector - 17HS15-1504S-X1 | StepperOnline CA
Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Pin Connector - 17HS15-1504S-X1 | StepperOnline CA
Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Pin Connector - 17HS15-1504S-X1 | StepperOnline CA
Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Pin Connector - 17HS15-1504S-X1 | StepperOnline CA
Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Pin Connector - 17HS15-1504S-X1 | StepperOnline CA
Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Pin Connector - 17HS15-1504S-X1 | StepperOnline CA
Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Pin Connector - 17HS15-1504S-X1 | StepperOnline CA
Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Pin Connector - 17HS15-1504S-X1 | StepperOnline CA
Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Pin Connector - 17HS15-1504S-X1 | StepperOnline CA
17HS15-1504S-X1-USED
Output Shaft TypeD
No. of Lead4
Single Shaft/Dual ShaftSingle Shaft
Holding Torque(Ncm)45
Question

Downloads

17HS15-1504S-X1.STEPSTEP · 1.13MBLog in to download17HS15-1504S-X1_Torque_Curve.pdfPDF · 166.19KB17HS15-1504S-X1_Full_Datasheet.pdfPDF · 171.63KB
Same series
ModelOutput Shaft TypeNo. of LeadSingle Shaft/Dual ShaftHolding Torque(Ncm)PriceStock
17HS13-1334DO4Dual Shaft22C$12.30In stock
17HS13-1334SD4Single Shaft22C$12.64In stock
17HS13-1504HHollow4Dual Shaft25C$23.10In stock
17HS15-0404SD4Single Shaft40C$14.21In stock
17HS15-0406SD6Single Shaft26C$13.24In stock
17HS15-0854SD4Single Shaft36C$13.24In stock
17HS15-0854S-C1D4Single Shaft36C$15.59Backorder
17HS15-0854S-C2D4Single Shaft36C$10.61In stock
17HS15-1206SD4Single Shaft26C$13.24Backorder
17HS15-1504S-X1D4Single Shaft45C$13.24In stock
17HS15-1504S-X1-USEDD4Single Shaft45C$6.63In stock
17HS15-1504S1D4Single Shaft45C$13.24In stock
17HS15-1584SO4Single Shaft36C$12.30In stock
17HS15-1684SD4Single Shaft36C$13.54In stock
17HS15-1704S-SALED4Single Shaft42C$5.45In stock
17HS16-2004DD4Dual Shaft45C$13.24In stock
17HS16-2004S-C4D4Single Shaft45C$11.38In stock
17HS16-2004S1D4Single Shaft45C$13.24In stock
17HS19-0406SD6Single Shaft32C$15.14In stock
17HS19-0854SD4Single Shaft44C$15.14In stock
17HS19-1504HHollow4Dual Shaft36C$25.53In stock
17HS19-1684DO4Dual Shaft44C$15.14In stock
17HS19-1684S1D4Single Shaft45C$15.14In stock
17HS19-2004DD4Dual Shaft59C$15.14In stock
17HS19-2004S1D4Single Shaft59C$13.95In stock
17HS19-2004S2D4Single Shaft59C$15.52In stock
17HS19-2504SO4Single Shaft60C$14.43In stock
17HS24-0644SD4Single Shaft65C$19.20In stock
17HS24-1206DD6Dual Shaft65C$22.04In stock
17HS24-1206SD6Single Shaft65C$21.55In stock
View all in category
Used - China Stock - Nema 17 Bipolar 45Ncm(63.74oz.in) 1.5A 42x42x40mm 4 Wires w/ 1m Pin Connector
This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x40mm. It has 4 wires, each ... Read More
0 reviews • Write a review
from Save -50%
C$6.63
C$13.24

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

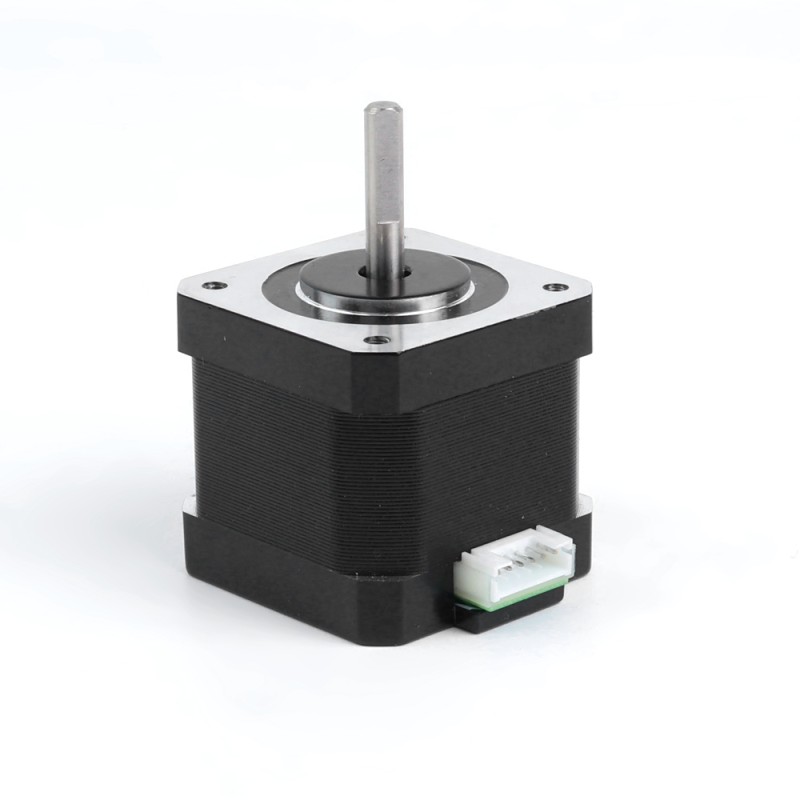

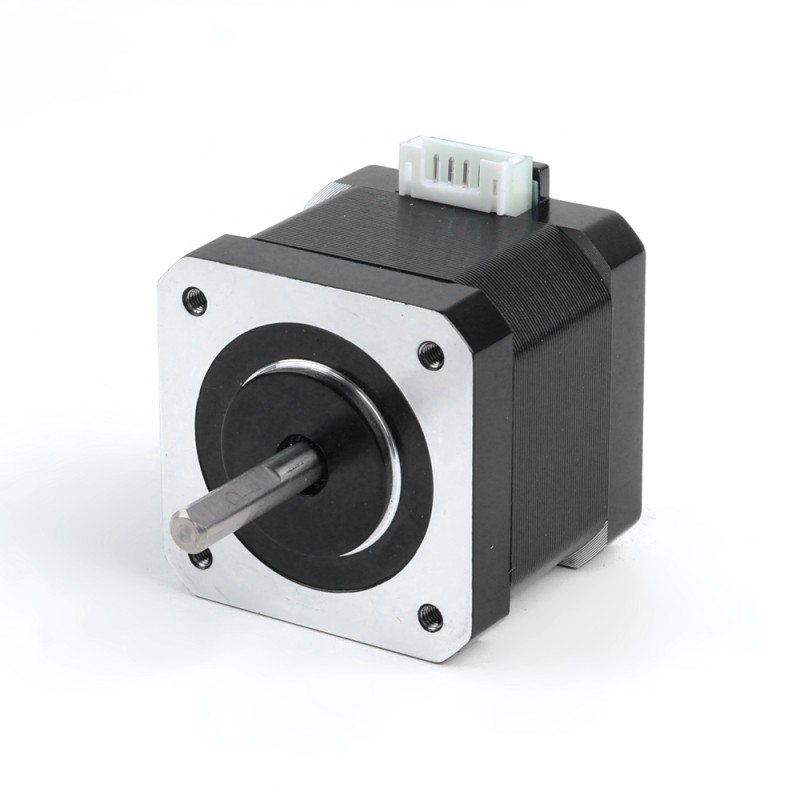

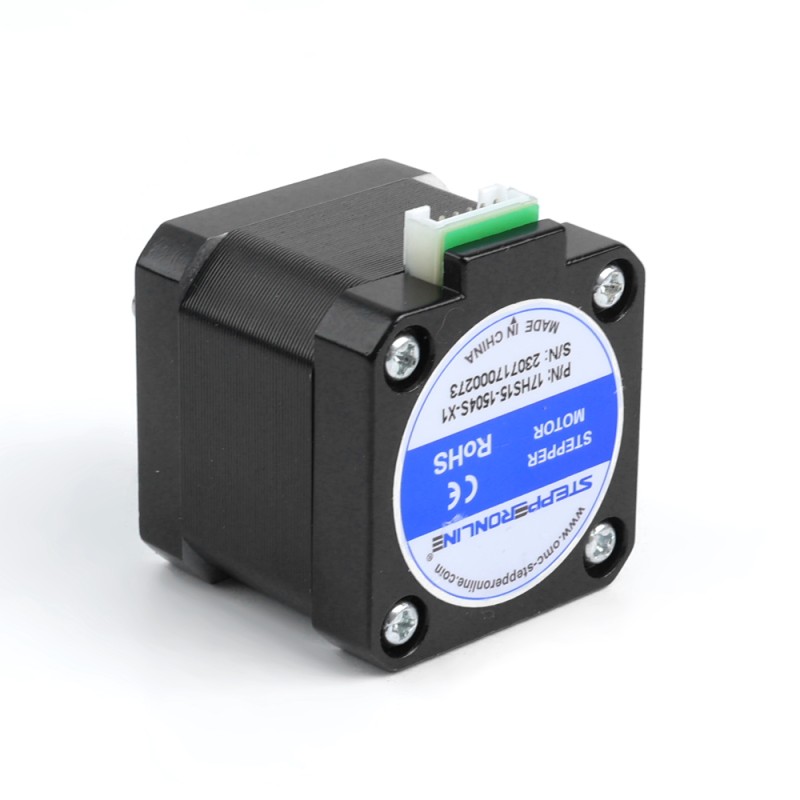

This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x40mm. It has 4 wires, each phase draws current 1.5A, with holding torque 45Ncm(63.74oz.in).

Electrical Specification

  • Manufacturer Part Number: 17HS15-1504S-X1
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 45Ncm(63.74oz.in)
  • Rated Current/phase: 1.50A
  • Phase Resistance: 2.3ohms
  • Inductance: 4.4mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 40mm

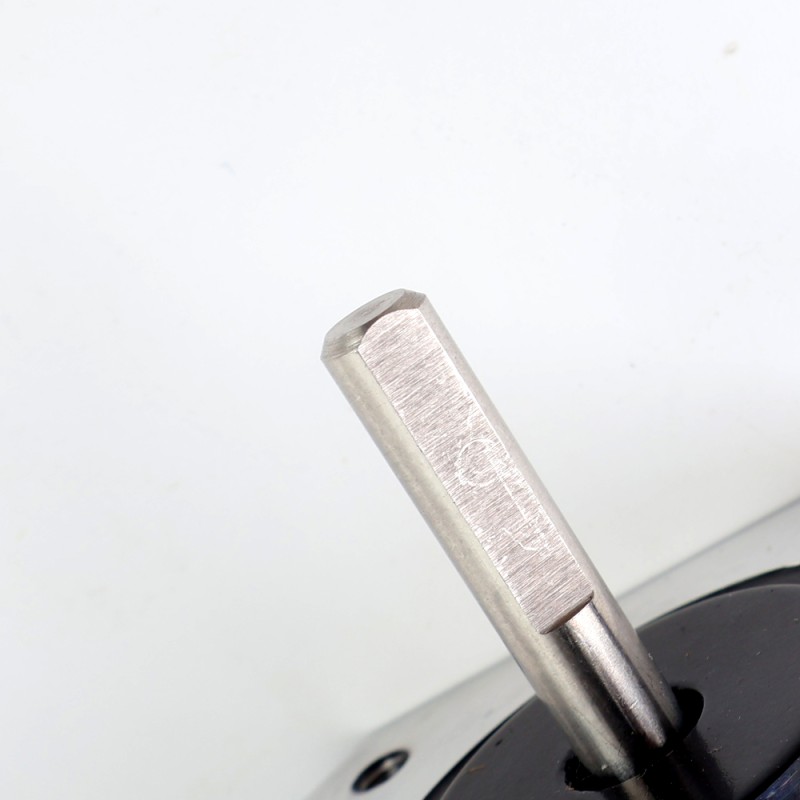

  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 280g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Product Type
Product Condition Used
Product Type Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 45
Holding Torque(oz.in) 63.74
Inductance(mH) 4.4
Phase Resistance(ohms) 2.3
Rated Current(A) 1.5
Step Angle(deg.) 1.8
Brake Specification
Brake Power(W) Yes
Physical Specification
Body Length(mm) 40
Frame Size(mm) Nema 17 (42 x 42)
IP Rating 40
Lead Length(mm) 1000
No. of Lead 4
Output Shaft Type D
Product Series S
Shaft Diameter(mm) 5
Shaft Length(mm) 24
Single Shaft/Dual Shaft Single Shaft
Weight(g) 280

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Digital Stepper Driver 0.3-2.2A 10-30VDC for Nema 8, 11, 14, 16, 17 Stepper Motor
🔥 Bestseller
Digital Stepper Driver 0.3-2.2A 10-30VDC for Nema 8, 11, 14, 16, 17 Stepper Motor
This is a digital stepper drive implemented with advanced stepper control technology. It is easy to use and it can be used to drive 2-phase and 4-phas..
from
C$19.94
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 17 Bracket for Stepper Motor and Geared Stepper Motor Alloy Steel Bracket
🔥 Bestseller
Nema 17 Bracket for Stepper Motor and Geared Stepper Motor Alloy Steel Bracket
Manufacturer P/N: ST-M1 The new designed NEMA 17 Stepper Motor Alloy Steel Mounting Bracket can match standard Nema 17 stepper motor, and also includ..
from
C$2.67
Add to Cart
Add to Wish List Compare this Product
Quickview
NEMA 17 Stepper Motor Vibration Dampers with 4 M3 Screws
NEMA 17 Stepper Motor Vibration Dampers with 4 M3 Screws
This damper is for NEMA 17 stepper motors. It can effectively reduce noise and vibration generated from the running stepper motors...
from
C$3.77
Add to Cart
Add to Wish List Compare this Product
Quickview

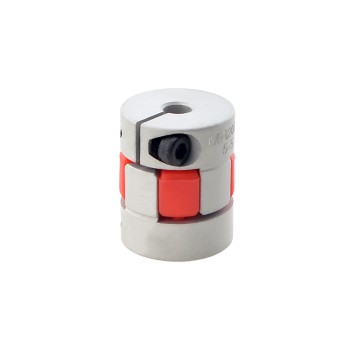

5mm - 5mm Flexible Jaw Coupling 20x25mm CNC Stepper Motor Shaft Coupler
