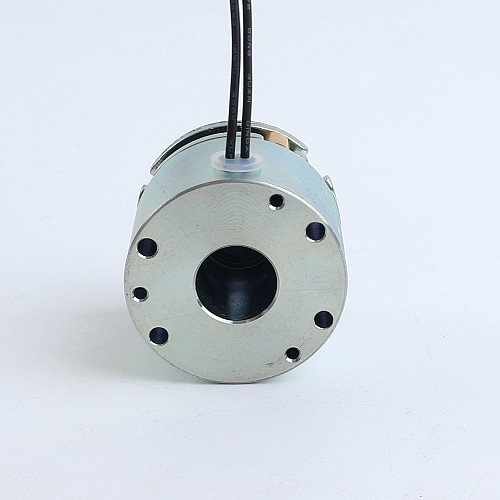

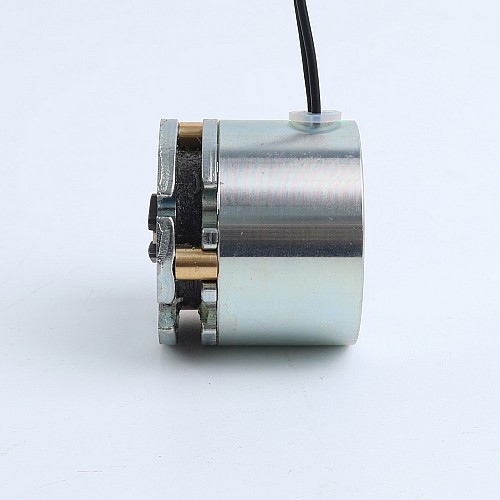

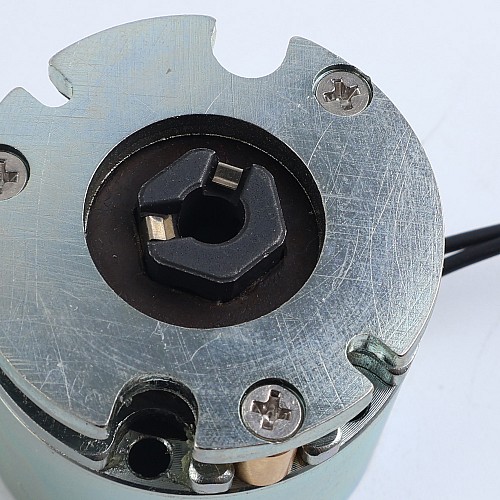

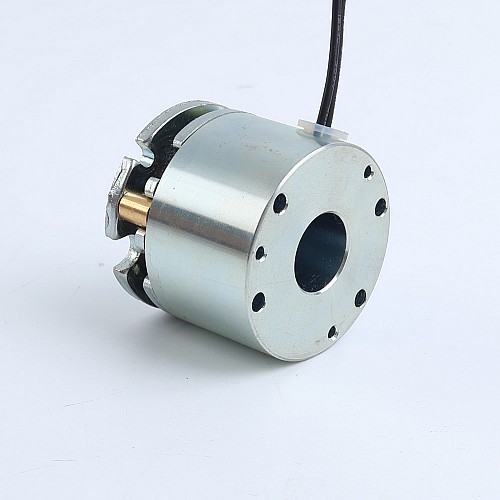

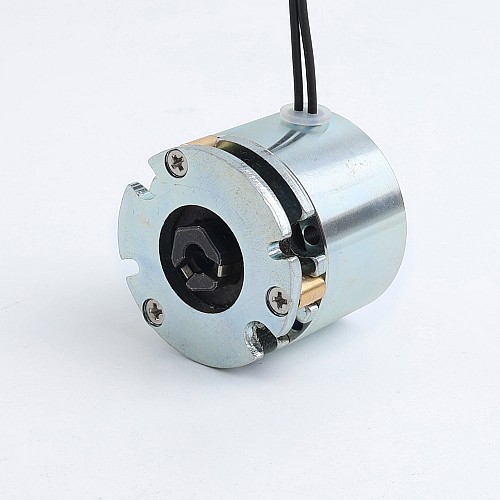

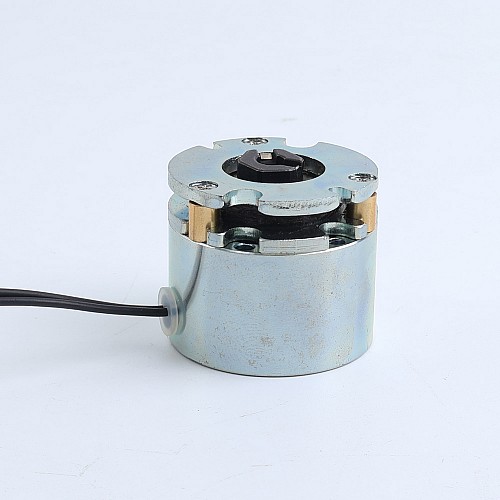

Used - DC Electromagnetic Brake 24V 0.25Nm(35.4oz.in) for Nema 17 Stepper Motor

New Used – 80% New -43 %

Used - DC Electromagnetic Brake 24V 0.25Nm(35.4oz.in) for Nema 17 Stepper Motor

0 reviews - Write a review

C$45.72

C$25.93

In Stock: 200
Model: SWB-01-USED
Gross Weight: 0.50kg
Certificated: ISO, CE

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

What is Used-Product Mean?

STEPPERONLINE Used Products: Second-sale items may have minor defects like surface blemishes, modified cables or damaged packaging. Our technical team conducts strict quality checks to guarantee they work perfectly.

This brake is Non-excited brake and operate with 24VDC, it can create Max 0.25Nm(35.4oz.in) static friction torque. It's a good choice for Nema 17 size stepper motor.

The operating principle is:
When the electric power is applied, the armature is pulled by the electromagnetic force in the magnet body assembly, which overcomes the spring action. This allows the friction disc to rotate freely. When electrical power is interrupted, the electromagnetic force is removed and the pressure spring mechanically forces the armature plate to clamp the friction disc between itself and the pressure plate. This develops torque to hold the load.

Brake Specification

Brake Type: Non-excited
Static Friction Torque: 0.25Nm(35.4oz.in)
Moment of Interia: 0.6x10^-6kg.cm²
Voltage : 24V
Power: 5W
Heat-resistance Class: F
Max. Speed: 5000rpm
Weight: 0.2kg

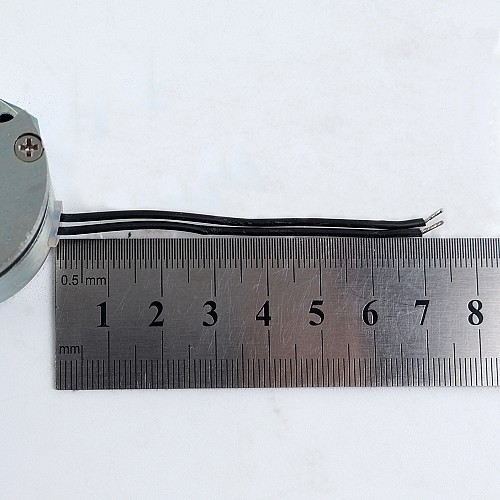

Product status note: this brake has scratches of varying degrees and the wires have been shortened to 0.065m.

Precautions for Brake Installation:
1. The motor must have a matching rear shaft.
2. There are corresponding mounting holes on motor, and the size fits.

Product Type
Product Type	Motor Brake
Brake Specification
Brake Power(W)	5
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	25
Brake Torque(oz.in)	35.4
Physical Specification
Inventory Method	Dedicated Inventory
