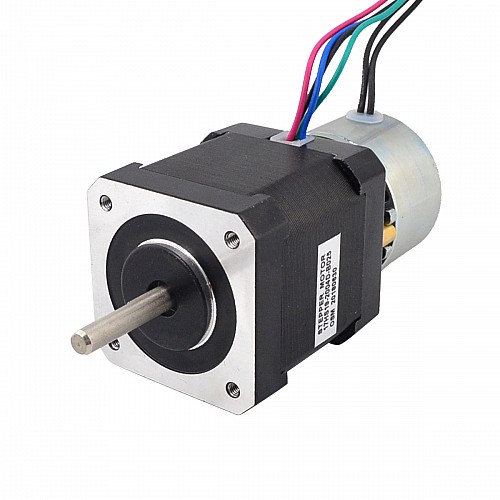

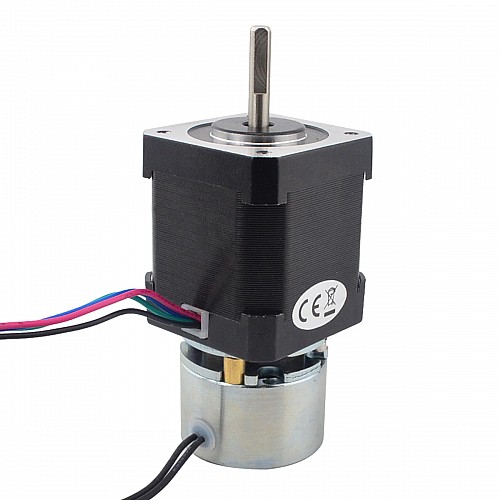

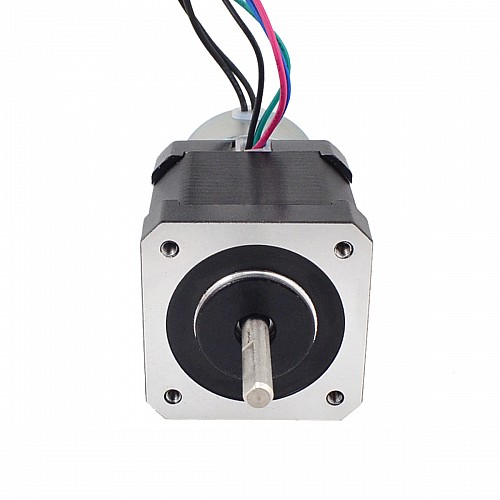

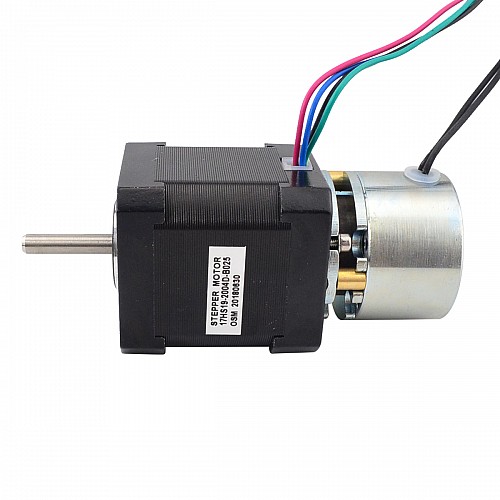

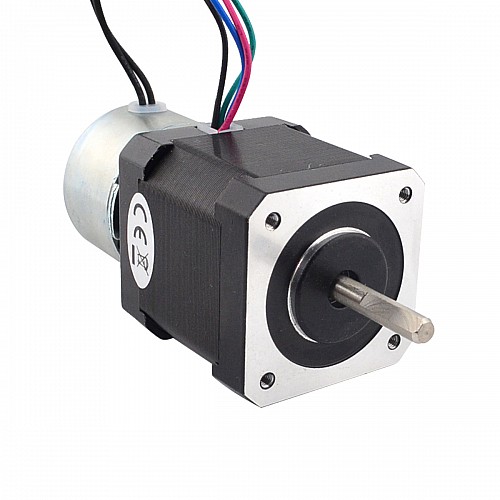

Nema 17 Stepper 0.59Nm(84oz.in) w/ Brake Friction Torque 0.25Nm(35.4oz.in)
€46.49
5 + €44.57
10 + €42.81
50 + €41.17
100 + €39.66
- In Stock: 10000
- Model: 17HS19-2004D-B025
- Gross Weight: 0.62kg
- Certificated: ISO, CE, UKCA, RoHS
Sold: 292
Click country for real-time stock
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.
Motor Specification
- Manufacturer Part Number: 17HS19-2004D-B025
- Motor Type: Bipolar Stepper
- Step Angle: 1.8deg
- Holding Torque: 0.59Nm(83.57oz.in)
- Rated Current/phase: 2.00A
- Voltage: 2.80V
- Phase Resistance: 1.4ohms
- Inductance: 3.00mH±20%(1KHz)
- Insulation Class: B 130°C[266°F]
- Frame Size: 42 x 42mm
- Motor Length: 48mm
- Shaft Diameter: Φ5mm
- Shaft Length: 24mm
- D-Cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm

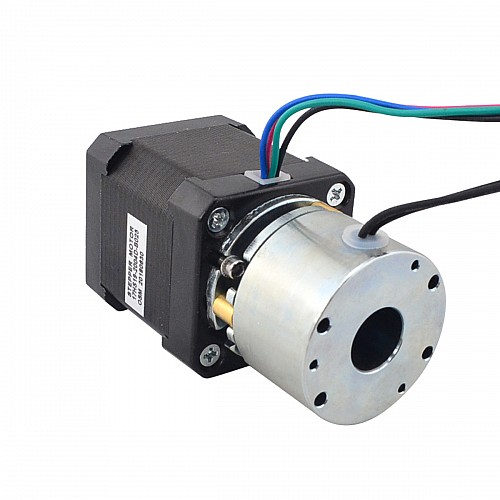

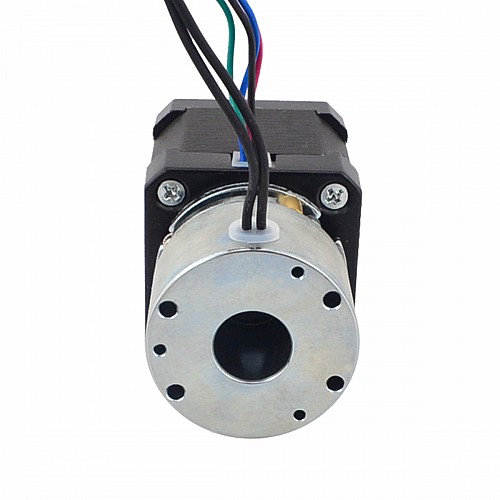

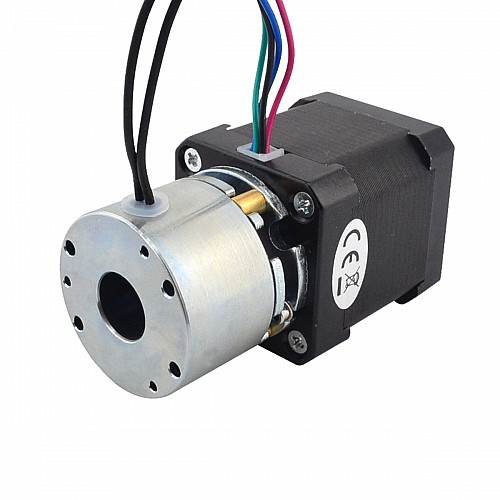

Brake Specification
- Brake Type: Non-excited
- Static Friction Torque: 0.25Nm(35.4oz.in)
- Moment of Inertia: 0.6x10-6kg.cm2
- Voltage: 24V
- Power: 5W
- Heat-resistance Class: F
- Max.Speed: 5000rpm
- Weight: 0.2kg
Connection
A+ |
A- |
B+ |
B- |
Black |
Green |
Red |
Blue |
Product Type | |
Product Type | Motor w/ Encoder & Brake & Gearbox |
Electrical Specification | |
Holding Torque(Ncm) | 59 |
Holding Torque(oz.in) | 83.57 |
Phase Resistance(ohms) | 1.4 |
Rated Current(A) | 2.0 |
Stepper Motor with | Brake |
Brake Specification | |
Brake Power(W) | 5 |
Brake Rated Voltage(V) | 24 |
Brake Torque(Ncm) | 25 |
Brake Torque(oz.in) | 35.4 |
Brake Type | Power Off Brake |
Physical Specification | |
Frame Size(mm) | Nema 17 (42 x 42) |
Inventory Method | Dedicated Inventory |
IP Rating | 40 |
Shaft Diameter(mm) | 5 |
Shaft Length(mm) | 24 |
