YS Series 1 Axis Closed Loop Stepper CNC Kit 12.0Nm(1699.34oz.in) Nema 34 Motor w/ 1.5m Cables & Driver

0 reviews - Write a review

C$115.53

5 + C$112.15

10 + C$108.97

50 + C$105.97

100 + C$103.13

In Stock: 10000
Model: 1-CL86Y-S120-1M5
Gross Weight: 6.95kg
Certificated: ISO, CE

Sold: 14573

Click country for real-time stock

Ships from

China

United States

Germany

United Kingdom

Russia

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

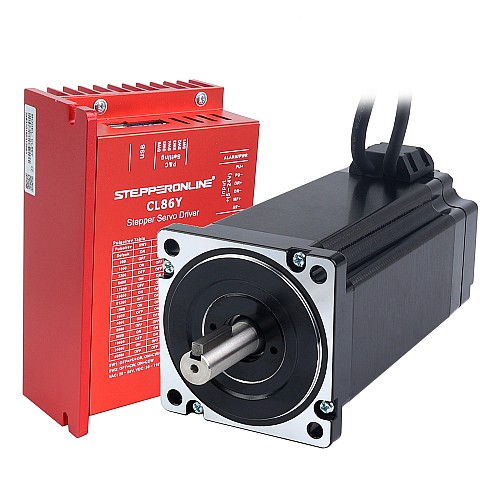

This CNC kit includes:

1 x 34HS59-6004D-E1K-1M5: S Series Nema 34 Closed Loop Stepper Motor 12.00Nm(1699.34oz.in)Encoder 1000PPR(4000CPR)
1 x CL86Y: Y Series Closed Loop Stepper Driver 0-8.5A 20-80VAC/30-110VDC for Nema 34 Stepper Motor

Motor Specification

Manufacturer Part Number: 34HS59-6004D-E1K-1M5
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 12.00Nm(1699.34oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.59ohms ± 10%
Inductance: 4.8mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]
Frame Size: 86 x 86mm
Body Length: 174mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Keyway Shaft Length: 25mm
Cable Length: 1500mm

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2channels
Supply Voltage Min: 4V
Supply Voltage Max: 5V
Output Current: 100mA
Output High Voltage: 5V
Output Low Voltage: 4.5V
Output Frequency Max: 60kHZ

Driver Specification

Output Peak Current: 0~8.5A（0~6 RMS）
Input Voltage: 20~80VAC/30~110VDC(Typical 48/60VDC)
Logic Input Current: 7~20mA
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ

Motor and Encoder Connection

A+	A-	B+	B-
Black	Green	Red	Blue

PIN	Black	Red	White	Yellow	Green	Blue
Encoder	EA+	VCC	GND	EB+	EB-	EA-

Common functions of the Y series drivers have been set up and can be used without debugging. If further debugging is required, please click here to purchase the required debugging cable.

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Closed Loop Stepper Kit
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	1200
Holding Torque(oz.in)	1699.34
Inductance(mH)	4.8
Input Voltage Reference(V)	24 - 80AC / 36 - 110DC
Number of Axes	1
Output Circuit Type	Differential type
Output Signal Channels	2
Phase Resistance(ohms)	0.59
Rated Current(A)	6.0
Physical Specification
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
Output Shaft Type	Keyway
Power Supply	No
Product Series	YS Series
Shaft Diameter(mm)	14
Shaft Length(mm)	37

File	Size
34HS59-6004D-E1K-1M5_Torque_Curve.pdf	163.02KB	Download
CL86Y.STP	5.44MB	Download
CL86Y_user_manual.pdf	819.26KB	Download
34HS59-6004D-E1K-1M5_Full_Datasheet.pdf	57.37KB	Download
Y_Series_Stepper_Driver_Debug_Software_7.4.zip	31.1MB	Download
