YS Series 1 Axis Stepper CNC Kit 3.00Nm(424.83oz.in) Nema 23 Stepper Motor & Driver

0 reviews - Write a review

€32.27

5 + €31.33

10 + €30.44

50 + €29.61

100 + €28.81

In Stock: 10000
Model: 1-DM556Y-23HS39
Gross Weight: 2.00kg
Certificated: ISO, CE, UKCA

Sold: 16150

Click country for real-time stock

Ships from

China

United States

Germany

United Kingdom

Australia

Russia

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

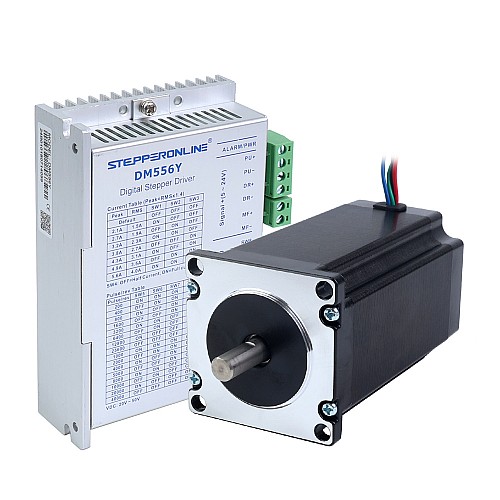

This CNC kit includes:

1 x 23HS39-5004S: Nema 23 Stepper Motor Bipolar 1.8deg 3.00Nm(424.83oz.in) 5.0A 57x57x100mm 4 Wires
1 x DM556Y: Y Series Digital Stepper Driver 1.7-5.6A DC20V-50V for Nema 23, 24, 34 Stepper Motor

Motor Specification

Manufacturer Part Number: 23HS39-5004S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 3.00Nm(424.83oz.in)
Rated Current/Phase:5.0A
Phase Resistance: 0.6ohms±10%
Inductance: 2.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]
Frame Size: 57 x 57mm
Body Length: 100mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-cut Length: 15mm
Number of Cables: 4
Cable Length: 400mm

Driver Specification

Output Peak Current: 1.7 - 5.6A(1.2~4.0RMS)
Input Voltage: DC20V~50V
Logic Signal Current: 7 - 15mA(Typical 10mA)
Pulse Input Frequency: 0 - 200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Open Loop Stepper Kit
Electrical Specification
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	300
Holding Torque(oz.in)	425
Input Voltage Reference(V)	24 - 48DC
No. of Phase	2
Number of Axes	1
Physical Specification
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Power Supply	No
Product Series	YS Series
Shaft Diameter(mm)	8
Shaft Length(mm)	21

File	Size
23HS39-5004S_Torque_Curve.pdf	169.48KB	Download
DM556Y.STP	6.61MB	Download
23HS39-5004S.STEP	1.49MB	Download
DM556Y_User_Manual_V1.0.pdf	755.65KB	Download
Y_Series_Stepper_Driver_Debug_Software_7.4.zip	31.1MB	Download
23HS39-5004S_Full_Datasheet.pdf	266.01KB	Download
