YS Series 1 Axis Closed Loop Stepper CNC Kit V2.0 2.00Nm(283.22oz.in) Nema 23 Motor & Driver

New

YS Series 1 Axis Closed Loop Stepper CNC Kit V2.0 2.00Nm(283.22oz.in) Nema 23 Motor & Driver

0 reviews - Write a review

C$74.49

5 + C$72.31

10 + C$70.26

50 + C$68.33

100 + C$66.50

In Stock: 10000
Model: 1-CL57Y-S20-V20
Gross Weight: 2.40kg
Certificated: ISO, CE

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

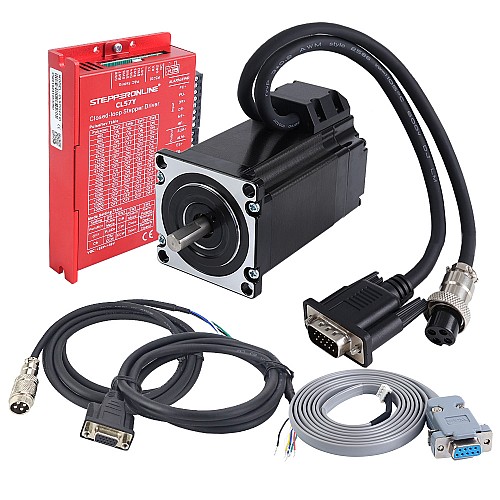

This CNC kit includes:

1 x 23HS30-5004D-E1000: Nema 23 Closed Loop Stepper Motor 2.00Nm(283.22oz.in) Encoder 1000PPR(4000CPR)
1 x CL57Y-V20: Y Series V2.0 Closed Loop Stepper Driver 0-7.0A 24-50VDC for Nema 17, 23, 24 Stepper Motor
1 x CE2-M2-20: 1.7m(67") Motor AWG20 and Encoder Extension Cable
1 x CABLE-PC-2: RS232 debugging cable

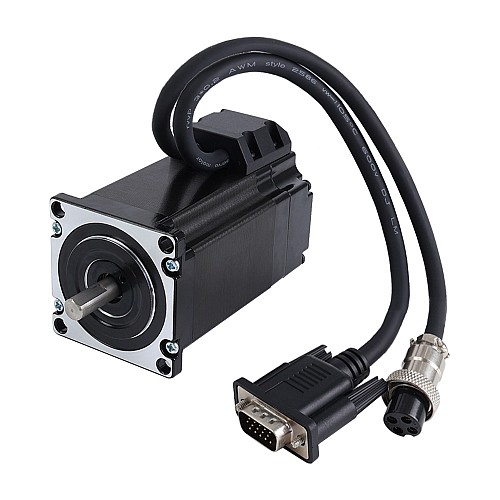

Motor Specification

Part Number: 23HS30-5004D-E1000
Number of phase: 2
Holding Torque: 2.00Nm(283.22oz.in)
Rated Current/phase: 5.0A
Phase Resistance: 0.42ohms
Inductance: 1.7mH ± 20%(1KHz)
Frame Size: 57 x 57mm
Body Length: 98mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-Cut Shaft Length: 15mm
Cable Length: 300mm
Insulation Class: B 130°C[266°F]

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2 channels
Minimum Supply Voltage: 4.5V
Maximum Supply Voltage: 5V
Output Current: 25mA
Output High Voltage: 4.5V
Output Low Voltage: 4.2-4.3V
Output Frequency Max: 60kHZ

Driver Specification

Output Peak Current: 0~7A(0~5RMS)
Input Voltage: +24~50VDC
Logic Input Current: 1~7.5mA
Pulse Input Frequency: 0~200kHz
Isulation Resistance: 10MΩ

Motor and Encoder Connection

A+	A-	B+	B-
1	2	3	4

PIN	1	2	3	11	12	13
Encoder	EA+	VCC	GND	EB+	EB-	EA-

The CL57Y-V20 improves upon the CL57Y by adding a 5V/24V selector switch and including a free RS232 debugging cable.

Common functions of the Y series drivers have been set up and can be used without debugging. If further debugging is required, please click here to purchase the required debugging cable.

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Closed Loop Stepper Kit
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	200
Holding Torque(oz.in)	283.22
Inductance(mH)	1.7
Input Voltage Reference(V)	24 - 48DC
Number of Axes	1
Output Circuit Type	Differential type
Output Signal Channels	2
Phase Resistance(ohms)	0.42
Rated Current(A)	5.0
Physical Specification
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Power Supply	No
Product Series	YS Series
Shaft Diameter(mm)	8
Shaft Length(mm)	21

File	Size
CL57Y-V20.STEP	14.7MB	Download
CL57Y(V2.0)_pulse_stepper_driver_manual_V1.0.pdf	852.7KB	Download
23HS30-5004D-E1000.STEP	8.79MB	Download
23HS30-5004D-E1000_Full_Datasheet.pdf	288.61KB	Download
