Y Series V2.0 Closed Loop Stepper Driver 0-7.0A 24-50VDC for Nema 17, 23, 24 Stepper Motor

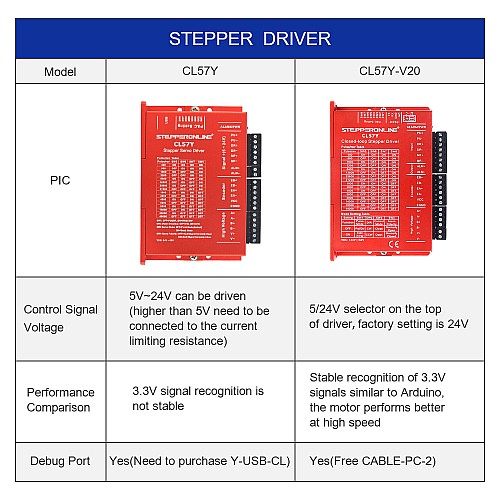

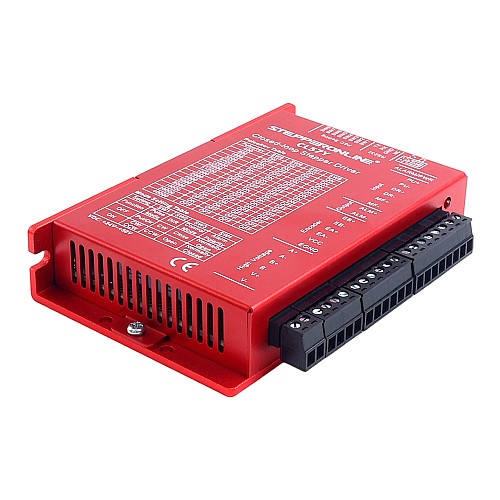

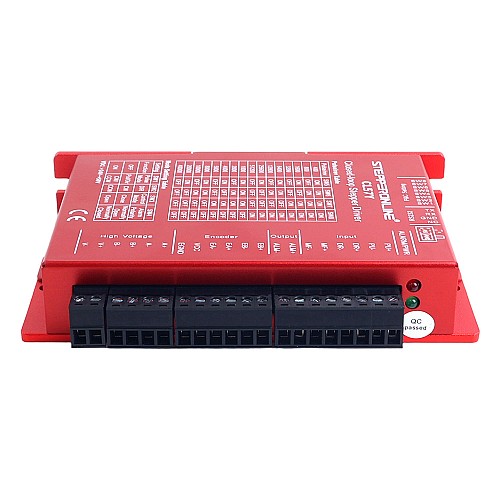

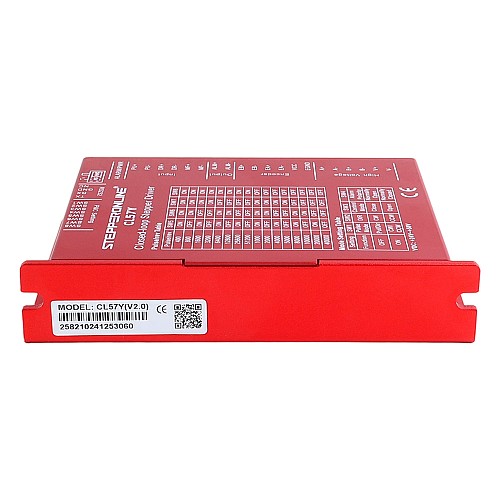

The CL57Y-V20 is an enhanced version of the CL57Y closed-loop stepper driver, designed to deliver greater versatility and ease of use. Key improvements include a selectable 5V/24V logic voltage selector, an RS232 debugging port (replacing the USB interface), and more stable 3.3V pulse signal reception.
Operating within a voltage input range of 24–50 VDC and a current range of 0–7.0 A, the driver offers robust and precise control for NEMA 17, 23, and 24 stepper motors, making it suitable for a wide variety of motion control applications.
The driver incorporates a 32-bit DSP and power angle vector control technology, enabling motor speeds exceeding 3000 rpm. Compared to traditional open-loop drives, it significantly reduces torque drop at high speeds, enhancing both motor performance and torque utilization for improved machining efficiency and accuracy. Additionally, load-based current regulation helps minimize motor heating, extending motor service life. Built-in alarm output and position error monitoring functions further support safe and reliable system integration.

Key Features

• Free RS232 debugging cable included

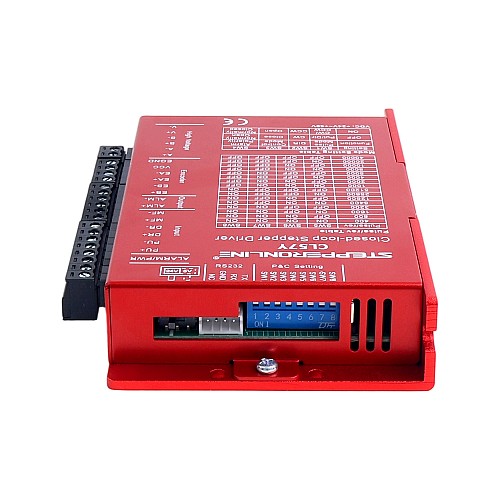

• 5V/24V logic voltage selector
• More stable 3.3V pulse signal reception
• Utilizes a new-generation 32-bit DSP for cost-effective, stable operation with superior anti-vibration performance
• Wide voltage input range: 24-50VDC; supports 16 microstep resolutions
• High pulse response frequency, up to 200kHz
• Minimal torque drop at high speeds, supporting rotations up to 3000rpm
• Built-in position and alarm output signals for simplified system monitoring and control
• Intelligent current adjustment reduces motor vibration, noise, and heating, improving overall efficiency by up to 35%

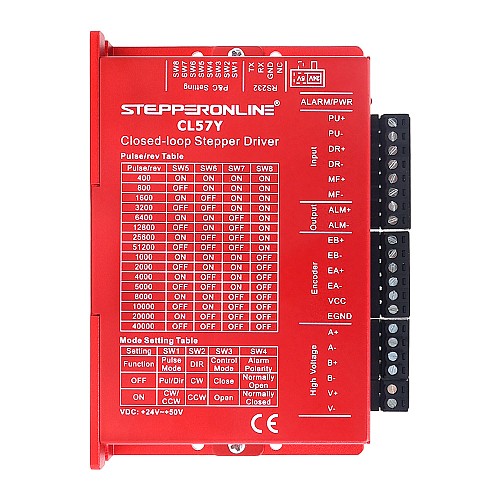

• Configurable for single-pulse or double-pulse modes (factory default: pulse + direction)
• Excellent high-speed performance and rigidity, the perfect combination of servo and stepping advantages

Electrical Specifications

• Output Peak Current: 0~7.0A(0~5.6RMS)
• Input Voltage: 24~50VDC
• Logic Input Current: 1~7.5mA
• Pulse Input Frequency: 0~200kHz
• Isulation Resistance: 10MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉)

• Cooling: Natural Cooling or Forced cooling
• Environment: Avoid dust, oil fog and corrosive gases
• Ambient Temperature: 0℃ － 65℃
• Humidity: 40%RH－90%RH
• Operating Temperature: 0℃ － 50℃
• Vibration: 10-50Hz / 0.15mm
• Storage Temperature: -20℃ － 65℃

Packing List

• 1 x CL57Y-V20 Driver
• 1 x CABLE-PC-2 (RS232 debugging cable)
