Name: Nema 23 Closed Loop Stepper Motor 2.00Nm(283.22oz.in) with Magnetic Encoder 1000PPR(4000CPR)
Brand: STEPPERONLINE
SKU: 23HS30-5004-ME1K
Price: 35.00 CAD
Availability: InStock

Nema 23 Closed Loop Stepper Motor 2.00Nm(283.22oz.in) with Magnetic Encoder 1000PPR(4000CPR)

23HS30-5004-ME1K

Shaft Diameter(mm)6.35

Shaft Length(mm)21

Output Signal Channels3

Holding Torque(Ncm)200

Question

Downloads

23HS30-5004-ME1K_Full_Datasheet.pdfPDF · 56.76KB 23HS30-5004-ME1K_Torque_Curve.pdfPDF · 181.71KB 23HS30-5004-ME1K.STEPSTEP · 1.14MBLog in to download

Same series

Model	Shaft Diameter(mm)	Shaft Length(mm)	Output Signal Channels	Holding Torque(Ncm)	Price	Stock
23HS22-2804-ME1K	6.35	21	3	120	C$33.23	In stock
23HS22-4004-ME1K	6.35	21	3	120	C$29.65	In stock
23HS22-4004D-E1000	8	21	2	120	C$36.16	In stock
23HS30-2504D-E1000-C1	8	21	3	200	C$56.51	Backorder
23HS30-2804-ME1K	6.35	21	3	185	C$40.93	In stock
23HS30-5004-ME1K	6.35	21	3	200	C$35.00	In stock
23HS30-5004D-E1000	8	21	2	200	C$41.51	In stock
23HS40-5004-ME1K	8	21	3	300	C$40.77	In stock
23HS40-5004D-E1000	8	22	2	300	C$50.17	In stock
23HS40-5004D-E1K-1M5	8	21	2	300	C$44.18	In stock
23HS45-4204-ME1K	10	24	3	300	C$50.00	In stock
23HS45-4204D-E1000	8	21	2	300	C$52.23	In stock

Nema 23 Closed Loop Stepper Motor 2.00Nm(283.22oz.in) with Magnetic Encoder 1000PPR(4000CPR)

This Nema 23 closed-loop stepper motor delivers a holding torque of 2.00Nm(283.22oz.in) and features... Read More

0 reviews • Write a review

from

C$35.00

5 + C$33.57

10 + C$32.23

50 + C$31.00

100 + C$29.87

Click country for real-time stock

Ships from

China

United States (+C$8.21)

Germany (+C$6.86)

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

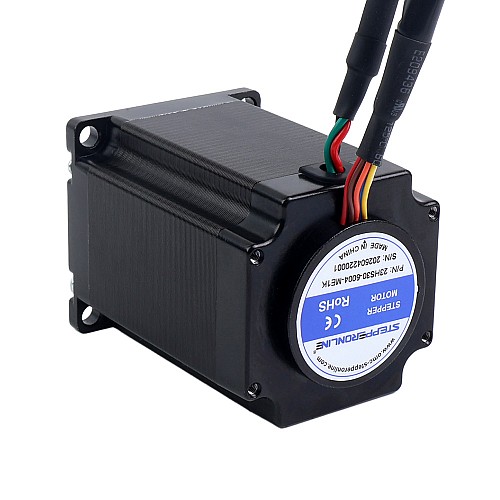

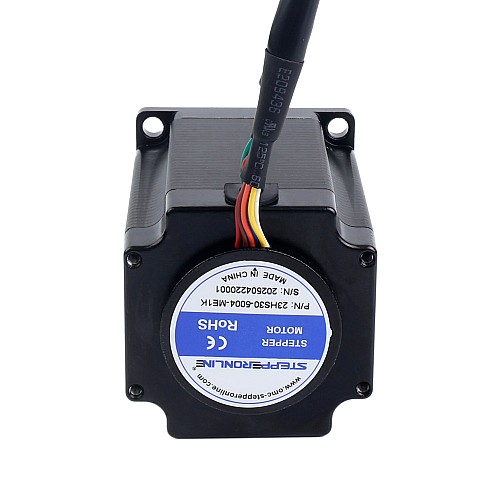

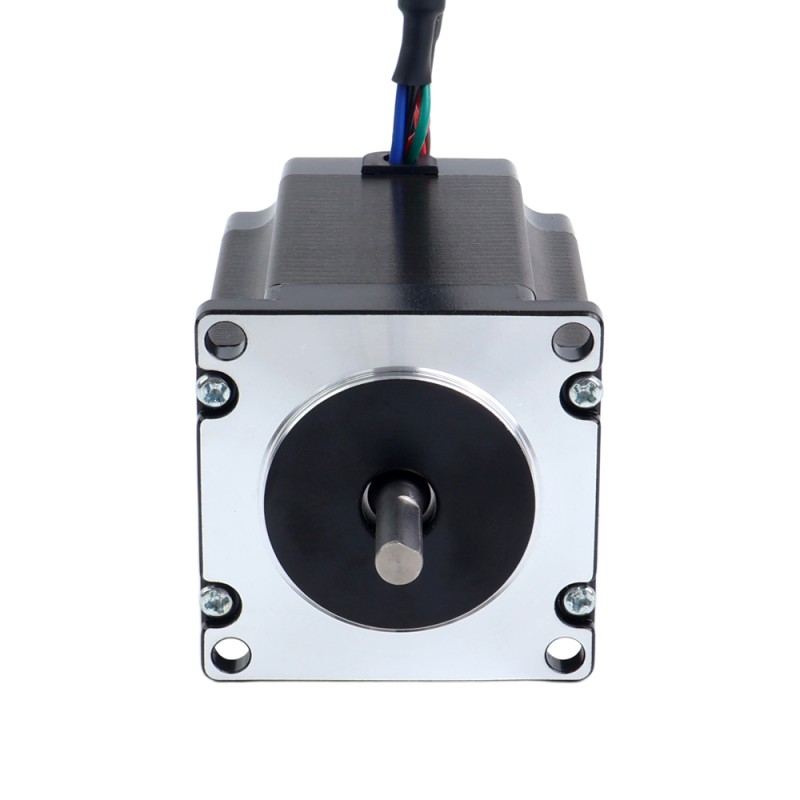

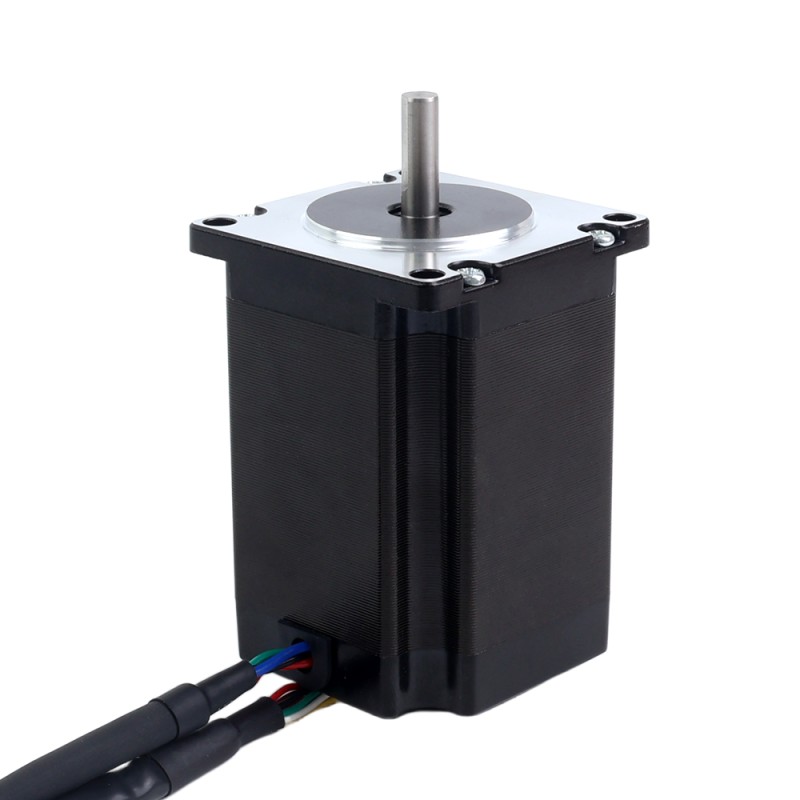

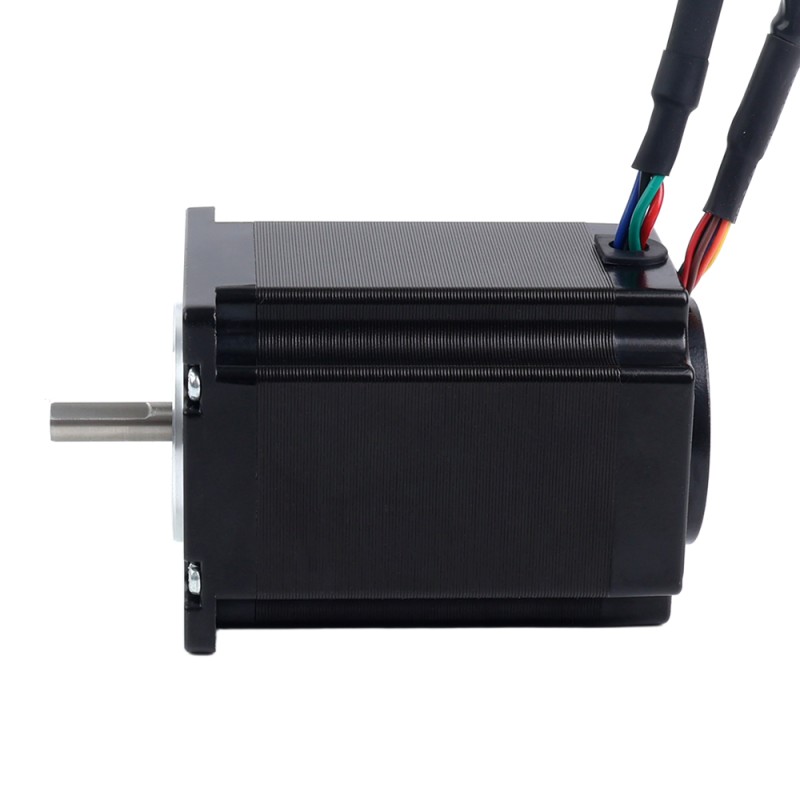

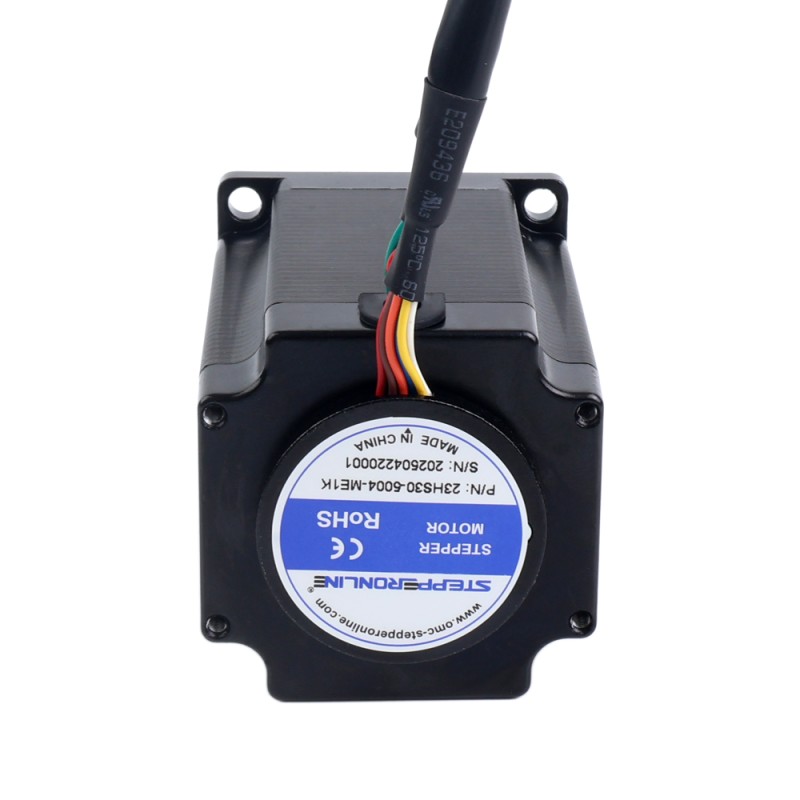

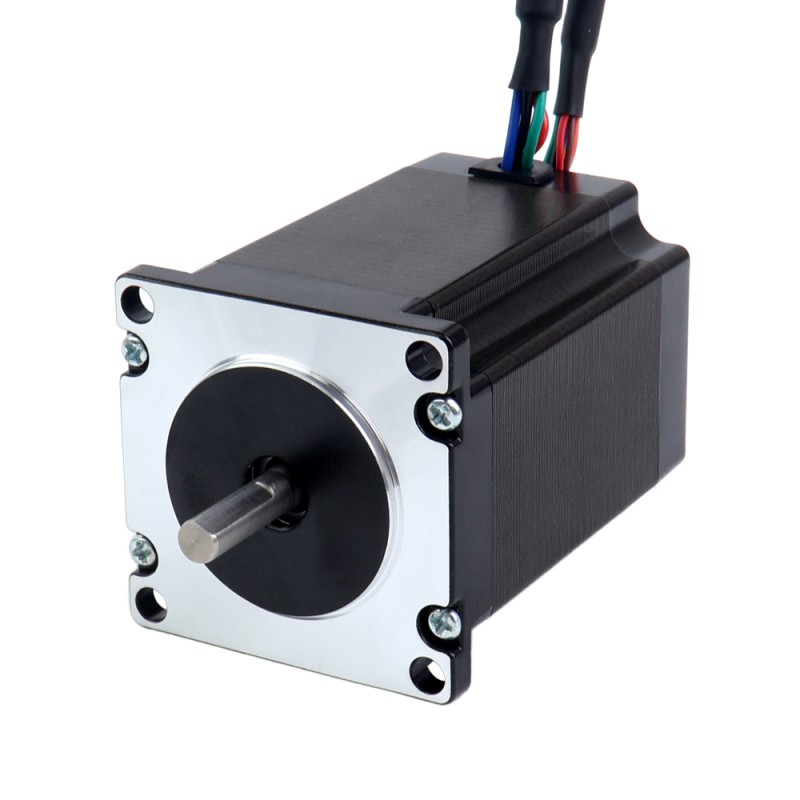

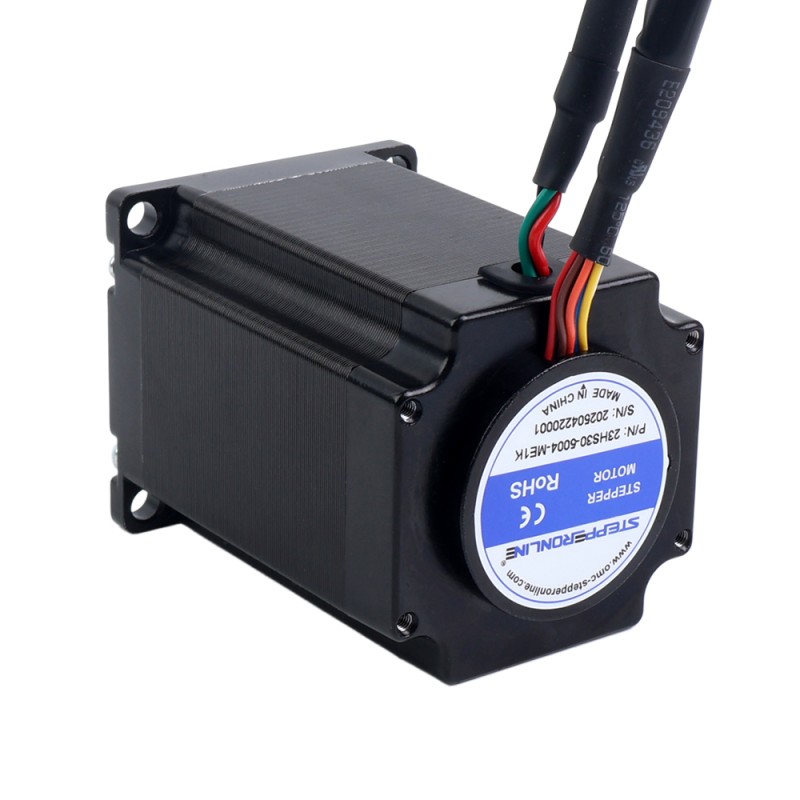

This Nema 23 closed-loop stepper motor delivers a holding torque of 2.00Nm(283.22oz.in) and features a compact magnetic incremental encoder with 3-channel output and 1000ppr(4000cpr) resolution. Compared to other closed-loop stepper motors of the same size, this motor delivers higher output torque, making it ideal for applications requiring precision positioning control in space-constrained yet high-torque scenarios, such as collaborative robots, medical equipment, rail transit, and aerospace systems.

Electrical Specification

Manufacturer Part Number: 23HS30-5004-ME1K
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 2.00Nm(283.22oz.in)
Rated Current/phase: 5.00A
Phase Resistance: 0.42ohms± 10%
Inductance: 1.70mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 76mm
Shaft Diameter: Φ6.35mm
Shaft Length: 21mm
D-cut Length: 15mm
Lead Length: 500mm
Weight: 1.10kg

Encoder Specification

Output Circuit Type: Differential
Encoder Type: Magnetic Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 3 channels
Supply Voltage Min: 3.3V
Supply Voltage Max: 5.5V
Output Current: 20mA
Output High Voltage: 5V
Output Low Voltage: 0.2V
Output Frequency Max: 400kHZ

Motor and Encoder Connection

Motor	A+	A-	B+	B-
Wire	Green	Black	Red	Blue

Encoder	GND	VCC	EA+	EB+	EA-	EB-	EZ+	EZ-
Wire	Black	Red	Brown	Blue	Orange	Green	Yellow	White

Product Type
Product Type	Closed Loop Stepper Motor
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Magnetic Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	200
Holding Torque(oz.in)	283.22
Inductance(mH)	1.7
Output Circuit Type	Differential
Output Signal Channels	3
Phase Resistance(ohms)	0.42
Rated Current(A)	5.0
Physical Specification
Body Length(mm)	76
Frame Size(mm)	Nema 23 (57 x 57)
IP Rating	40
Product Series	S
Shaft Diameter(mm)	6.35
Shaft Length(mm)	21
