Nema 11 Stepper L=51mm w/ Rear Shaft & Screw Hole & Gear Ratio 5:1 Gearbox

0 reviews - Write a review

C$52.55

5 + C$49.95

10 + C$47.61

50 + C$45.47

100 + C$43.51

In Stock: Pre-order
Model: 11HS20-0674D-PG5
Gross Weight: 0.23kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 67

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

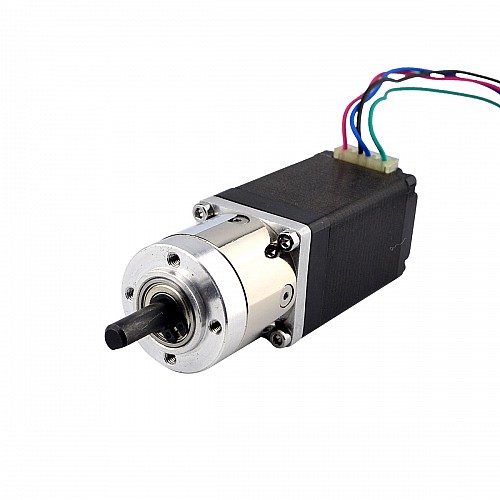

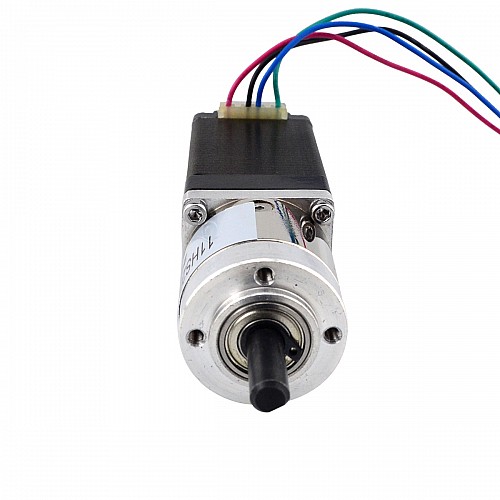

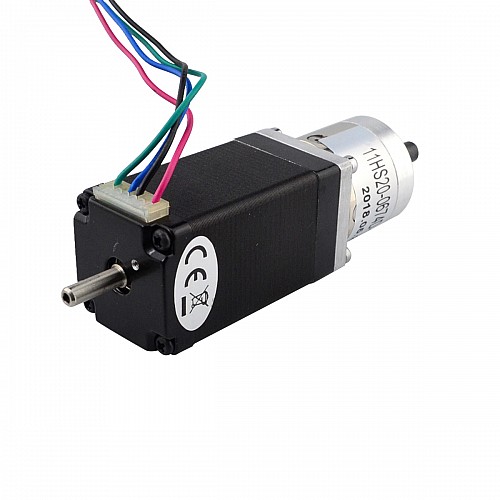

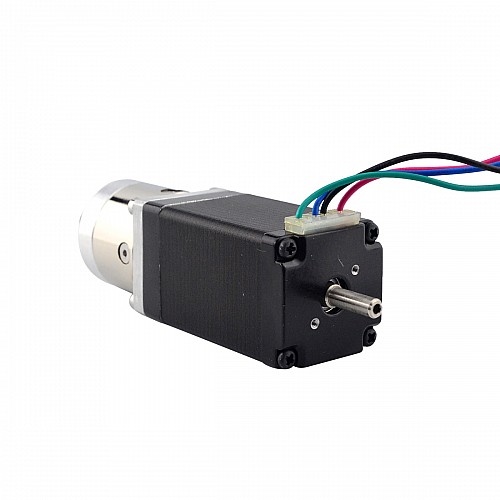

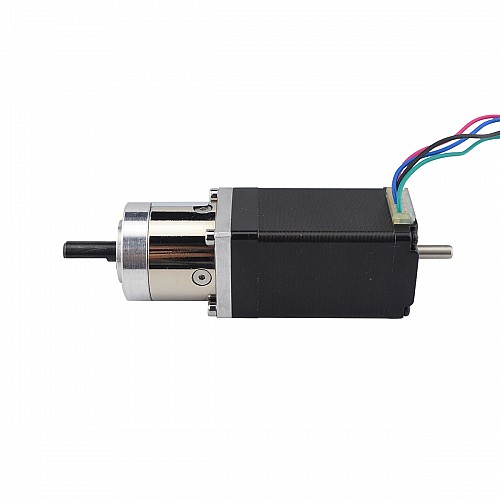

This Nema 11 stepper motor with 51mm body and 0.67A rated current, integrated a planetary gearbox of 5.18:1 gear ratio. A 5mm diameter rear shaft is available. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 11HS20-0674D-PG5
Motor Type: Bipolar Stepper
Holding Torque: 12Ncm(17.04oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 12ohms
Inductance: 6.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type:Planetary
Gear Ratio: 5.18:1
Efficiency: 90%
Backlash at No-load:<=3deg
Max.Permissible Torque: 3Nm(425oz.in)
Moment Permissible Torque: 5Nm(708oz.in)
Shaft Maximum Axial Load: 5N
Shaft Maximum Radial Load: 25N

Physical Specification

Frame Size: 28 x 28mm
Motor Length: 51mm
Gearbox Length:27mm
Front Shaft Diameter: Φ6mm
Front Shaft Length: 18mm
Front D-cut Length: 12mm
Rear Shaft Diameter: Φ4mm
Rear Shaft Length:12mm
Number of Leads: 4
Lead Length: 500mm
Weight: 184g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	0.67
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.12
Inductance(mH)	6.5
Phase Resistance(ohms)	12
Physical Specification
Backlash at No-load	<=1deg
Body Length(mm)	78
Frame Size(mm)	Nema 11 (28 x 28)
Gear Ratio(xx:1)	5.18
Gearbox Type	Economy Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	18
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	400
