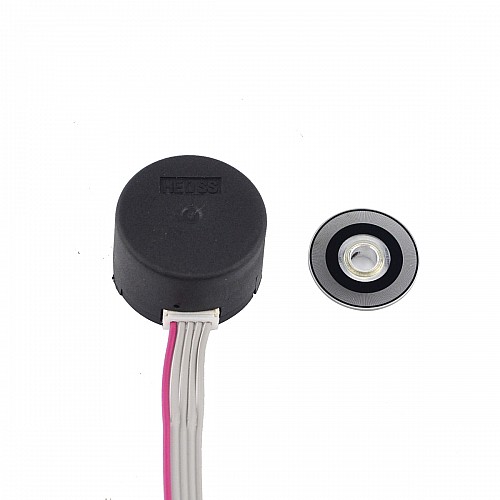

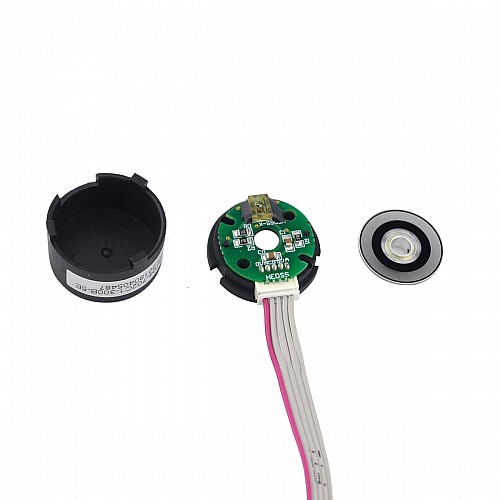

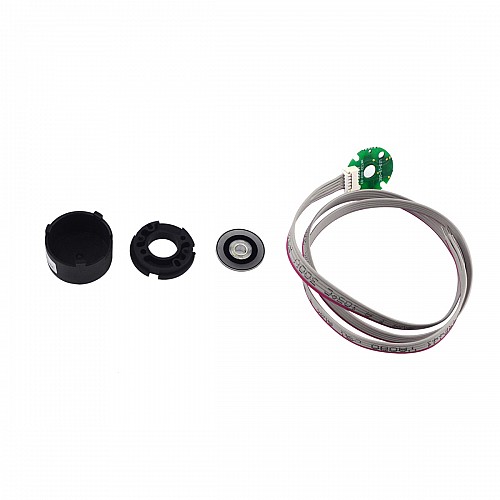

300PPR Optical Rotary Encoder AB 2-Channel ID 4mm for HKT22 Stepper Motor
C$29.81
5 + C$28.67
10 + C$27.62
50 + C$26.64
100 + C$25.74
- In Stock: 10000
- Model: HKT2204-702C1-300B-5E
- Gross Weight: 0.14kg
- Certificated: ISO
Sold: 299
Click country for real-time stock
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.
Encoder Specification
- Output Circuit Type: Push-Pull (Single-Ended)
- Controlled By: Encoder Interface
- Encoder Resolution: 300PPR
- Output Signal Channels: 2
Electrical Specification
- Supply Voltage Min: 5VDC
- Supply Voltage Max: 5VDC
- Output Current: ≤20mA
- Output High Voltage: ≥3.4VDC
- Output Low Voltage: ≤0.3VDC
- Output Frequency Max: 30KHZ
Physical Specification
- Shaft Diameter: 4mm
- Operating Temperature Min: -20℃
- Operating Temperature Max: 85℃
- Cable Length: 0.5m
Electrical Specification | |
Encoder Resolution | 300ppr |
Encoder Type | Optical |
Physical Specification | |
Inventory Method | Dedicated Inventory |
File | Size | |
---|---|---|
HKT22.pdf | 2.34MB | Download |
