3IK15GN-C/3GN100K
Output Shaft TypeKeyway
Input Voltage(V)1PH 220VAC
Frame Size(mm)70 x 70
Current(A)0.17
Question

Downloads

3IK15GN-C_3GNXXK_manual.pdfPDF · 2.16MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
3IK15GN-A/3GN100KKeyway1PH 110VAC70 x 700.35C$41.21In stock
3IK15GN-A/3GN10KKeyway1PH 110VAC70 x 700.35C$36.99In stock
3IK15GN-A/3GN15KKeyway1PH 110VAC70 x 700.35C$36.99In stock
3IK15GN-A/3GN200KKeyway1PH 110VAC70 x 700.35C$41.21In stock
3IK15GN-A/3GN20KKeyway1PH 110VAC70 x 700.35C$39.09In stock
3IK15GN-A/3GN30KKeyway1PH 110VAC70 x 700.35C$39.09In stock
3IK15GN-A/3GN3KKeyway1PH 110VAC70 x 700.35C$36.99In stock
3IK15GN-A/3GN50KKeyway1PH 110VAC70 x 700.35C$39.09In stock
3IK15GN-A/3GN5KKeyway1PH 110VAC70 x 700.35C$36.99In stock
3IK15GN-C/3GN100KKeyway1PH 220VAC70 x 700.17C$41.21In stock
3IK15GN-C/3GN10KKeyway1PH 220VAC70 x 700.17C$36.99In stock
3IK15GN-C/3GN10K-SALEKeyway1PH 220VAC70 x 700.17C$37.57In stock
3IK15GN-C/3GN15KKeyway1PH 220VAC70 x 700.17C$36.99In stock
3IK15GN-C/3GN200KKeyway1PH 220VAC70 x 700.17C$41.21In stock
3IK15GN-C/3GN20KKeyway1PH 220VAC70 x 700.17C$39.09In stock
3IK15GN-C/3GN30KKeyway1PH 220VAC70 x 700.17C$39.09In stock
3IK15GN-C/3GN3KKeyway1PH 220VAC70 x 700.17C$36.99In stock
3IK15GN-C/3GN50KKeyway1PH 220VAC70 x 700.17C$39.09In stock
3IK15GN-C/3GN5KKeyway1PH 220VAC70 x 700.17C$36.99In stock

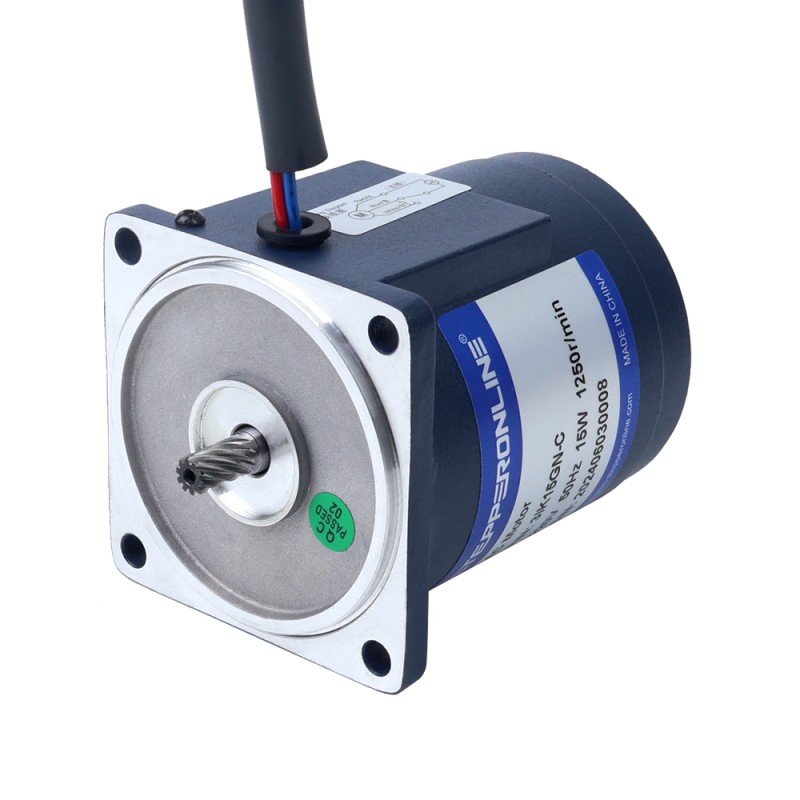

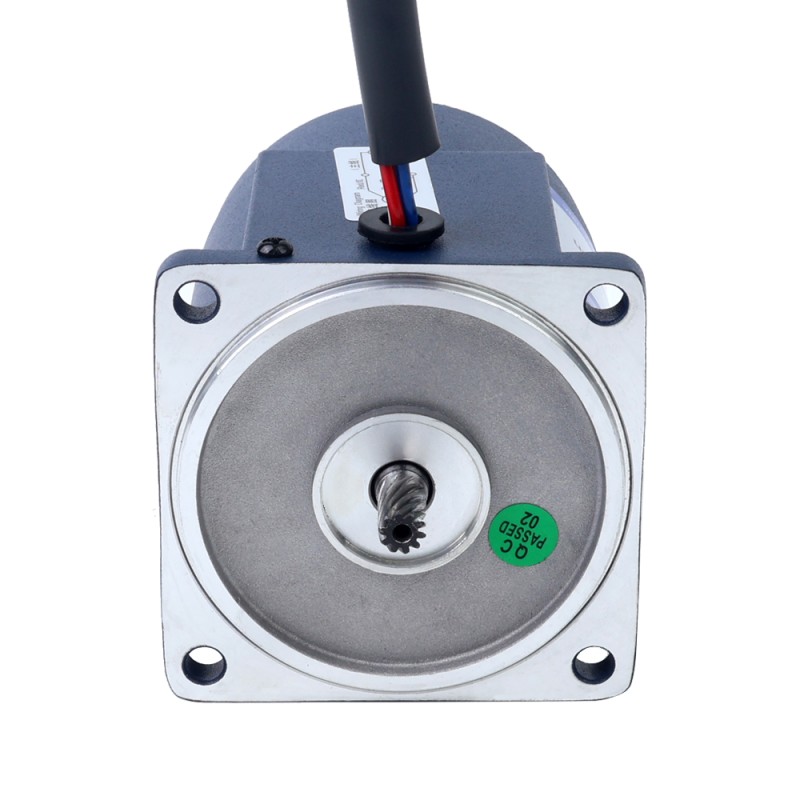

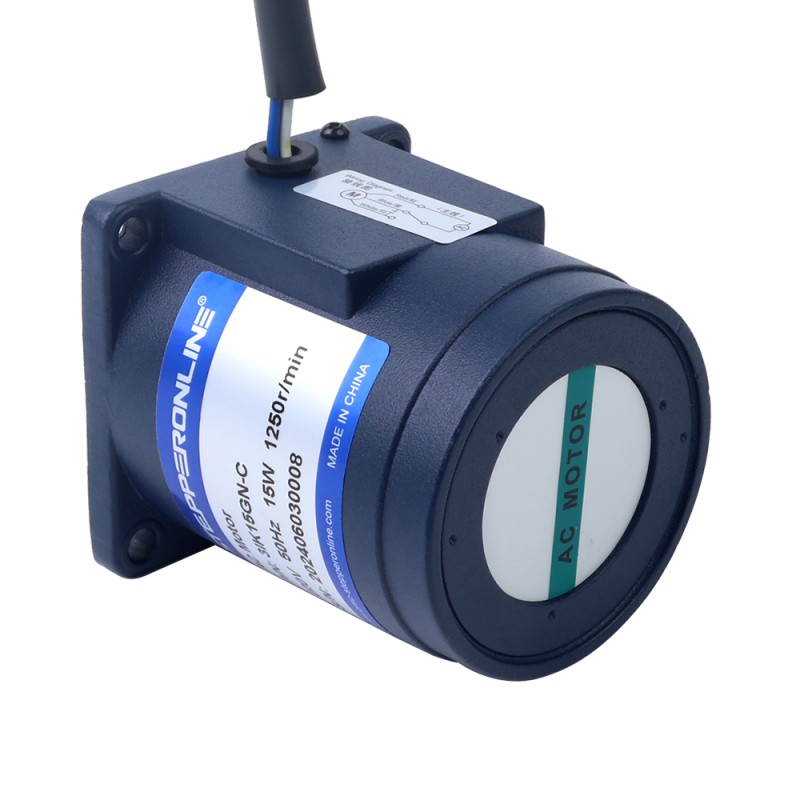

15W 220VAC 50Hz 13.5RPM 5.00Nm(708.06oz.in) Flange 70mm Spur Gearbox Single-phase AC Induction Motor
This 70x70mm single-phase AC induction gear motor is powered by 220VAC and has a gear ratio of 100, ... Read More
0 reviews • Write a review
from
C$41.21
5 + C$40.11
10 + C$39.05
50 + C$38.06
100 + C$37.12

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This 70x70mm single-phase AC induction gear motor is powered by 220VAC and has a gear ratio of 100, a torque of 5.00Nm(708.06oz.in) and a speed of 13.5rpm. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 3IK15GN-C/3GN100K
  • Gearbox Type: Spur Gearbox
  • Output Power: 15W
  • Voltage: 1PH 220VAC
  • Frequency: 50Hz
  • Current: 0.17A
  • Gear Ratio: 100:1
  • Speed: 13.5rpm
  • Torque: 5.00Nm(708.06oz.in)
  • Capacitor: 1.2μF/450VAC

Physical Specifications

  • Frame Size: 70x70mm
  • Body Length: 124mm
  • Shaft Type: Keyway
  • Shaft Diameter: Φ10mm
  • Shaft Length: 33mm
  • Weight: 1.6kg

Wiring

Electrical Specification
Current(A) 0.17
Frequency(Hz) 50
Input Voltage(V) 1PH 220VAC
Output Power(W) 15
Speed(rpm) 13.5
Torque(Nm) 5
Physical Specification
Frame Size(mm) 70 x 70
Gear Ratio(xx:1) 100
Gearbox Type Spur Gearbox
Output Shaft Type Keyway

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

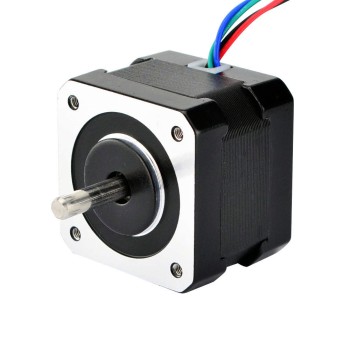

Dual Shaft Nema 17 Bipolar 1.8deg 26Ncm(36.82oz.in) 0.4A 42x42x34mm 4 Wires
Dual Shaft Nema 17 Bipolar 1.8deg 26Ncm(36.82oz.in) 0.4A 42x42x34mm 4 Wires
This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x34mm. It has 4 wires, each phase draws current 0.4A, with holding torque 26Nc..
from
C$12.69
Add to Cart
Add to Wish List Compare this Product
Quickview
Digital Stepper Driver 0.3-2.2A 10-30VDC for Nema 8, 11, 14, 16, 17 Stepper Motor
🔥 Bestseller
Digital Stepper Driver 0.3-2.2A 10-30VDC for Nema 8, 11, 14, 16, 17 Stepper Motor
This is a digital stepper drive implemented with advanced stepper control technology. It is easy to use and it can be used to drive 2-phase and 4-phas..
from
C$19.94
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 17 Bipolar Stepper Motor 1.8deg 16Ncm(22.66oz.in) 1A Extruder Motor 42x42x21.5mm 4 Wires
🔥 Bestseller
Nema 17 Bipolar Stepper Motor 1.8deg 16Ncm(22.66oz.in) 1A Extruder Motor 42x42x21.5mm 4 Wires
This is the shortest bipolar Nema 17 stepper motor we have, with a step angle of 1.8deg, a shaft diameter of Φ5mm and size 42x42x21.5mm. It has 4 wire..
from
C$11.59
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 5:1 Planetary Gearbox
Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 5:1 Planetary Gearbox
This Nema 14 stepper motor with 52mm body and 1.5A rated current, integrated a planetary gearbox of 5.18:1 gear ratio. It's a good solution to applica..
from
C$57.99
Add to Cart
Add to Wish List Compare this Product
Quickview

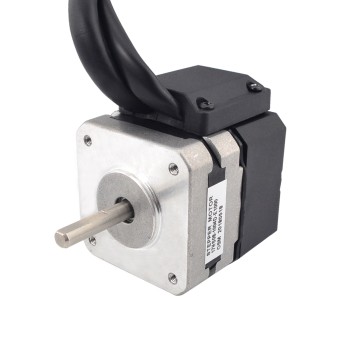

Nema 17 Closed Loop Stepper Motor 13Ncm(18.41oz.in) Encoder 1000PPR(4000CPR)
Nema 17 Closed Loop Stepper Motor 13Ncm(18.41oz.in) Encoder 1000PPR(4000CPR)
Motor Specification Manufacturer Part Number: 17HS08-1004D-E1000 Motor Type: Bipolar Stepper Step Angle: 1.8deg Holding Torque: 0.13Nm(18.41oz.i..
from
C$0.00
Add to Cart
Add to Wish List Compare this Product
Quickview

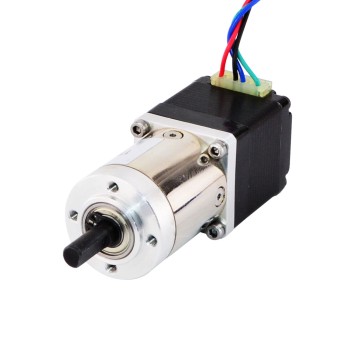

Nema 11 Stepper L=31mm w/ Rear Shaft & Gear Ratio 14:1 Planetary Gearbox
Nema 11 Stepper L=31mm w/ Rear Shaft & Gear Ratio 14:1 Planetary Gearbox
This Nema 11 stepper motor with 32mm body and 0.67A rated current, integrated a planetary gearbox of 13.73:1 gear ratio. It's a good solution to appli..
from
C$50.00
Add to Cart
Add to Wish List Compare this Product
Quickview

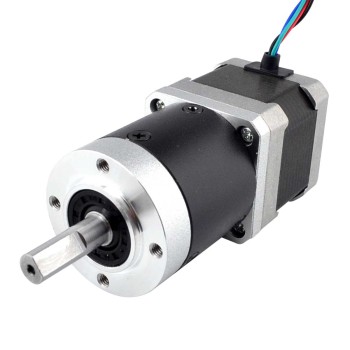

Nema 17 Stepper Motor L=39mm Gear Ratio 20:1 High Precision Planetary Gearbox
