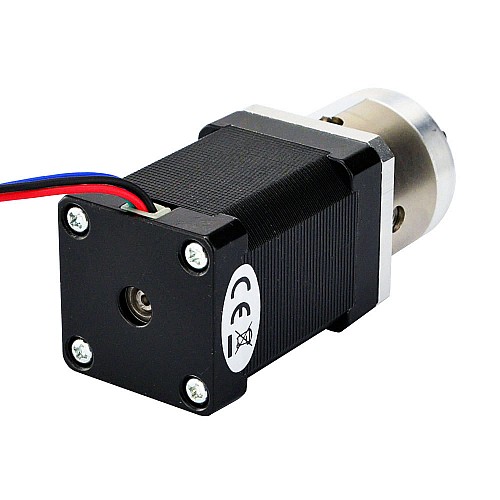

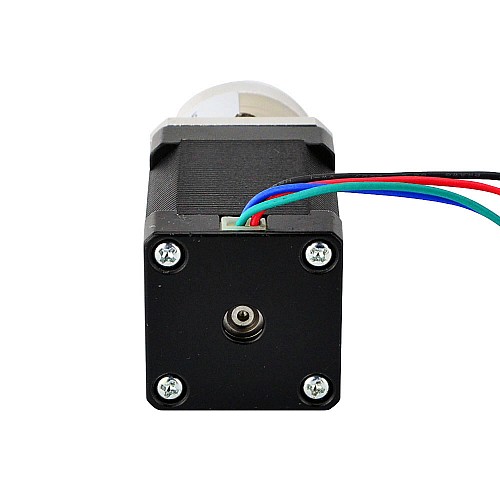

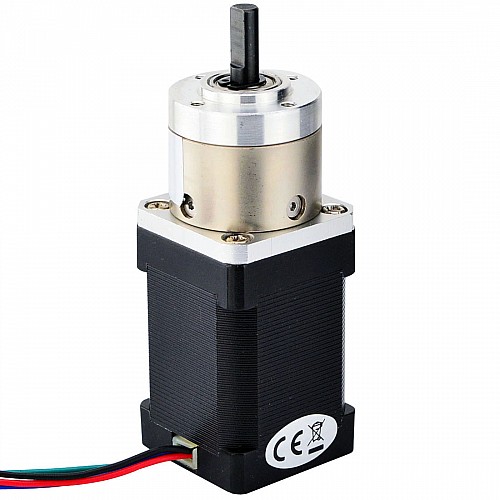

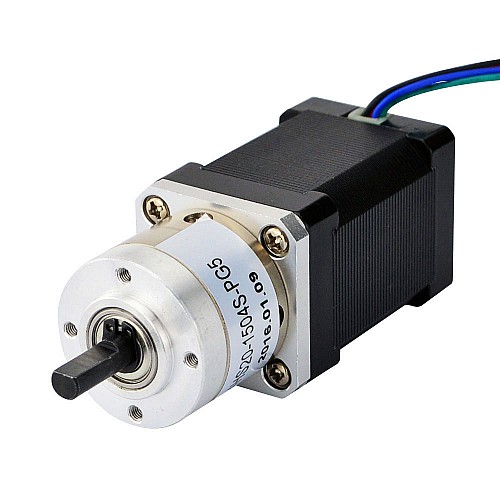

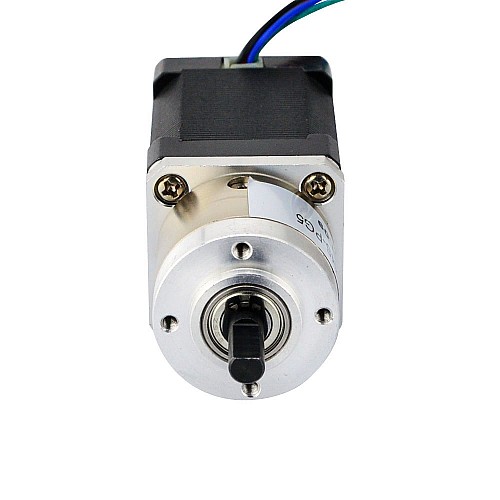

Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 5:1 Planetary Gearbox

1 reviews - Write a review

C$59.19

5 + C$56.11

10 + C$53.34

50 + C$50.82

100 + C$48.54

In Stock: 10000
Model: 14HS20-1504S-PG5
Gross Weight: 0.60kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 233

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This Nema 14 stepper motor with 52mm body and 1.5A rated current, integrated a planetary gearbox of 5.18:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 14HS20-1504S-PG5
Motor Type: Bipolar Stepper
Step Angle: 0.35deg
Holding Torque without Gearbox: 40Ncm(56.64oz.in)
Rated Current/phase: 1.5A
Phase Resistance: 2.8ohms
Inductance: 3.8mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 5.18:1
Efficiency: 90%
Backlash at No-load: <=3deg
Max.Permissible Torque: 3Nm(424.83oz.in)
Moment Permissible Torque: 5Nm(708.06oz.in)
Shaft Maximum Axial Load: 50N
Shaft Maximum Radial Load: 100N

Physical Specifications

Frame Size: 35 x 35mm
Motor Length: 52mm
Gearbox Length: 29.2mm
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-cut Length: 12mm
Number of Leads: 4
Lead Length: 400mm
Weight: 400g

Connection

A+	A-	B+	B-
Red	Green	Yellow	Blue

Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	1.5
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	0.40
Inductance(mH)	3.8
Phase Resistance(ohms)	2.8
Physical Specification
Backlash at No-load	<=3deg
Body Length(mm)	80.2
Frame Size(mm)	Nema 14 (35 x 35)
Gear Ratio(xx:1)	5.18
Gearbox Type	Economy Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	400
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	18
Single Shaft/Dual Shaft	Single Shaft

File	Size
14HS20-1504S-PG5_Full_Datasheet.pdf	140.52KB	Download
14HS20-1504S-PG5.STEP	1.87MB	Download
14HS20-1504S-PG5_Torque_Curve.pdf	176.38KB	Download
14HS20-1504S_Torque_curve.pdf	212.77KB	Download
