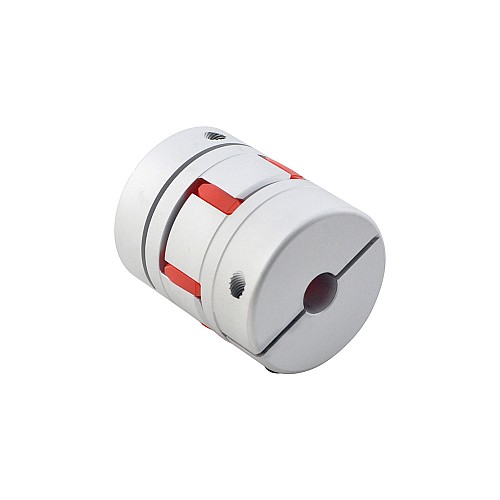

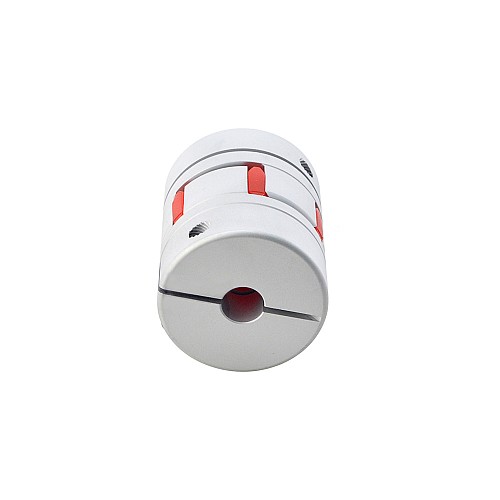

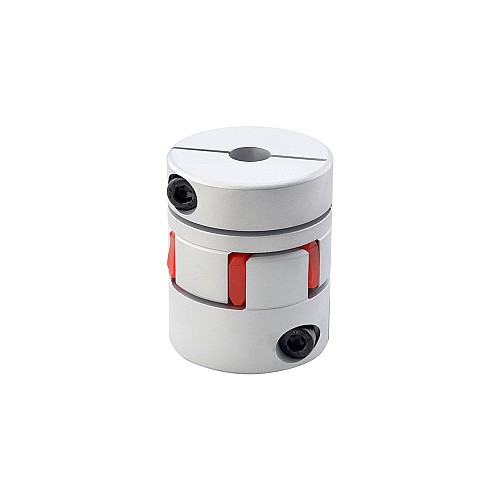

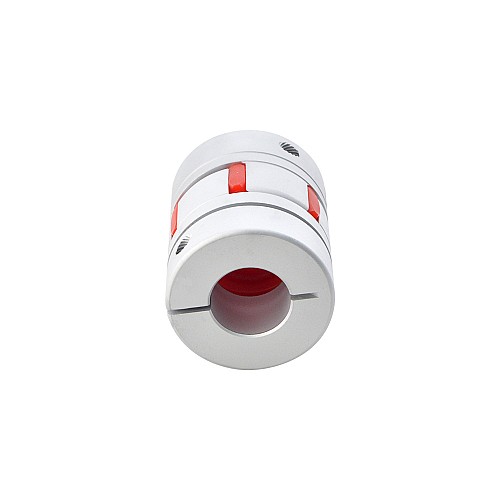

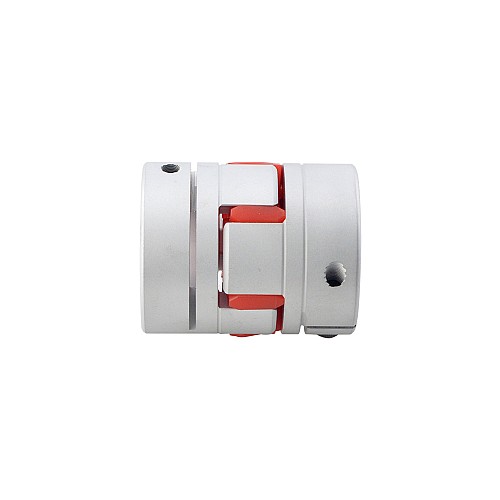

19mm - 19mm Flexible Jaw Coupling 40x55mm CNC Stepper Motor Shaft Coupler

0 reviews - Write a review

C$16.56

5 + C$15.82

10 + C$15.14

50 + C$14.50

100 + C$13.94

In Stock: 10000
Model: ST-JC45
Gross Weight: 0.20kg
Certificated: ISO

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Shaft: 19mm - 19mm
P/N: ST-JC45
Diameter: 40mm
Length: 55mm
Sleeve Material: Polyurethane
Body Material: Aluminum Alloy

Coupling Specification
Body Length(mm)	55
Coupling Type	Jaw Shaft Coupling
Diameter(mm)	40
Matching Shaft Diameter(mm)	19 - 19
Physical Specification
Inventory Method	Dedicated Inventory

Bore Diameter
With Keyway/without keyway, other special-shaped hole
Overall Length
Material(45/304 stainless steel)
Outside Diameter

Model(Jaw)	d1(mm)	d2(mm)	D(mm)	L(mm)	L1(mm)	L2(mm)	Clamp Screw				Rated Torque(Nm)	Max.Torque(Nm)	Max.Speed(rpm)	Moment of Inertia(kg.cm²)	Static Torsional Spring Constant(Nm/rad)	Radial Deviation(°)	Angle Deviation(°)	Axial Deviation(°)	Weight
Model(Jaw)	d1(mm)	d2(mm)	D(mm)	L(mm)	L1(mm)	L2(mm)	M(mm)	Distance1(F)	Distance2(G)	Tightening Torque	Rated Torque(Nm)	Max.Torque(Nm)	Max.Speed(rpm)	Moment of Inertia(kg.cm²)	Static Torsional Spring Constant(Nm/rad)	Radial Deviation(°)	Angle Deviation(°)	Axial Deviation(°)	Weight
MH2025-5-5	5	5	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-4	55	0.02	1	0.6	17
MH2025-5-6	5	6	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-5	55	0.02	1	0.6	17
MH2025-5-6.35	5	6.35	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-6	55	0.02	1	0.6	17
MH2025-5-8	5	8	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-6	55	0.02	1	0.6	17
MH2025-6-10	6	10	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-7	55	0.02	1	0.6	17
MH2025-6.35-6.35	6.35	6.35	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-8	55	0.02	1	0.6	17
MH2025-6.35-8	6.35	8	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-9	55	0.02	1	0.6	17
MH2025-6.35-10	6.35	10	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-10	55	0.02	1	0.6	17
MH2025-8-8	8	8	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-11	55	0.02	1	0.6	17
MH2025-8-10	8	10	20	25	7.5	10	M3	3.75	7	1.3	2.8	5.6	17000	6.7*10^-12	55	0.02	1	0.6	17
MH2530-6.35-8	6.35	8	25	30	9.5	11	M3	5	8	1.5	6	12	16000	7.6*10^-4	63	0.02	1	0.6	30
MH2530-6.35-10	6.35	10	25	30	9.5	11	M3	5	8	1.5	6	12	16000	7.6*10^-5	63	0.02	1	0.6	30
MH2530-8-8	8	8	25	30	9.5	11	M3	5	8	1.5	6	12	16000	7.6*10^-6	63	0.02	1	0.6	30
MH2530-8-10	8	10	25	30	9.5	11	M3	5	8	1.5	6	12	16000	7.6*10^-7	63	0.02	1	0.6	30
MH2530-8-12	8	12	25	30	9.5	11	M3	5	8	1.5	6	12	16000	7.6*10^-8	63	0.02	1	0.6	30
MH2530-10-12	10	12	25	30	9.5	11	M3	5	8	1.5	6	12	16000	7.6*10^-9	63	0.02	1	0.6	30
MH3035-8-14	8	14	30	35	11.5	12	M4	5.75	11	1.7	6.5	13	15000	8.5*10^-4	72	0.02	1	0.6	50
MH3035-12-14	12	14	30	35	11.5	12	M4	5.75	11	1.7	6.5	13	15000	8.5*10^-5	72	0.02	1	0.6	50
MH3035-14-14	14	14	30	35	11.5	12	M4	5.75	11	1.7	6.5	13	15000	8.5*10^-6	72	0.02	1	0.6	50
