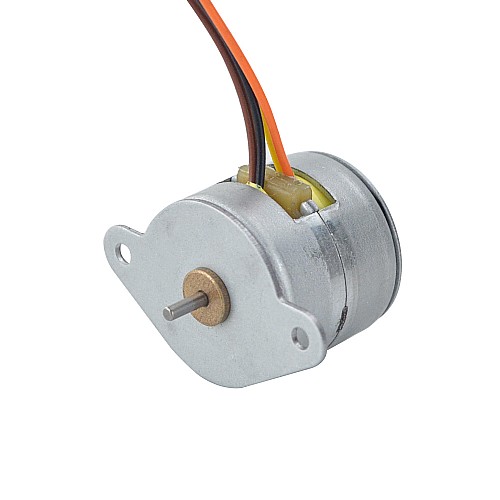

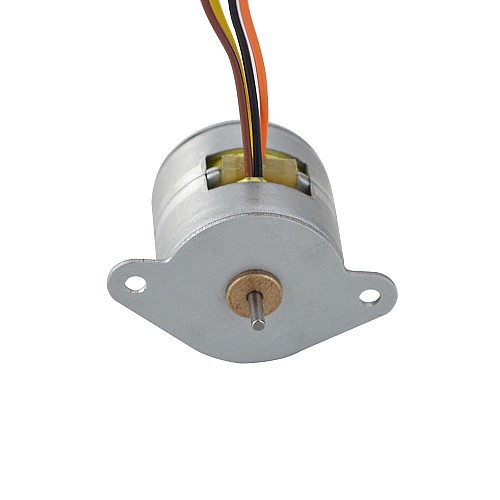

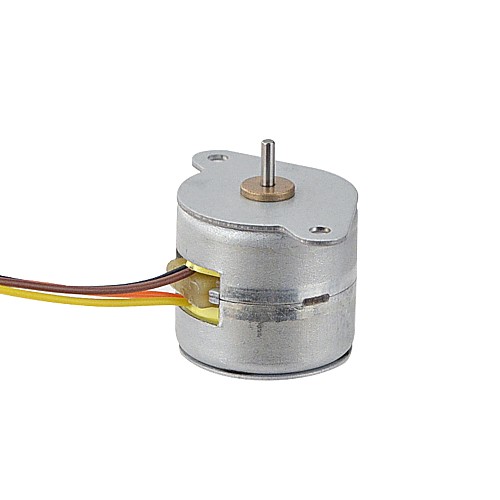

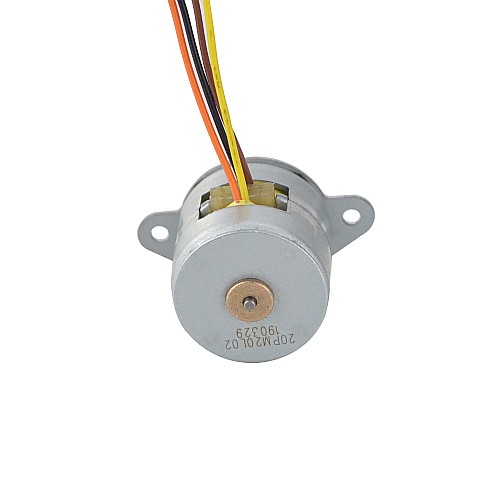

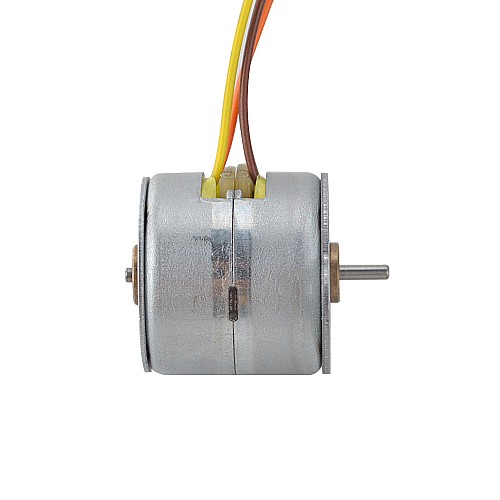

Φ20x18.5mm PM Stepper motor 18deg 12.25mN.m(1.735oz.in) 0.69A 4 Wires

0 reviews - Write a review

C$5.31

5 + C$4.93

10 + C$4.77

50 + C$4.60

100 + C$4.45

In Stock: Pre-order
Model: 20PM20L02
Gross Weight: 0.04kg
Certificated: ISO, CE

Sold: 41

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 50

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Electrical Specification

Manufacturer Part Number: 20PM20L02
Motor Type: PM Stepper
Phase: 2
Step Angle: 18deg
Rated Current/phase: 0.69A
Holding Torque: 12.25mN.m(1.735oz.in)
Detent Torque: 1.98mN.m(0.28oz.in)
Phase Resistance: 17.5±10%ohms(20℃)
Insulation Class: B 130°C[266°F]
Inductance: 10mH±20%
Rotor Inertia: Less than 1.0g.cm²
Life: 3000h MIN(20℃, 100pps)

Physical Specification

Frame Size: Φ20mm
Body Length: 18.5mm
Shaft Diameter: Φ1.5mm
Shaft Length: 6mm
Number of Leads: 4
Lead Length: 60mm
Weight: 22.8g

Connection

A+	A-	B+	B-
Black	Brown	Orange	Yellow

Product Type
Product Type	PM Rotary Stepper Motor
Electrical Specification
Detent Torque(mN.m)	1.98
Detent Torque(oz.in)	0.28
Holding Torque(mN.m)	12.25
Holding Torque(oz.in)	1.735
Inductance(mH)	10
No. of Phase	2
Phase Resistance(ohms)	17.5
Rated Current(A)	0.69
Step Angle(deg.)	18
Physical Specification
Body Length(mm)	18.5
Frame Size(mm)	Φ20
Inventory Method	Dedicated Inventory
IP Rating	30
Lead Length(mm)	60
No. of Lead	4
Shaft Diameter(mm)	1.5
Shaft Length(mm)	6
